Exterior and Mounting Dimensions
n
IP20/Open-Chassis Drives

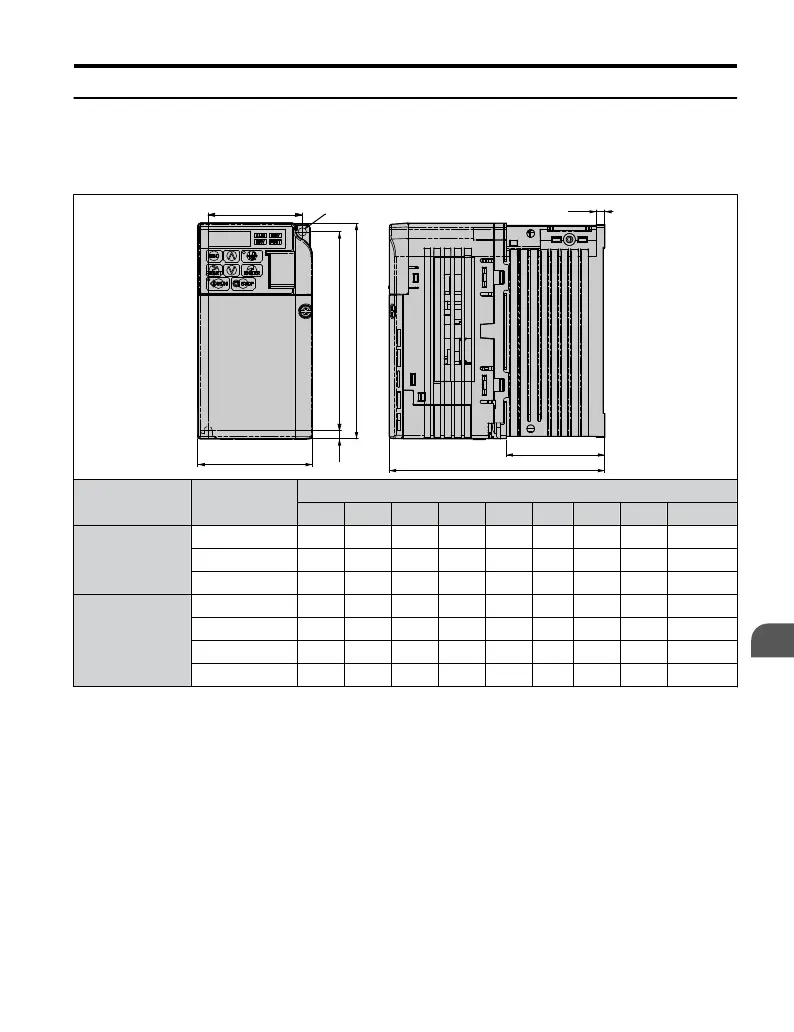

Table 2.2 IP20/Open-Chassis (without an EMC filter)
D1
t1
D
2-M4
W1
H1H2
W
H
Voltage Class
Drive Model
CIMR-Vo
Dimensions (in)
W H D W1 H1 H2 D1 t1 Wt. (lb.)
Single-Phase
200 V Class
BA0001B 2.68 5.04 2.99 2.20 4.65 0.20 0.26 0.12 1.3
BA0002B 2.68 5.04 2.99 2.20 4.65 0.20 0.26 0.12 1.3
BA0003B 2.68 5.04 4.65 2.20 4.65 0.20 1.52 0.20 2.2
Three-Phase
200 V Class
2A0001B 2.68 5.04 2.99 2.20 4.65 0.20 2.26 0.12 1.3
2A0002B 2.68 5.04 2.99 2.20 4.65 0.20 2.26 0.12 1.3
2A0004B 2.68 5.04 4.25 2.20 4.65 0.20 1.52 0.20 2.0
2A0006B 2.68 5.04 5.04 2.20 4.65 0.20 2.30 0.20 2.4
