Multiple Drive Installation
When installing multiple drives into the same enclosure panel, mount the drives according to
Figure 2.2. When mounting drives with a minimum side-by-side clearance of 2 mm according
to Figure 2.3, derating must be considered and parameter L8-35 must be set. Refer to
Parameter List on page 167.
2 mm
A
B
B
C
D
C
A – Line up the tops of the
drives.
B – 30 mm minimum
C – 100 mm minimum
D – Airflow direction

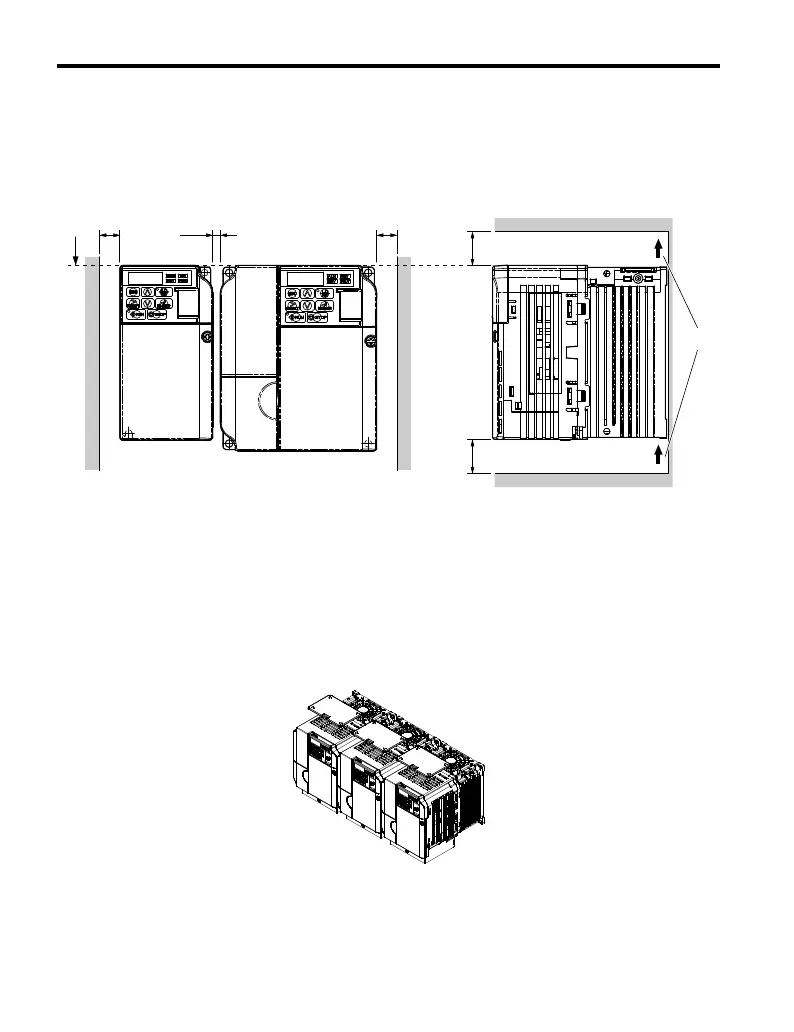

Figure 2.3 Space Between Drives (Side-by-Side Mounting)
Note: When installing drives of different heights in the same enclosure panel, the tops of the drives should line
up. Leave space between the top and bottom of stacked drives for cooling fan replacement if required.
Using this method, it is possible to replace the cooling fans later.
NOTICE: When mounting IP20/NEMA Type 1 enclosure drives side by side, the top covers of all drives must
be removed as shown in Figure 2.4.
Figure 2.4 IP20/NEMA Type 1 Side-by-Side Mounting in Enclosure
2.1 Mechanical Installation
42
YASKAWA ELECTRIC TOEP C710606 47A YASKAWA AC Drive – V1000 Quick Start Guide

YASKAWA V1000 Specifications

General

Input Voltage	3-Phase 200-240VAC, 3-Phase 380-480VAC
Output Voltage	3-Phase 200-240VAC, 3-Phase 380-480VAC
Output Frequency	0-400 Hz
Control Method	V/f control
Overload Capacity	150% for 60 seconds
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit, Ground Fault
Communication Options	Modbus RTU
Ambient Temperature	-10 to +50°C (14 to 122°F)
Storage Temperature	-20°C to +65°C (-4°F to 149°F)
Humidity	95% (non-condensing)
Cooling Method	Forced Air Cooling
Enclosure	IP20
