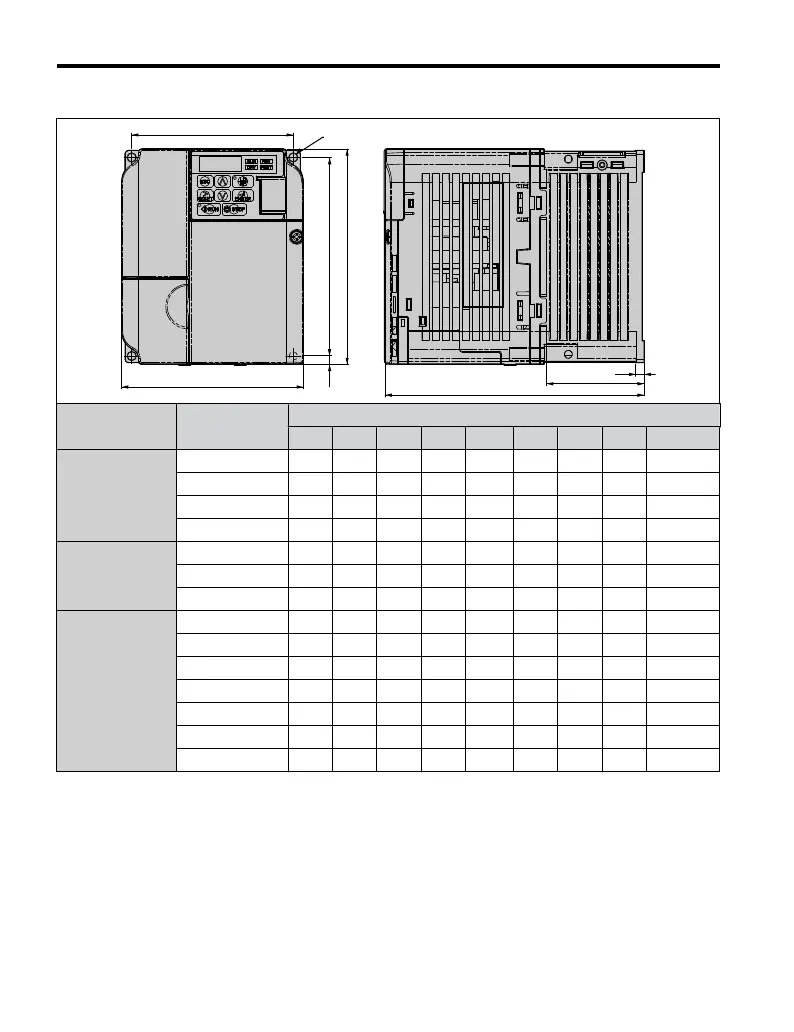

Table 2.3 IP20/Open-Chassis (without an EMC filter)
t1
D
D1
4-M4
H
W1
W
H2 H1
Voltage Class
Drive Model
CIMR-Vo
Dimensions (in)
W H D W1 H1 H2 D1 t1 Wt. (lb.)
Single-Phase
200 V Class
BA0006B 4.25 5.04 5.41 3.78 4.65 0.20 2.28 0.20 3.7
BA0010B 4.25 5.04 6.06 3.78 4.65 0.20 2.28 0.20 4.0
BA0012B 5.51 5.04 6.42 5.04 4.65 0.20 2.56 0.20 5.3
BA0018B 6.69 5.04 7.09 6.22 4.65 0.20 2.56 0.20 6.6
Three-Phase
200 V Class
2A0010B 4.25 5.04 5.08 3.78 4.65 0.20 2.28 0.20 3.7
2A0012B 4.25 5.04 5.41 3.78 4.65 0.20 2.28 0.20 3.7
2A0020B 5.51 5.04 5.63 5.04 4.65 0.20 2.56 0.20 5.3
Three-Phase
400 V Class
4A0001B 4.25 5.04 3.19 3.78 4.65 0.20 0.39 0.20 2.2
4A0002B 4.25 5.04 3.90 3.78 4.65 0.20 1.10 0.20 2.6
4A0004B 4.25 5.04 5.41 3.78 4.65 0.20 2.28 0.20 3.7
4A0005B 4.25 5.04 6.06 3.78 4.65 0.20 2.28 0.20 3.7
4A0007B 4.25 5.04 6.06 3.78 4.65 0.20 2.28 0.20 3.7
4A0009B 4.25 5.04 6.06 3.78 4.65 0.20 2.28 0.20 3.7
4A0011B 5.51 5.04 5.63 5.04 4.65 0.20 2.56 0.20 5.3
2.1 Mechanical Installation
