YASKAWA V1000 - Page 45

n
IP00/Open-Chassis Drives

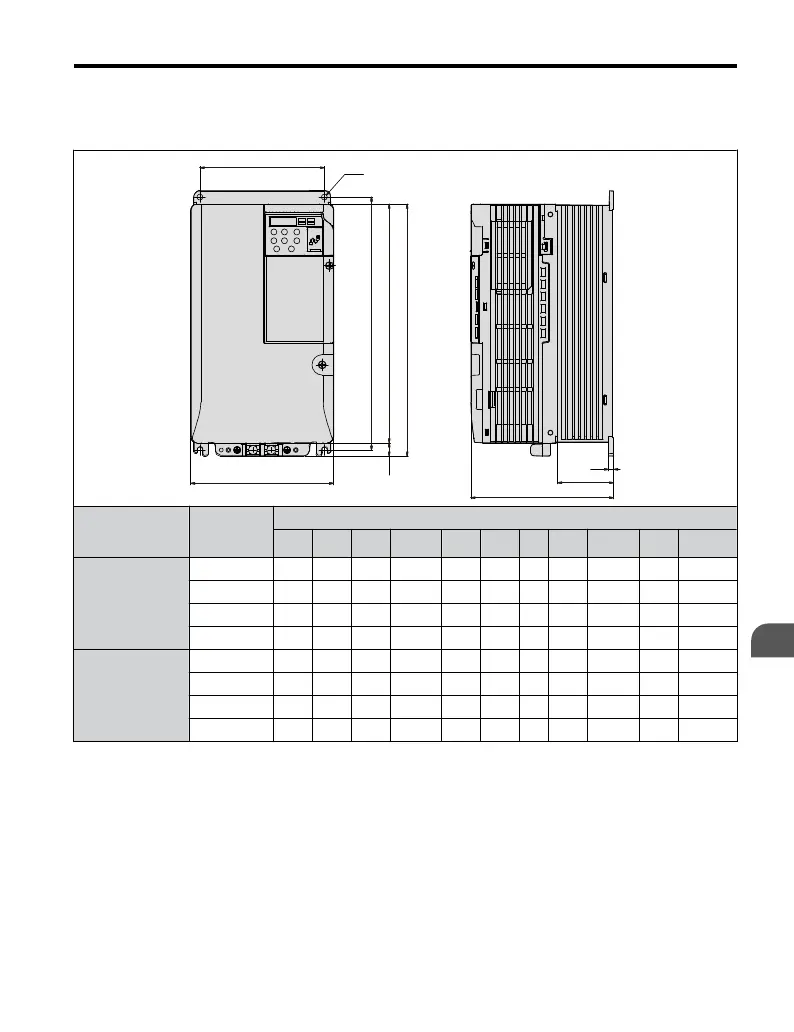

Table 2.4 IP00/Open-Chassis (without an EMC filter)
W1
4-d
H2 H1
H
H4
W
D
D1
t1
Voltage Class
Drive
Model
CIMR-Vo
Dimensions (in)
W H D W1 H1 H2 H4 D1 d t1 Wt. (lb)
Three-Phase
200 V Class
2A0030A 5.5 9.7 5.5 4.8 9.2 9.8 0.5 2.2 M5 0.2 7.9
2A0040A 5.5 9.7 5.5 4.8 9.2 9.8 0.5 2.2 M5 0.2 7.9
2A0056A 7.1 11.2 6.4 6.3 10.6 11.2 0.6 3.0 M5 0.2 11.7
2A0069A 8.7 13.2 7.4 7.6 12.6 13.2 0.6 3.1 M6 0.2 19.2
Three-Phase
400 V Class
4A0018A 5.5 9.7 5.5 4.8 9.2 9.8 0.5 2.2 M5 0.2 7.9
4A0023A 5.5 9.7 5.5 4.8 9.2 9.8 0.5 2.2 M5 0.2 7.9
4A0031A 7.1 11.2 5.6 6.3 10.6 11.2 0.6 2.2 M5 0.2 11.0
4A0038A 7.1 11.2 6.4 6.3 10.6 11.2 0.6 3.0 M5 0.2 11.7
2.1 Mechanical Installation
YASKAWA ELECTRIC TOEP C710606 47A YASKAWA AC Drive – V1000 Quick Start Guide
45
2
Mechanical Installation
