4. PARTSNAMESANDOPERATIONS
4.1 PartsNamesandFunctions
<Detector>
Cell motor
Rotates the indicator
electrode
at a constant speed.
Sample inlet
Drain cock
When loosened, sample
in the measuring tank
drains.
Measuring tank
Counter electrode
(Pt 1000 Ω RTD-built in silver
chloride electrode)
Indicator electrode
(rotating electrode)
Clamp
Holds the counter electrode
Gear head
Terminal block for
Rotating contact
Drive shaft
Driven shaft
The driven shaft is connected to
the indicator electrode by a belt, and
drives it.
The signal from this indicator electrode
passes through commutator and
Rotating contact.
Rotating contact
Ceramic beads
Polish the indicator electrode
to maintain the clean surface
of the indicator electrode
Measuring tank
Fixing screws
Base
Electrode mechanism block cover
prevents the corrosive gas from intruding
into analyzer.
Electrode mechanism
block

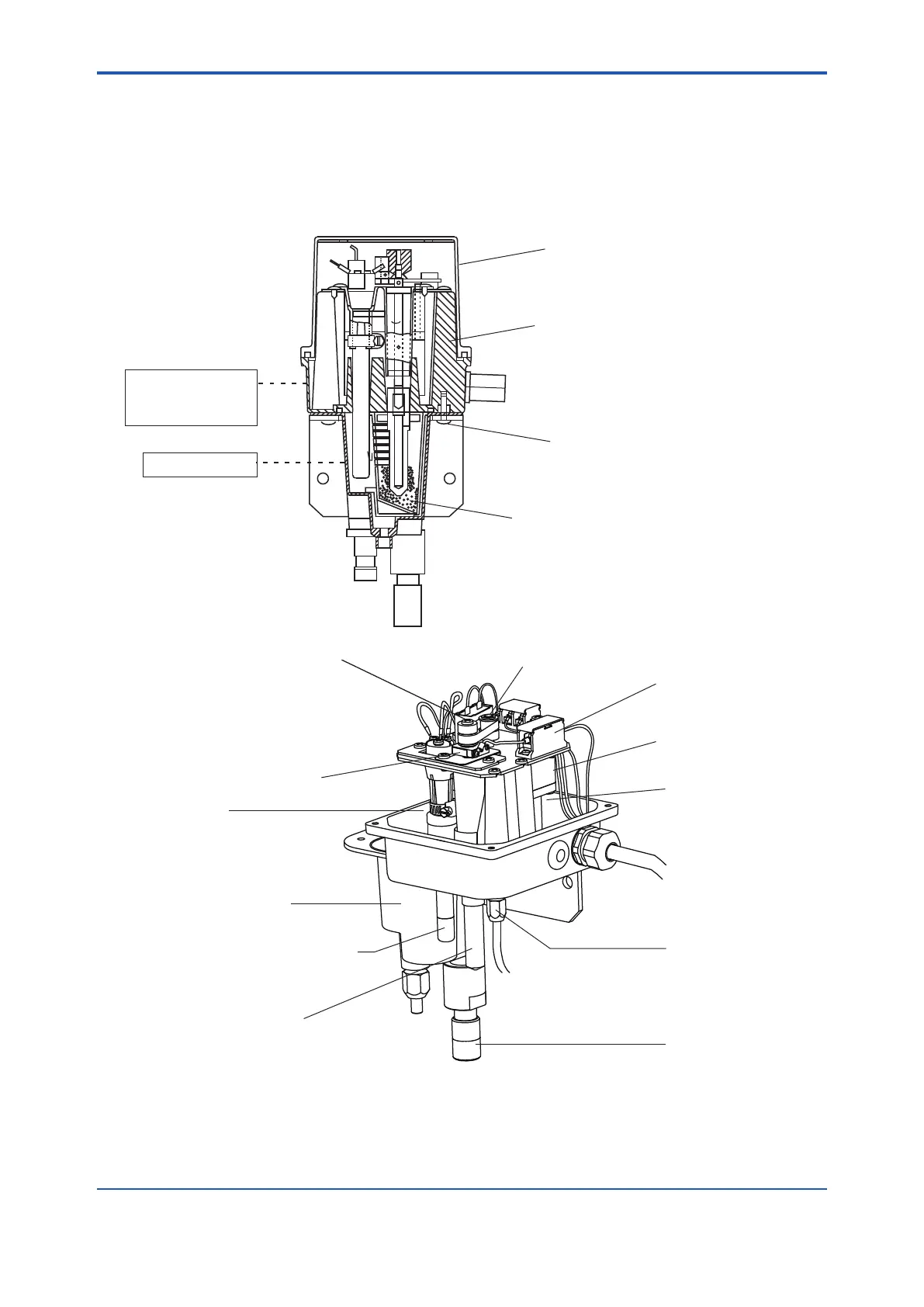

Figure4.1 DetectorPartsNamesandFunctions
