YOKOGAWA FC400G User Manual

2
CMPL 12F05A01-03EN
1st Edition : Apr. 2019 (YK)
11
DETECTOR
12
(4)
13, 14
15
27
26
25
24
23
21, 22
16, 17
18, 19
Motor Assembly
Motor
4
(Capacitor)
1
2
3
9
10
6
7
8
5
20

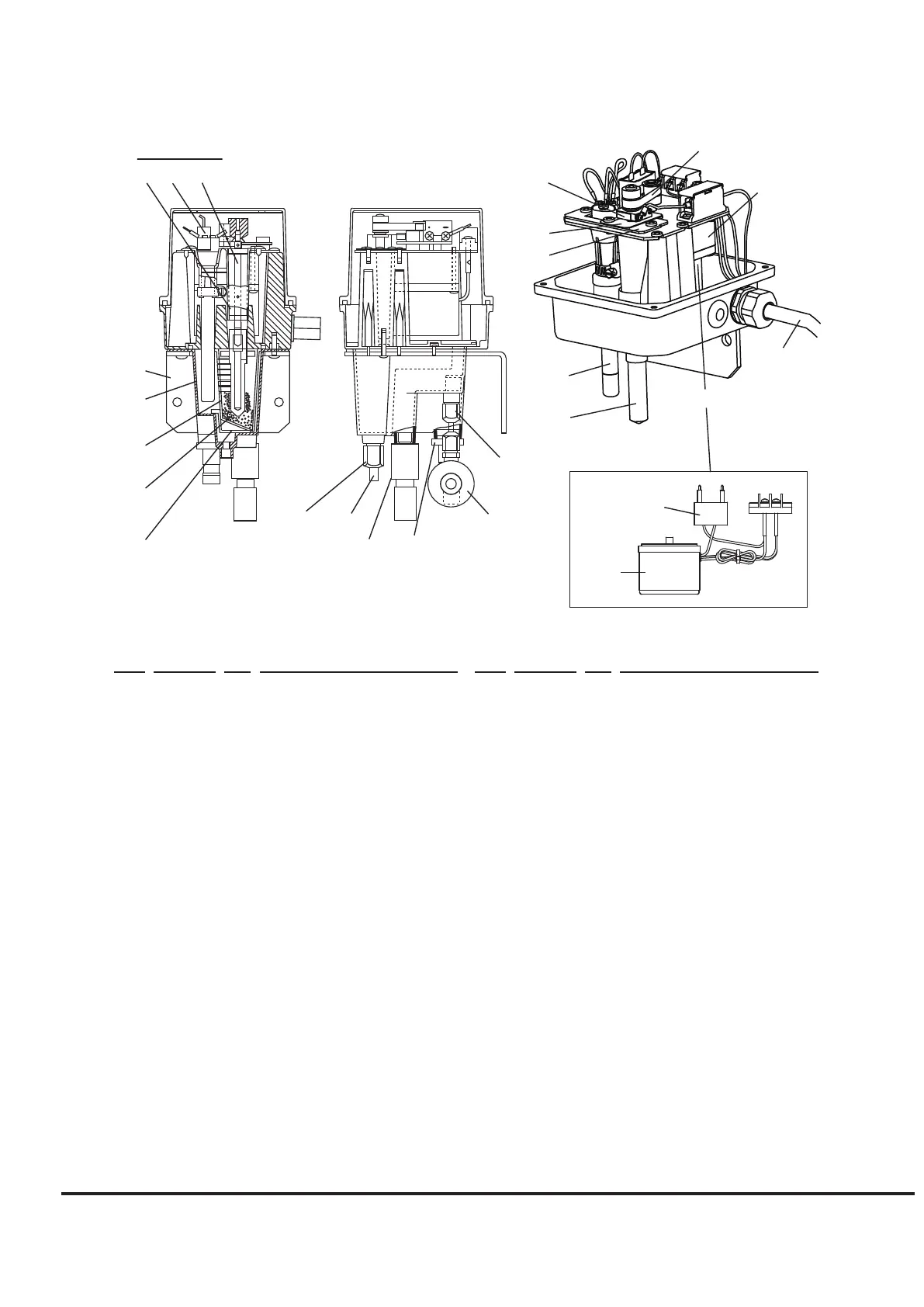

Item Part No. Qty Description Item Part No. Qty Description
1 L9804UK 1 Drive Belt
11 K9334JV 1 Shaft Assembly
2 —— 1 Gear Head 12 Y9115XB 1 O-Ring
K9332JP (For 100/110 V AC power supply) 13 L9831HC 1 Nut
K9334VA (For 200/220 V AC power supply) 14 L9831HE 1 Sleeve
3 —— 1 Motor Assembly 15 L9852CB 1 Valve
K9334JY (For 100 V AC power supply) 16 K9332KQ 1 Nipple
K9334VQ (For 110 V AC power supply) 17 Y9114XB 1 O-Ring
K9334VR (For 200 V AC power supply) 18 K9332KR 1 Cock Assembly
K9334VS (For 220 V AC power supply) 19 Y9110XB 1 O-Ring
4 —— 1 Capacitor 20 K9332KP 1 Insert
K9334LK (For 100 V AC power supply) 21 L9831KL 1 Nut
K9332JS (For 110 V AC power supply) 22 L9831KN 1 Sleeve
K9334LP (For 200/220 V AC power supply) 23 K9332KZ 1 Beads Case Cover
5 K9334KD 1 Cable 24 —— 1 Beads
6 K9332SR 1 Rotating contact K9332ZP (For general type)
7 K9334LW 1 Plate K9332ZJ (For combined chlorine insensitive type)
8 K9334LL 1 Plate 25 K9332KX 1 Beads Case
9 K9332MK 1 Counter Electrode 26 K9332KL 1 Measuring Cell
10 —— 1 Indicator Electrode 27 K9332MS 1 Bracket
K9332MB (For general type)
K9334JP (For combined chlorine insensitive type)
