<2. Screens>
2-10
IM 12A01G01-03EN 1st Edition : Mar. 25, 2021-00
(2)
A
(3)
C D B (1)
(4)

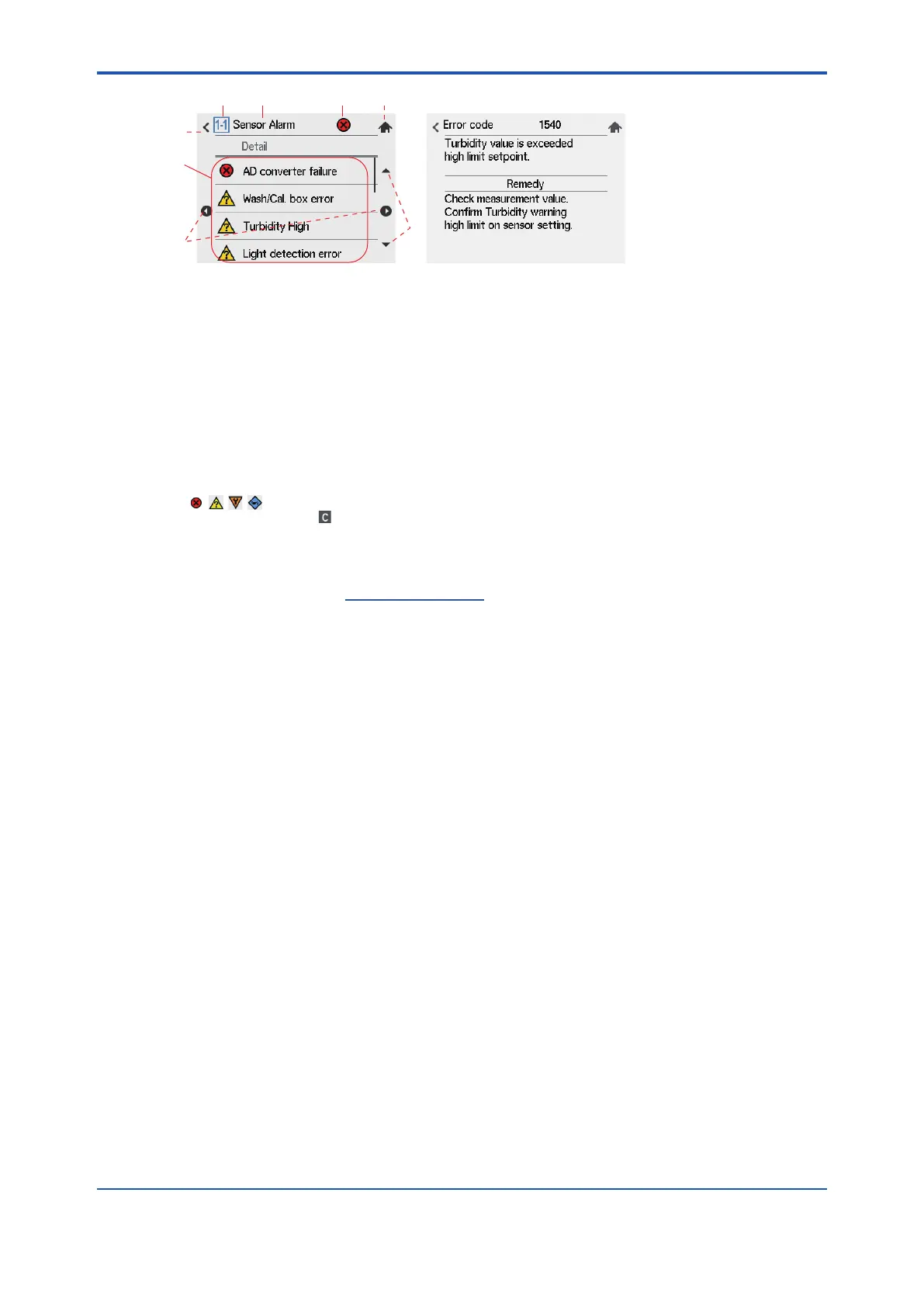

Figure 2.11 Sample of alarms and Remedy
A: Alarms in progress, listed top to bottom in order of seriousness
B: Main alarm (most critical alarm at the moment they happen including sensors’ one)
*1
C: Sensor connection number
*2
D: Title
1: Home (to Home screen)
2: Display switch
*3
3: Return (back to a previous page)
4: Scroll (up/down)
*1 , , , are symbols, appearing from left to right according to the importance of an error.
*2 If a converter is assigned, is displayed.
*3 Page switches in order, from screen of Converter to sensors (1-1 through 2-4). Errors of sensors which are not connected would
not be displayed.
To know error settings see 4.8 Error settings
For the list of errors, read TI 12A01G01-62EN Modbus communication.
