<5. Others (Converter)>
5-17
IM 12A01G01-03EN 1st Edition : Mar. 25, 2021-00
(1) (2) (3)
(4) (5) (6)

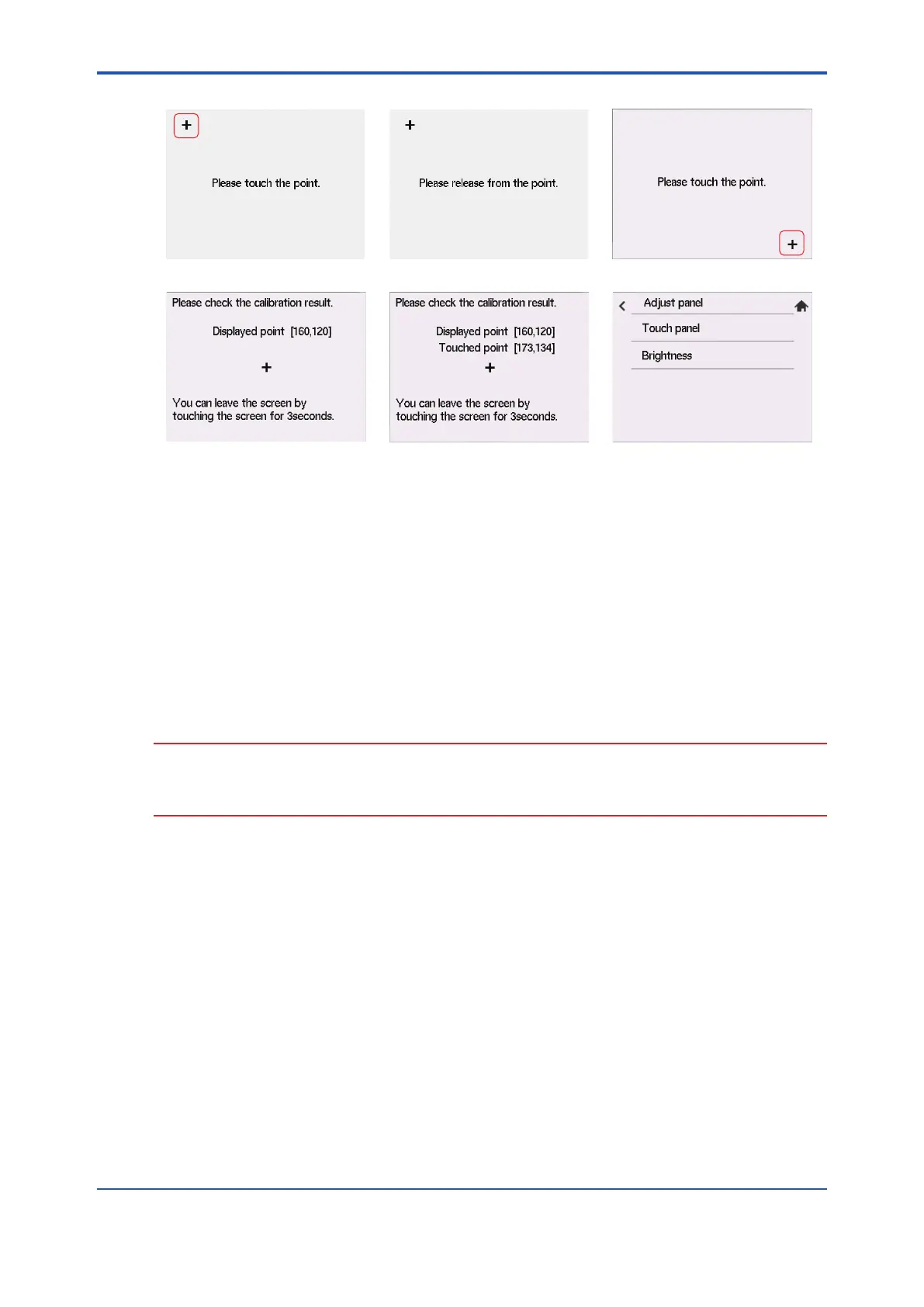

Figure 5.20 Steps of adjusting touch panel
n Brightness
You can adjust the brightness of the screen backlight. Select one out of the following levels. The
default is “50%”. Brightness is measured on a scale from 10 to 100%; the higher the number, the
brighter the screen.
10%, 20%, 30%, 40%, 50%, 60%, 70%, 80%, 90%, 100%
5.7 Service mode
Customers cannot use this mode.
CAUTION
Service mode is protected by password and allowed to be used only by Yokogawa engineers.
Any act including attempting to breaking into the system or data modication may aect the
performance of the product.
To Next Page
