1. Operation
After every wiring is completed, power on the converter. LCD screen rst displays startup screen
, then it transitions automatically “Home screen”.
When single measurement is set to display on a screen, Home screen will be skipped and Main
screen will show up. See chapter 2 to know screens.
or
Home Screen Main Screen

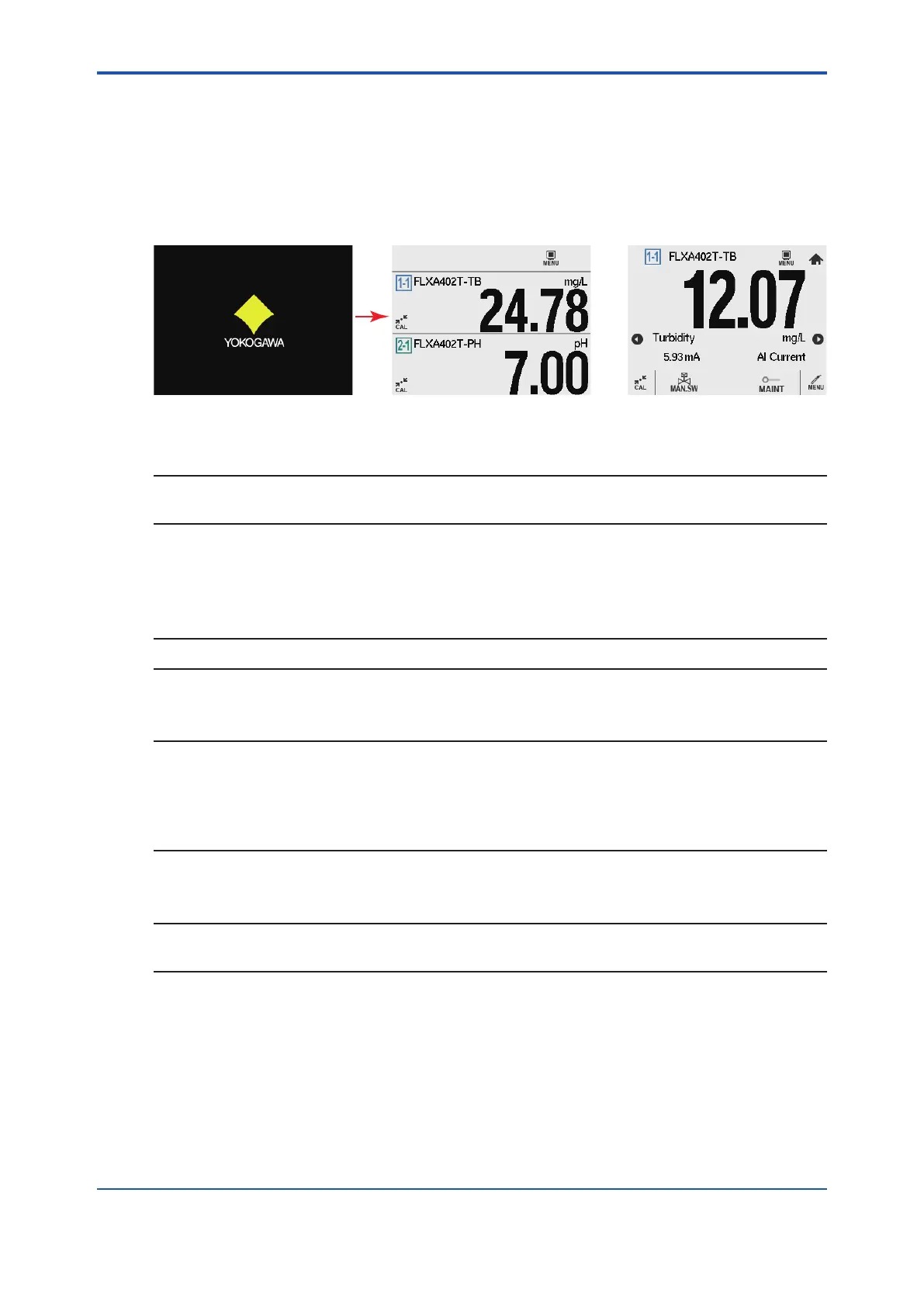

Figure 1.1 Sample image of startup screens
NOTE
It takes more than ten seconds for the startup screen to switch to Home screen after FLXA402T
is powered on.
If any incompatible sensor is connected, an alarm appears to indicate inappropriate setting or
measurement error. To review and modify initial setup, see chapter 4.
NOTE
For several seconds after power is on, 4 mA is output. This does not imply the device has fault.
NOTE
In the beginning of the measurement, you might see the measurement displayed “----”. This
happens because the sensor is preparing for the measurement and not because of fault. Wait
until the sensor is ready.
While the measurement is displayed “----”, mA output follows the order dened in mA output
settings: mA output settings > mA > mA (Congure Hold) > Last or Fixed
NOTE
When there is no touch operation for 10 minutes, the screen automatically switches to Monitor
screen
