3. Converter menu
Go to Home/Main screen> > Converter menu.
There you can go to Detail, Trend, Setting (parameter list).
3.1 3.23.5
3.3 3.4

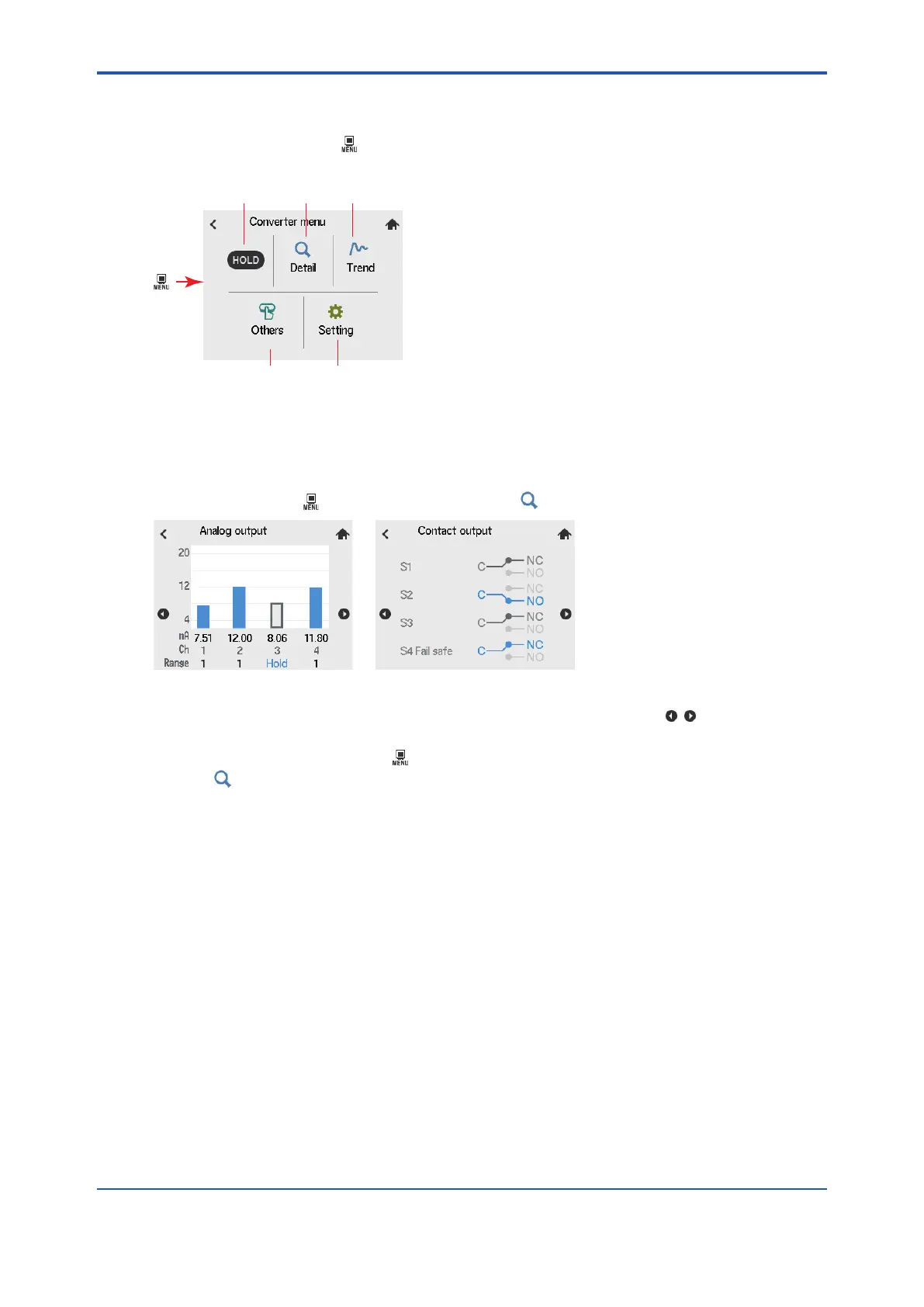

Figure 3.1 Converter menu. Each number corresponds to the section in this manual.
3.1 Detail (Converter)
Home/Main screen > “Menu” > Converter menu > “Detail”.
Figure 3.2 Sample images on Detail
“Detail” (Converter) provides graphic display of various output status. Tap to jump to product
information or logbook.
On Home or Main screen, tapping “Menu” leads you to the converter menu.
Tapping “Detail” leads you to device information including ,Analog input, Analog output,
Contact input, Contact output, serial number, Model code, Revision and others.
If you need to contact our support, inform us of module number labeled on the product, module or
product revision and other information displayed on the detail device information
