4. Converter settings
We recommend that you write down parameters on “User Setting Table” we provide and keep it
for future use.
You can download “User Settings Table” from our website.
http://www.yokogawa.com/an/xa402t/download/
Home/Main > “Menu” > Converter menu > “Setting”> Converter settings
When you go to Converter settings, the converter turns a maintenance status. When auto HOLD
setting is on, mA output becomes HOLD automatically. The contact maintenance turns ON and
other contacts keep the status when the maintenance status begins.
This stays on for 3 seconds after you exit the converter setting screen.
Sec. 4.1
Sec. 4.2
Sec. 4.3
Sec. 4.4
Sec. 4.5
Sec. 4.6
Sec. 4.7
Sec. 4.8
Sec. 4.9

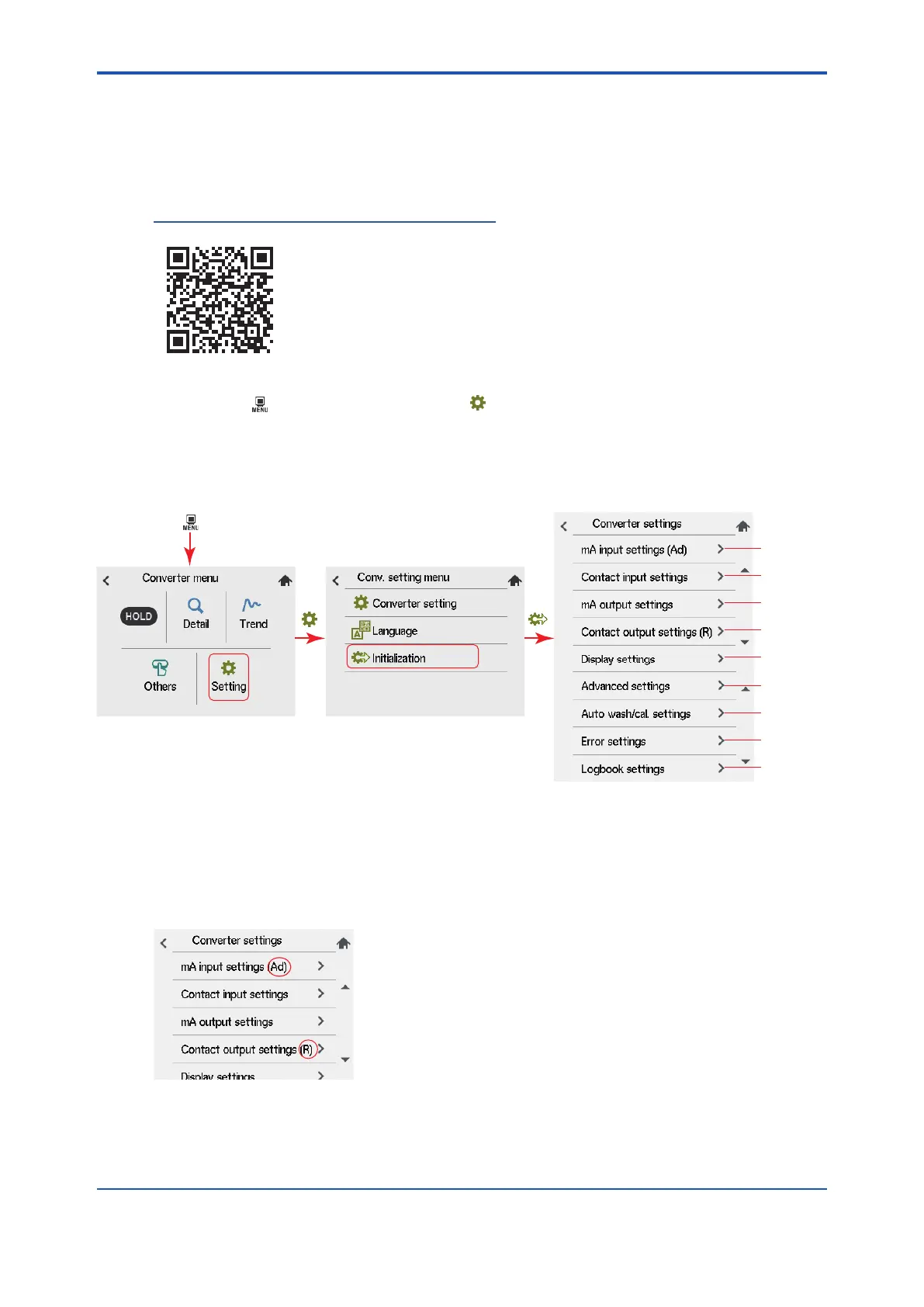

Figure 4.1 Converter settings (sample image)
Refer to corresponding sections and understand the parameter to change a parameter. If you set
wrong parameter, set it back to the previous value or setting and try the conguration again.
Some parameters have symbols on the right side, such as (A). This symbol represents the
application of the parameter. The change of these parameters with the symbols does not aect
the operation if they do not correspond to Model code or application.
Figure 4.2 Parameter with symbols (sample)
