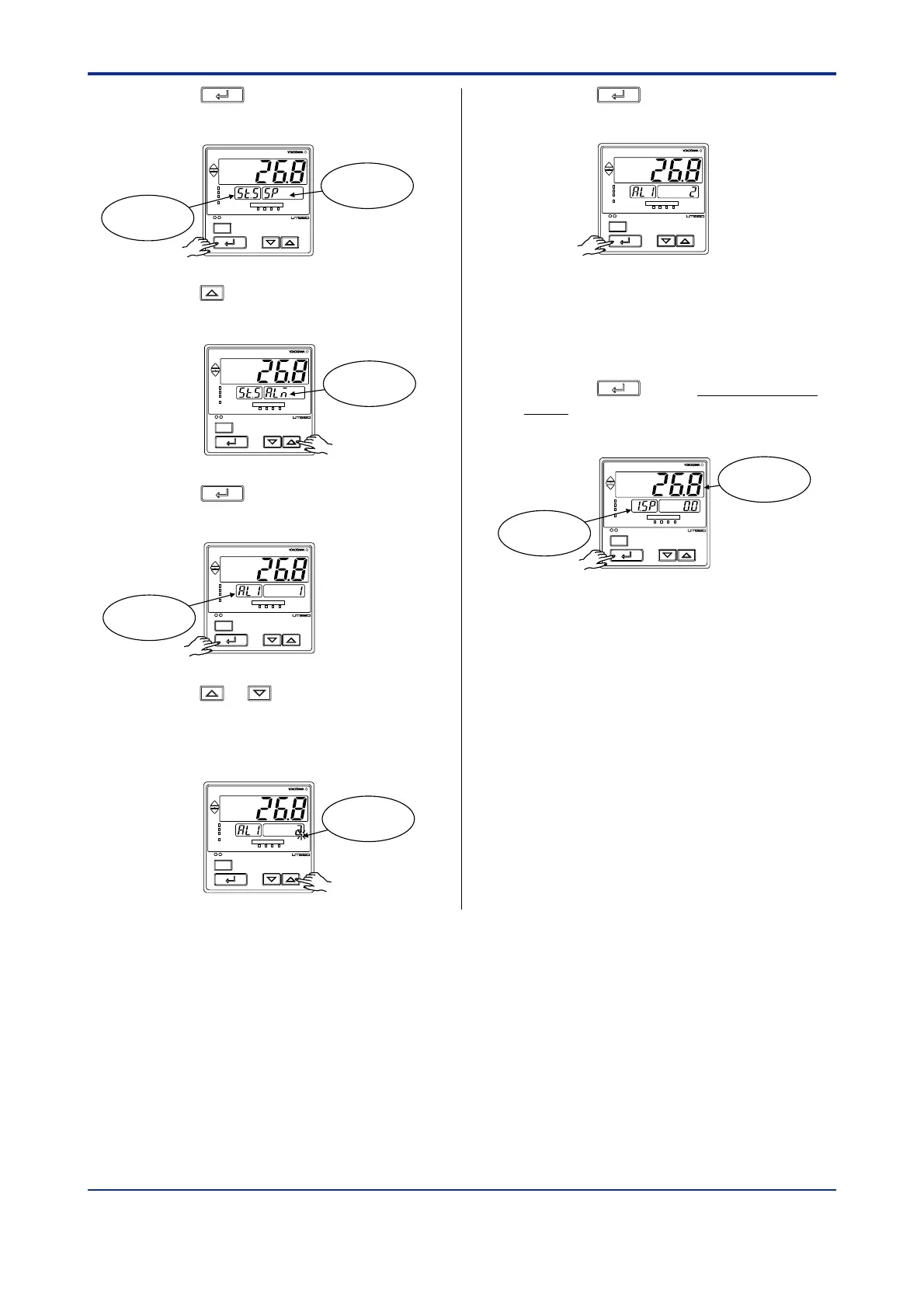

9. Press the
SET/ENT
key once to register the
setpoint.
SET/ENT
A/M
PV
AL1 2 3 4
REM
CAS
MAN
LP2
You can take the same steps for alarm-2
type (AL2), alarm-3 type (AL3), and alarm-4
type (AL4) that are displayed after this.
10. Press the
SET/ENT
key for more than 3 sec-
onds. This returns you to the display
shown at power-on (figure below).
SET/ENT
A/M
PV
AL1 2 3 4
REM
CAS
MAN
LP2
Displays PV
Displays
target setpoint-1
“ 1.SP ” .
11. When setting alarm setpoints, see "3.5
Setting Alarm Setpoints" .
5. Press the
SET/ENT
key once to display the
submenu “SP”.
SET/ENT
A/M
PV
AL1 2 3 4
REM
CAS
MAN
LP2
Displays
submenu “SP”.
Displays
symbol “ST.S”.
6. Press the key once to display the
submenu “ALM”.
SET/ENT
A/M
PV
AL1 2 3 4
REM
CAS
MAN
LP2
Displays
submenu “ALM”.
7. Press the
SET/ENT
key once to display the
parameter “AL1” (alarm-1 type).
SET/ENT
A/M
PV
AL1 2 3 4
REM
CAS
MAN
LP2
Displays
parameter “AL1”.
8. Press the or key to display the
required setpoint. The figure below shows
an example of setting the PV low limit
alarm.
SET/ENT
A/M
PV
AL1 2 3 4
REM
CAS
MAN
LP2
Blinks during
change.
