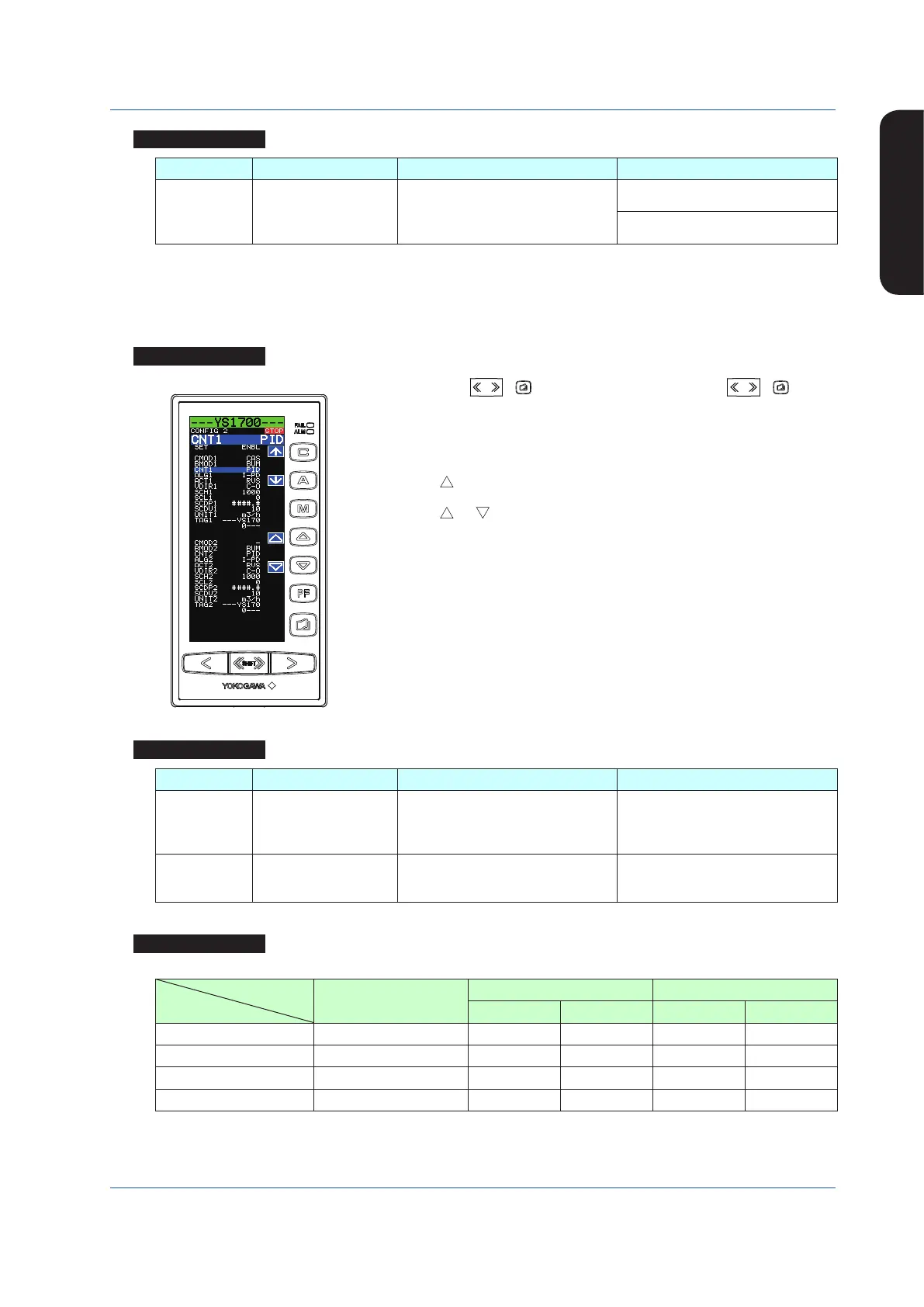

37
IM 01B08B02-01EN
Operating the Engineering
Displays
Operating the Engineering Displays
Setting Details
Parameters Names Setting Range Factory Default
CTL Controller mode selection
PROG: Programmable mode (*1)
SINGLE: Single-loop mode
CAS: Cascade mode
SELECT: Selector mode
For YS1700: PROG
For YS1500: SINGLE
*1: Only selectable for YS1700
► Forprogrammablemode:seeYSS1000SettingSoftware/YS1700ProgrammableFunctionUser’sManual.
► Forsingle-loopmode,cascademode,andselectormode:see1.1,SelectingtheControllerMode,intheYS1500IndicatingController/YS1700
Programmable Indicating Controller User’s Manual.
Setting the Control Type and Control Operation Formula
Setting Display
Engineering Display
0702E.ai
Operation Display >
SHIFT
+ keys (to the Tuning Menu Display) >
SHIFT
+ keys (to
the Engineering Menu Display) > [CONFIG2] software key (Configuration Display 2)
Setpoint changing procedure (example of changing control type):
(1) Pressthe[↓]softwarekeytoselectandzoominon[SETINHB].
(2) Press the [ ] software key to change to [SET ENBL].
(3) Pressthe[↓]softwarekeytoselectandzoominoncontroltype1[CNT1PID].
(4) Press the [ ] or [ ] software key to change the setpoint.
(5) Press the Page key to return to the Engineering Menu Display.
(6) Press the SHIFT + Page keys to return to the Operation Display.
A control operation formula can also be changed in the same way as above.
This completes the setting procedure.
Setting Details
Parameters Names Setting Range Factory Default
CNT1, CNT2 Control type
PID: Standard PID control
S-PI: Sample-and-hold PI control
BATCH: Batch PID control (*1)
PD: Proportional (PD) control
PID
ALG1, ALG2 Control operation formula
I-PD: PV proportional type PID
PI-D: PV derivative type PID
SVF: Adjustable setpoint filter
I-PD
*1: Only selectable for YS1700
Description
The CNT2 and ALG2 parameters are used in the loop 2 in the cascade mode, selector mode, and programmable mode.
Single-loopMode
Cascade Mode Selector Mode
Loop 1 Loop 2 Loop 1 Loop 2
Standard PID control
    
Proportional(PD)control

– – – –
Sample-and-hold PI control
  
– –
Batch PID control

– – – –
Legend : Available, –: Not available
► ForstandardPIDcontrol,proportionalcontrol,sample-and-holdPIcontrol,andbatchPIDcontrol:see1.2,SelectingtheControlMethod(Select-
ing Control Type CNT and Control Operation Formula ALG, in the YS1500 Indicating Controller/YS1700 Programmable Indicating Controller
User’s Manual.
