YOKOGAWA YS1000 Series User Manual

5
IM 01B08B02-01EN

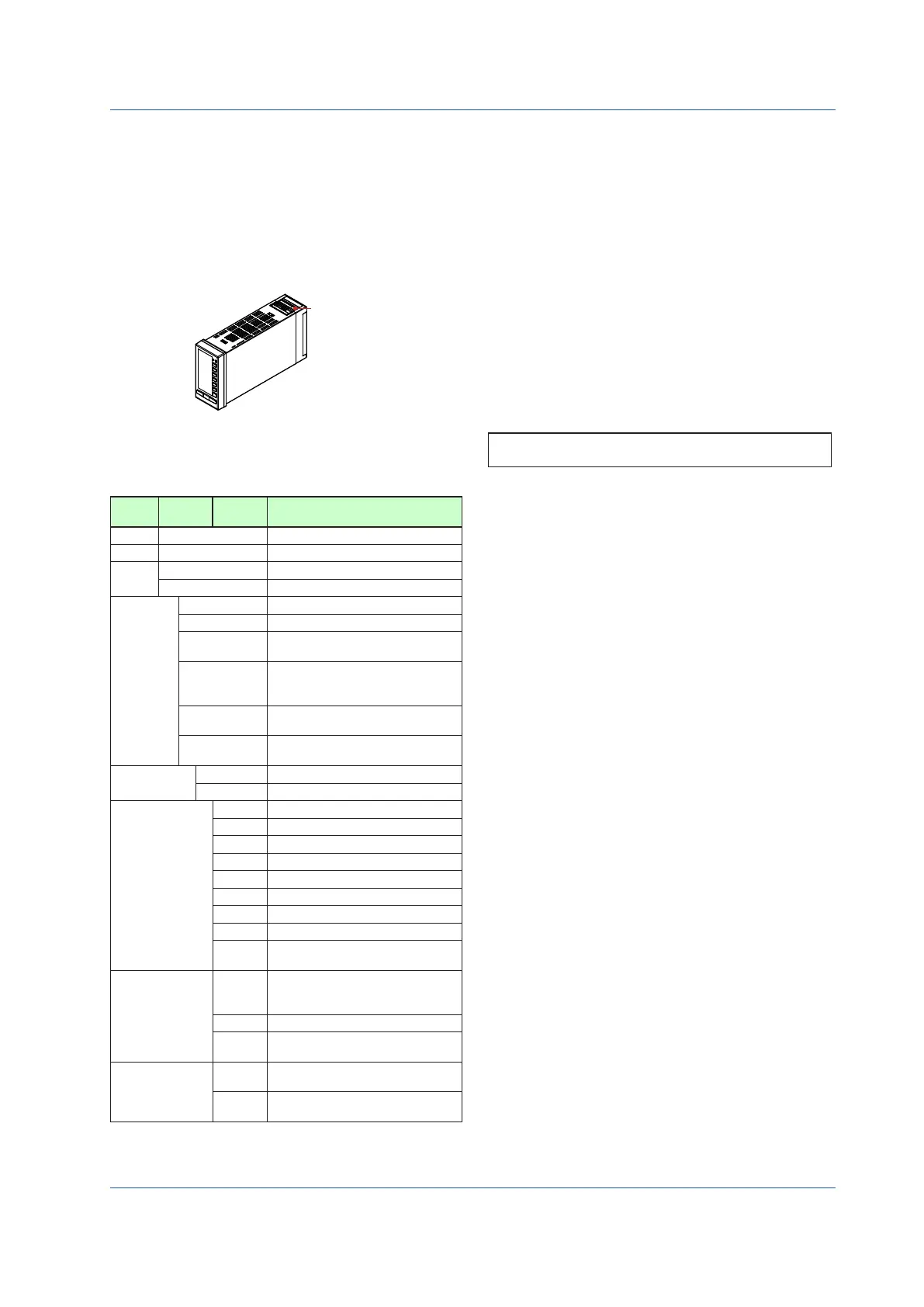

Checking the Contents of the Package
Unpack the box and check the contents before using the product. If
theproductisdi󰀨erentfromthatwhichyouhaveordered,ifanyparts
or accessories are missing, or if the product appears to be damaged,
contact your sales representative.
YS1500/YS1700 Main Unit
TheYS1000seriesmainunitshavenameplatesa󰀩xedtothetopsof
the terminals.
Check the model and suffix codes inscribed on the nameplate to
conrmthattheproductreceivedisthatwhichwasordered.
0001E.ai
Nameplate
No. (Instrument number)
When contacting your sales representative, inform them of this
number too.
 ModelandSu󰀩xCodes
Model
Suffix
Code
Optional
Code
Remarks
YS1700
Programmable indicating controller
YS1500
Indicating controller
Use
-1
With hard manual unit
-2
Without hard manual unit
Type
0
Basic type
1
Basic type with expandable I/O (*1)
2
Compatible type for YS100 (with
YS100 case)
3
Compatible type for YS80 internal unit/
compatible type for EBS, I, EK, and
HOMAC (*2)
4
Compatible type for YS80 (compatible
size for YS80 with YS100 terminal)
5
Compatible type for pneumatic 100
line (with YS100 terminal) (*3)
Power supply
0
100 V AC, 24 V DC common power
1
220 V AC power
Direct input (*4)
/A01
mV input
/A02
Thermocouple input
/A03
RTD input
/A04
Potentiometer input
/A05
Isolator
/A06
Two-wire transmitter input (isolated)
/A07
Two-wire transmitter input (non-isolated)
/A08
Frequency input (*11)
/DF
Direct input with Fahrenheit
temperature range function (*5)
Communication
/A31
RS-485 communication (PC-link,
Modbus, YS protocol, and Peer-to-
Peer) (*6)
/A32
DCS-LCS communication (*7)
/A34
Ethernet communication (Modbus/
TCP) (*8)
Certification
/FM
FM nonincendive approved (FM Class
I, Div 2) (*9)
/CSA
CSA safety and nonincendive
approved (Class I, DIV 2) (*10)
*1
Only YS1700 is compatible. The expandable I/O terminal (model YS010)
and expandable I/O cable (model YS011) (cable length: 3 m) are provided.
*2 This type can be connected to the YS80 housing (model SHUP).
(The EK/HOMAC-compatible housing (SHUP-420) and EBS/I
series-compatible housing (SHUP-100) are sold separately.)
*3
The 100 line-compatible housing (model YS006) is sold separately.
*4 Direct input options can be combined only with suffix codes “-

2

,”
“-

4

,” or “-

5

.” Selection of multiple options is not possible.
*5
Optional code /DF can be combined only with optional code /A02 or /A03.
*6 A combination with suffix code “-

3

” is not possible. Optional
codes /A31 and /A32 cannot be simultaneously specified. Please
specify the communication options /A31 (RS-485 communication)
to directly communicate with the CENTUM CS3000/VP.
*7 Optional codes /A31 and /A32 cannot be simultaneously
specified. Please specify the communication options /A32 (DCS-
LCS communication) to communicate with the CENTUM CS3000/
VP through the SCIU.
*8
Optional code /A34 can be specified only for suffix codes “-

0

” or “-

1

.”
*9 Optional code /FM can be combined only with suffix codes “-

0

” or “-

1

.”
*10 This option can be combined only with suffix codes “-

0

,”
“-

1

,” “-

2

.” However, certification is planned for the
combination of suffix code -

2

and optional code /CSA.
*11 When option code /A08 is specified, the conformity to CE marking
is excluded
For the installation and wiring of YS1500/YS1700-

2

, -

3

,
-

4

, or -

5

, see the YS1000 Series Replacement Manual.
■CustomizedProduct
 /S#,/Z:Customizedproduct;detailsinFX1-XJYS1700.xxx*
* Contact your supplier in case your instrument has option /S#
(where‘#’isanumber),andyouarenotinthepossessionofFX1-
XJYS1700.xxx.(where"xxx"isauniquedocumentnumberand
option/S#or/Zisidentiedbythecoverpageofthatdocument.)
