4 - 4 EA3600 Network Connect Product Reference Guide
5. Select the General tree entry in the Properties tab and set the name to use to reference the module in the S7
program. The name defaults to ea3600 but can be changed to any valid name that makes sense for the
application.

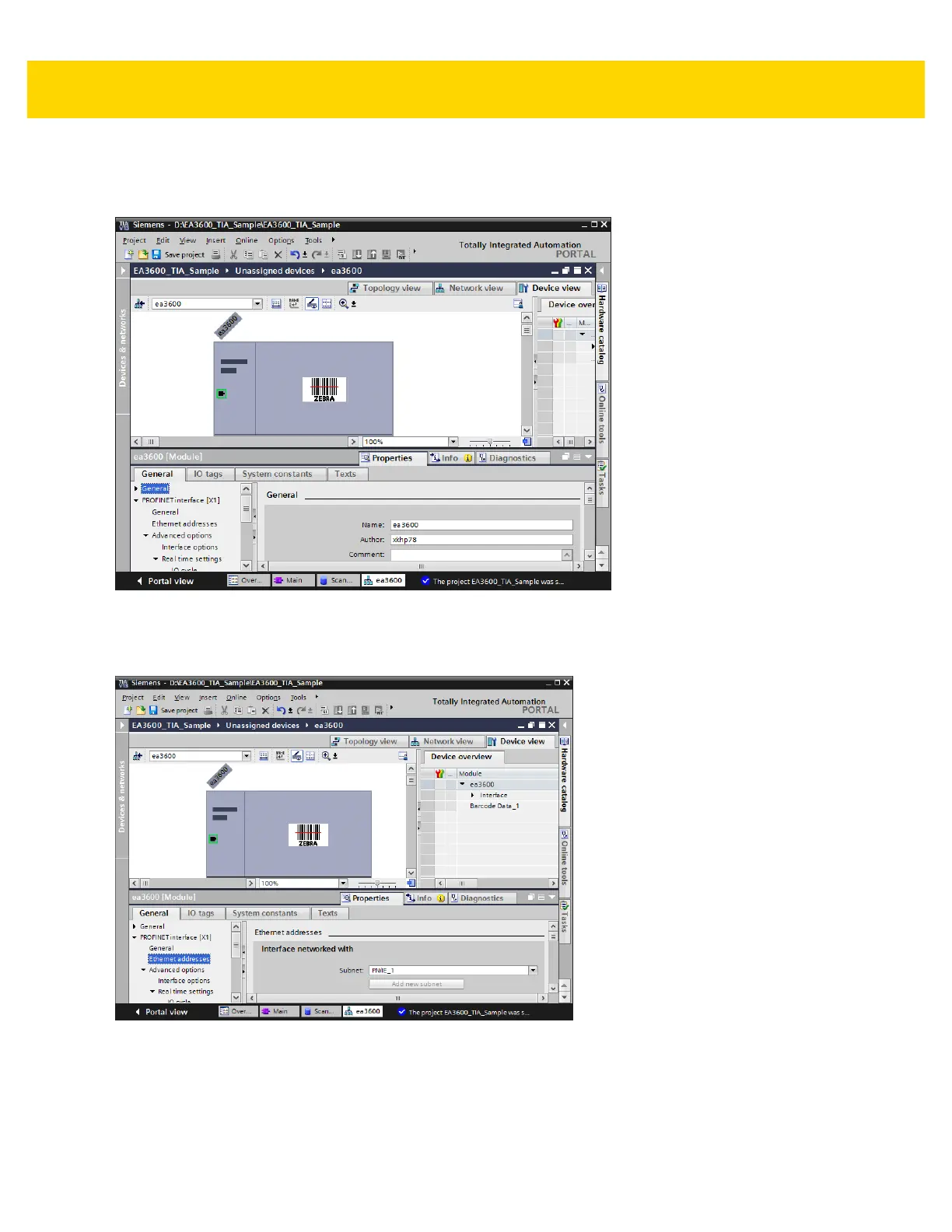

Figure 4-3 EA3600 Properties, General
6. Select the PROFINET Interface tree entry in the Properties tab and set the Subnet to the PROFINET network
by selecting it in the drop-down box. In the example the network is named PN/IE_1.
Figure 4-4 EA3600 Properties, PROFINET
