Data Capture 5 - 7

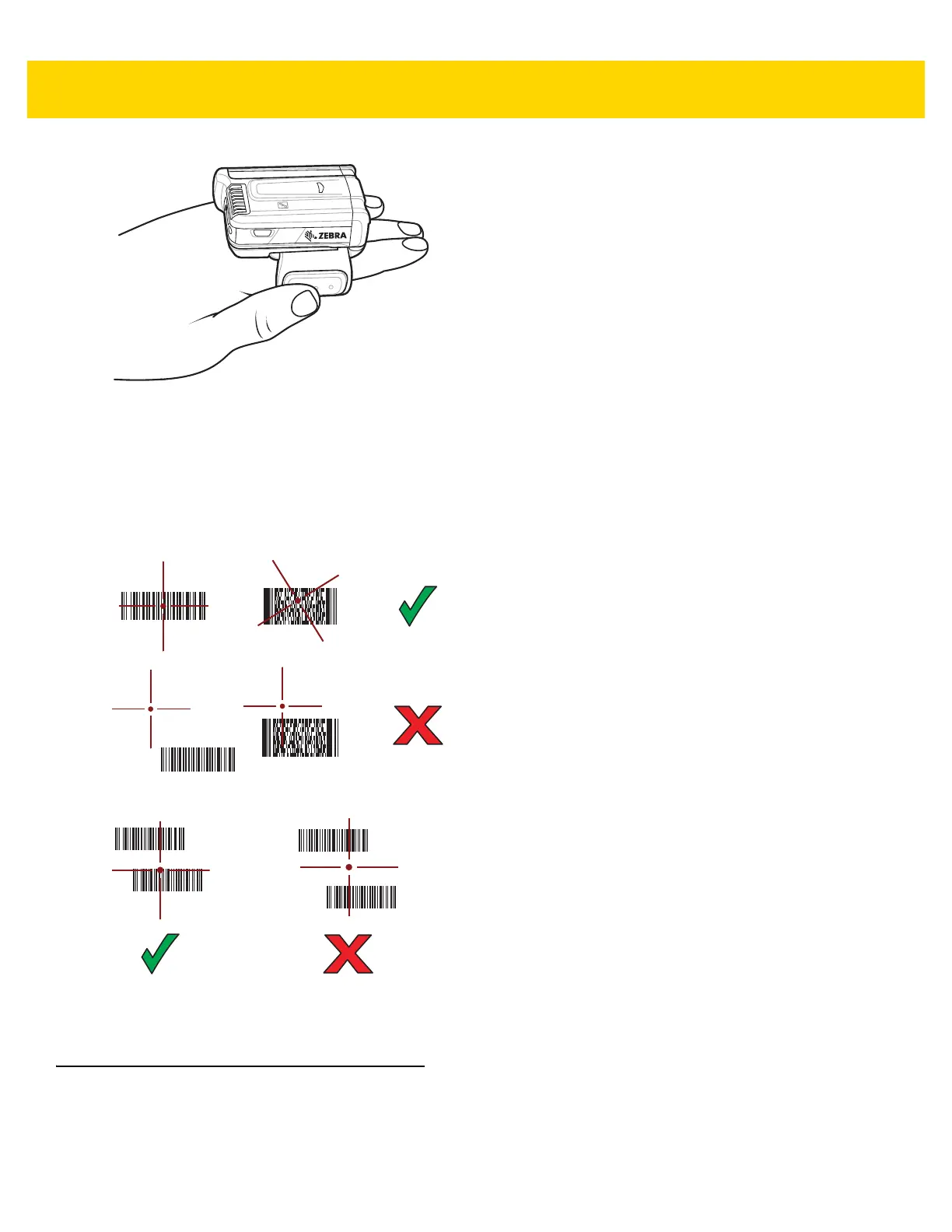

Figure 5-10 Bar Code Scanning with RS6000
3. Press and hold the trigger.
The red laser aiming pattern turns on to assist in aiming. Ensure the bar code is within the area formed by the
cross-hairs in the aiming pattern. The aiming dot is used for increased visibility in bright lighting conditions.
The RS6000 LEDs light green, a beep sounds to indicate the bar code was decoded successfully. Note that
when the RS6000 is in Pick List Mode, the RS6000 does not decode the bar code until the center of the
crosshair touches the bar code.
Figure 5-11 RS6000 Aiming Pattern
Figure 5-12 RS6000 Pick List Mode with Multiple Bar Codes in Aiming Pattern
4. The captured data appears in the text field.
Bar Code Capture with DS3678 Bluetooth Scanner
Pair the DS3678 with the TC70x/TC75x. See Pairing the DS3678 Digital Scanner on page 5-12 for more
information.
