Zebra TC70x User Manual

2 - 10 TC70x/TC75x User Guide for Android Version 6.0.1

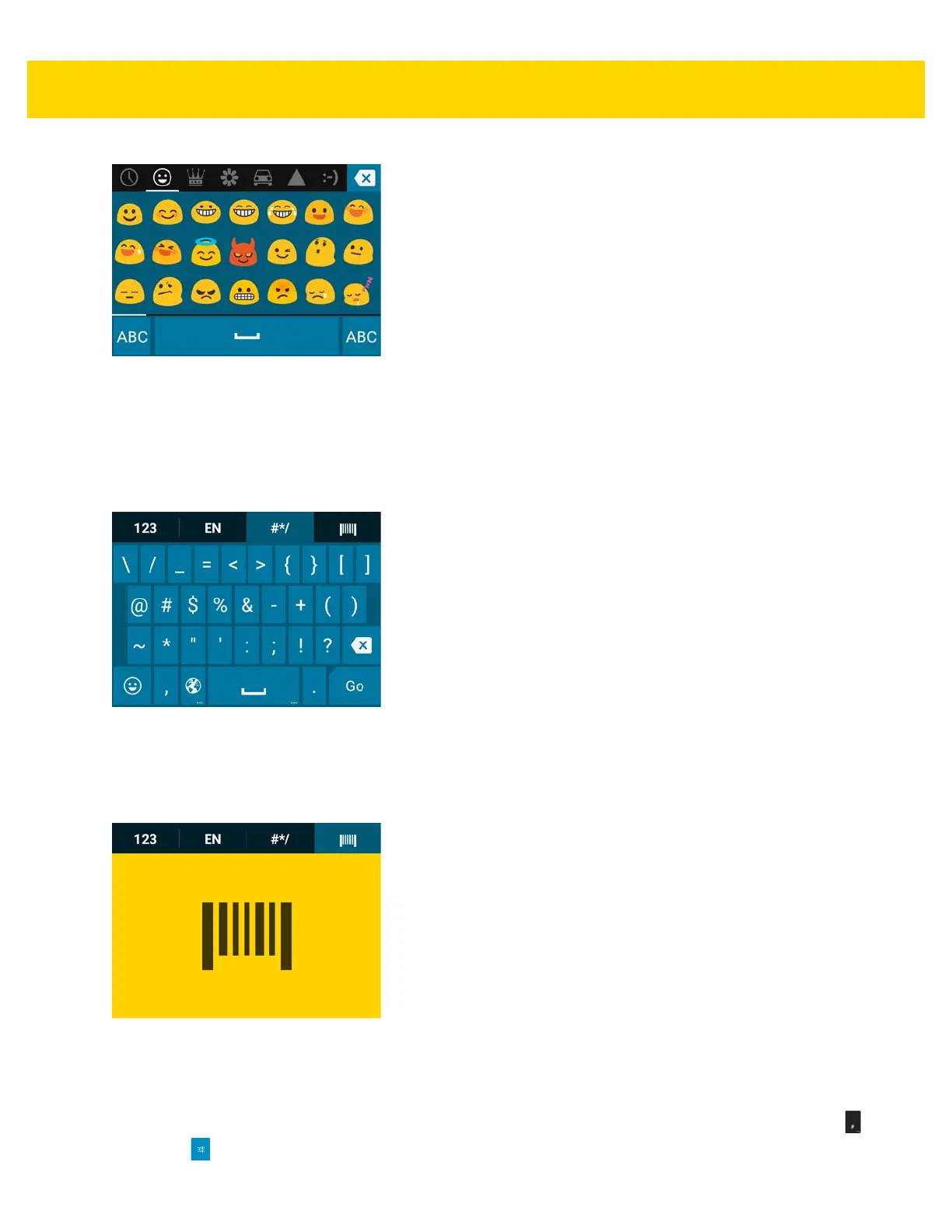

Figure 2-9 Emoji Keyboard
Touch ABC to return to the Alpha keyboard.
Additional Character Tab
To access additional characters, touch the #*/ tab.
Figure 2-10 Symbols Keyboard
Scan Tab
The Scan tab provides an easy data capture feature for scanning bar codes.
Figure 2-11 Scan Keyboard
Using the Android Keyboard
Use the on-screen keyboard to enter text in a text field. To configure the keyboard settings, touch and hold
(comma) > and then select Android keyboard settings.

Zebra TC70x Specifications

General

Flash memory	32 GB
Internal memory	4 GB
Internal memory type	-
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	128 GB
Display diagonal	4.7 \
Touch technology	Multi-touch
Touchscreen type	Capacitive
Display resolution	1280 x 720 pixels
Headphone outputs	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	5 - 85 %
Battery voltage	3.7 V
Battery capacity	4620 mAh
Number of cores	6
Processor model	650
Processor family	Snapdragon
Processor frequency	1.8 GHz
Processor manufacturer	Qualcomm
Operating system installed	Android
Product color	Black
Linear (1D) barcodes supported	Code 39
International Protection (IP) code	IP67
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth version	4.1
Rear camera resolution (numeric)	13 MP
Speakers	Mono

Weight and Dimensions

Depth	28 mm
Width	84 mm
Height	161 mm
Weight	376 g
