1 - 2 TC70x/TC75x User Guide for Android Version 6.0.1
Features

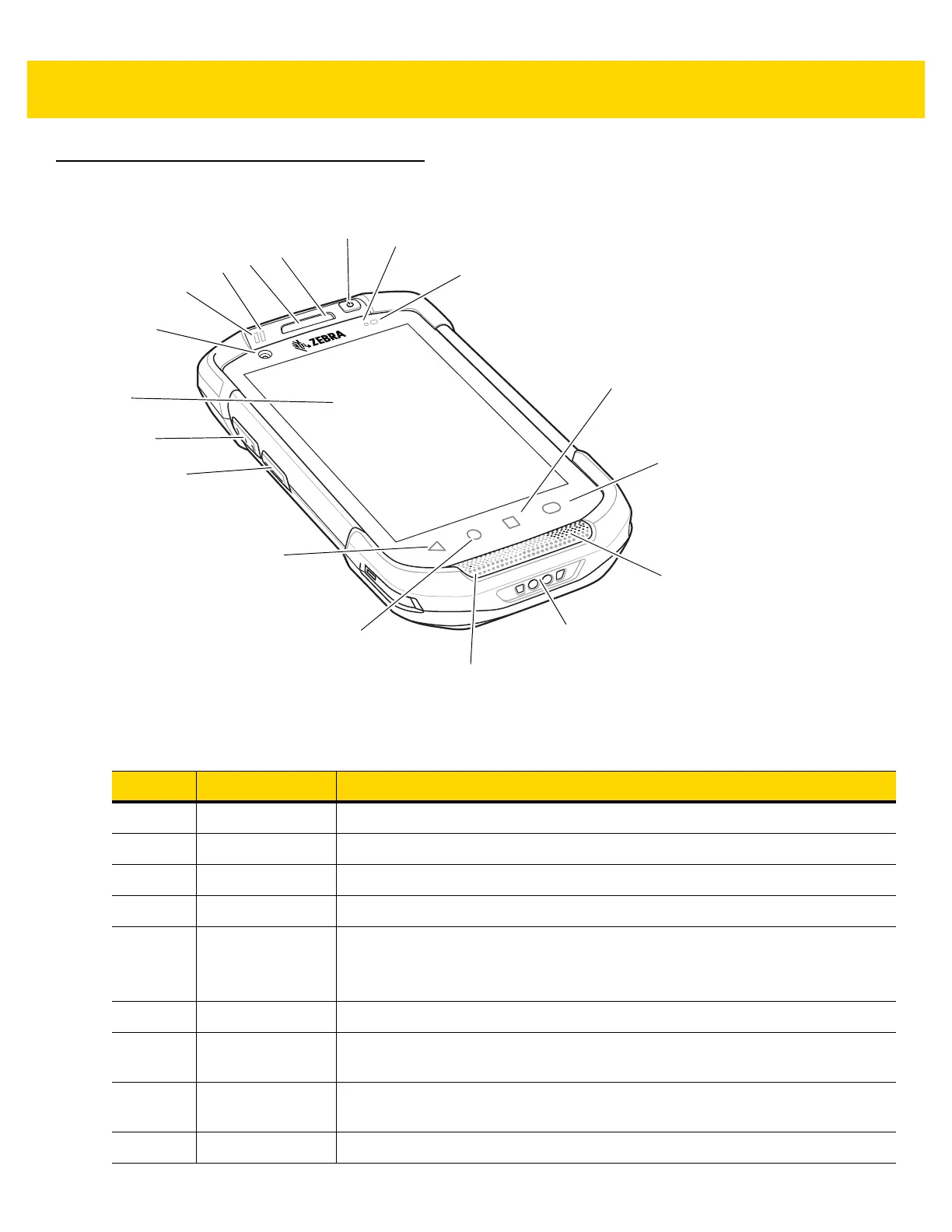

Figure 1-1 Front View
Table 1-1 Front View Features
Number Item Function
1 Touch Screen Displays all information needed to operate the device.
2 Scan Button Initiates data capture (programmable).
3 PTT Button Initiates push-to-talk communications (programmable).
4 Back Button Displays the previous screen.
5 Home Button Displays the Home screen with a single press.
On TC70x/TC75x with GMS, opens the Google Now screen when held for a
short period of time.
6 Microphone Use for communications in Handset mode.
7 Charging
Contacts
Provides power to the device from cables and cradles.
8 Speaker Provides audio output for video and music playback. Provides audio in
speakerphone mode.
9 Search Button Opens the Recent App screen.
1
2
3
4
5
6
7
8
18
17
9
10
11
12
13
14
15
16
