Zebra TC70x User Manual

7 - 48 TC75x User Guide for Android Version 6.0.1
USB I/O Hub
The USB I/O Hub:
• provides power to a vehicle cradle
• provides USB hub for three USB devices (such as printers)
• provides a powered USB port for charging another device.
The cradle is powered by the vehicle’s 12V or 24V electrical system. The operating voltage range is 9V to 32V and
supplies a maximum current of 3Ato the vehicle cradle and 1.5 A to the four USB ports simultaneously.
Refer to the TC70x/TC75x Integrator Guide for Android Version 6.0.1 for information on installing the USB I/O Hub.

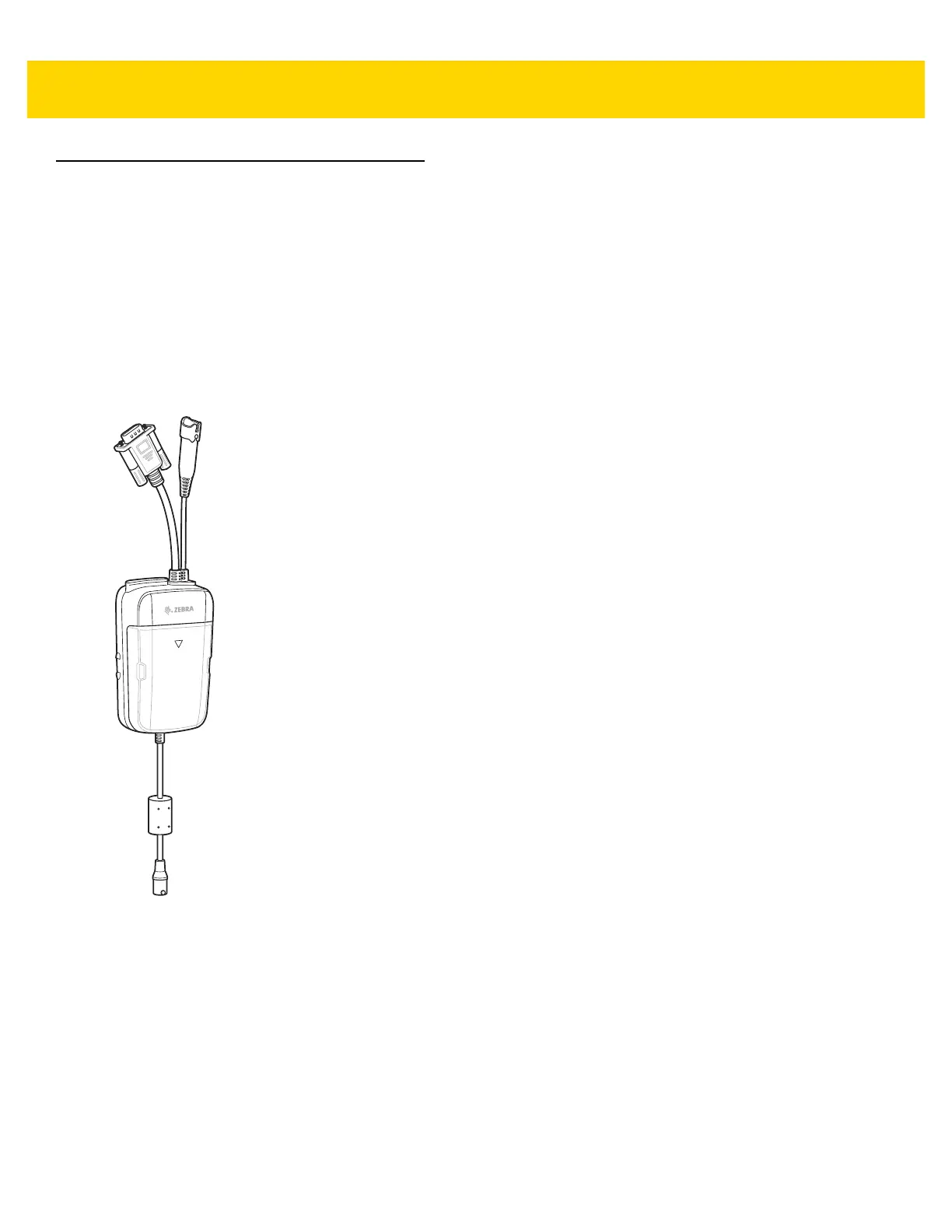

Figure 7-53 USB I/O Hub
Connect USB Cables
The USB I/O Hub provides three USB ports for connecting devices such as printers to a device in the vehicle
cradle. To connect USB cables:
1. Slide the cable cover down and remove.

Zebra TC70x Specifications

General

Flash memory	32 GB
Internal memory	4 GB
Internal memory type	-
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	128 GB
Display diagonal	4.7 \
Touch technology	Multi-touch
Touchscreen type	Capacitive
Display resolution	1280 x 720 pixels
Headphone outputs	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	5 - 85 %
Battery voltage	3.7 V
Battery capacity	4620 mAh
Number of cores	6
Processor model	650
Processor family	Snapdragon
Processor frequency	1.8 GHz
Processor manufacturer	Qualcomm
Operating system installed	Android
Product color	Black
Linear (1D) barcodes supported	Code 39
International Protection (IP) code	IP67
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth version	4.1
Rear camera resolution (numeric)	13 MP
Speakers	Mono

Weight and Dimensions

Depth	28 mm
Width	84 mm
Height	161 mm
Weight	376 g
