Zebra TC70x User Manual

Calls 3 - 13
Answering Calls
When you receive a phone call, the Incoming Call screen displays, displaying the caller ID and any additional
information about the caller that is in the Contacts application.

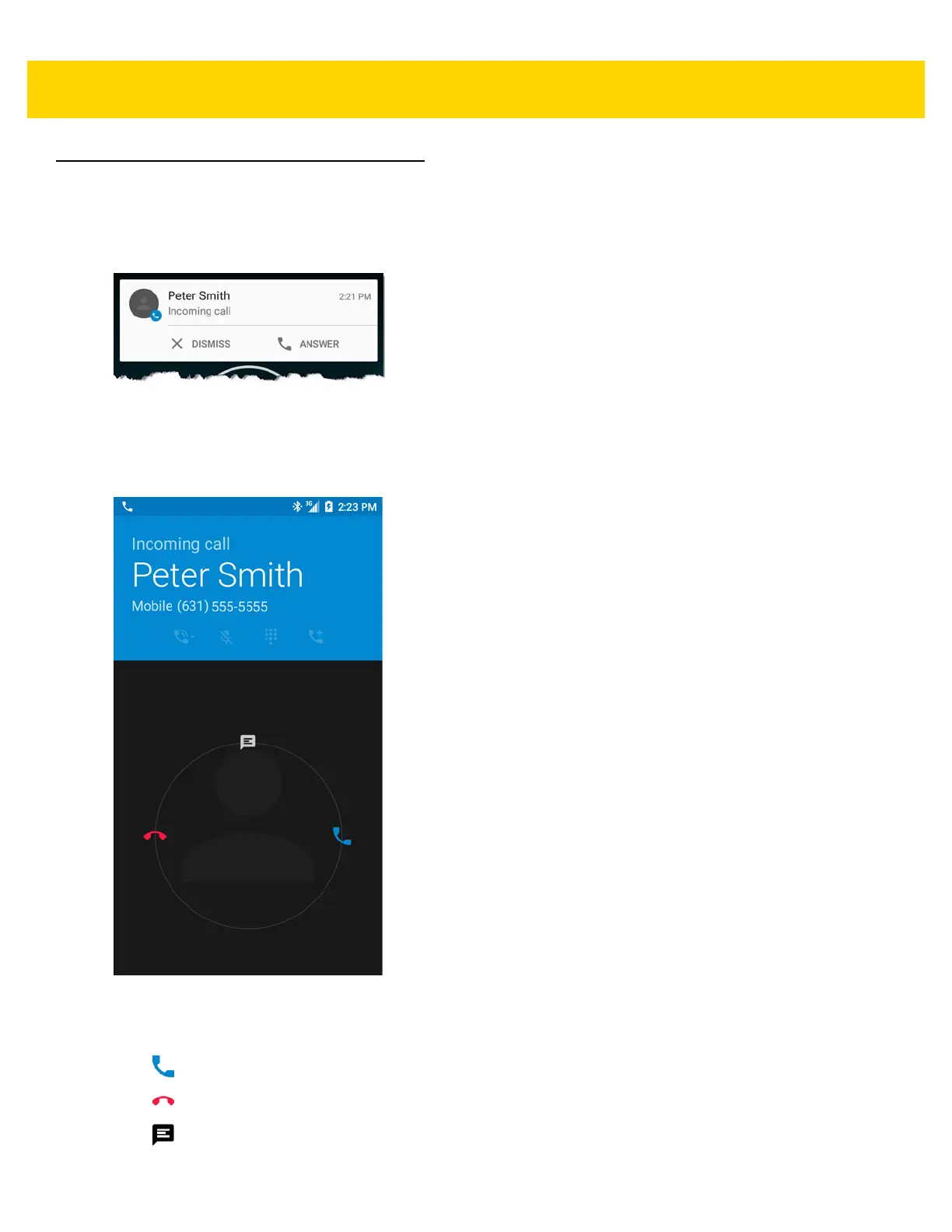

Figure 3-12 Incoming Call Screen
Touch Answer to answer the call or Dismiss to send the caller to voice mail.
If the screen lock is enabled, the user can still answer the call without unlocking the device.
Figure 3-13 Incoming Call Locked Screen
When a call arrives, touch the white phone icon and slide over one of these icons:
• Answer call - Start talking to the caller.
• Send to voice mail - Direct the caller to leave a voice mail message.
• Send a message - Opens a list of quick text responses. Touch one to send it to the caller immediately.

Zebra TC70x Specifications

General

Flash memory	32 GB
Internal memory	4 GB
Internal memory type	-
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	128 GB
Display diagonal	4.7 \
Touch technology	Multi-touch
Touchscreen type	Capacitive
Display resolution	1280 x 720 pixels
Headphone outputs	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	5 - 85 %
Battery voltage	3.7 V
Battery capacity	4620 mAh
Number of cores	6
Processor model	650
Processor family	Snapdragon
Processor frequency	1.8 GHz
Processor manufacturer	Qualcomm
Operating system installed	Android
Product color	Black
Linear (1D) barcodes supported	Code 39
International Protection (IP) code	IP67
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth version	4.1
Rear camera resolution (numeric)	13 MP
Speakers	Mono

Weight and Dimensions

Depth	28 mm
Width	84 mm
Height	161 mm
Weight	376 g
