Zebra TC70x User Manual

7 - 26 TC75x User Guide for Android Version 6.0.1
Attaching the 3.5 mm Audio Adapter
1. Align the top mounting points on the 3.5 mm Audio Adapter with the mounting slots on the TC70x/TC75x.

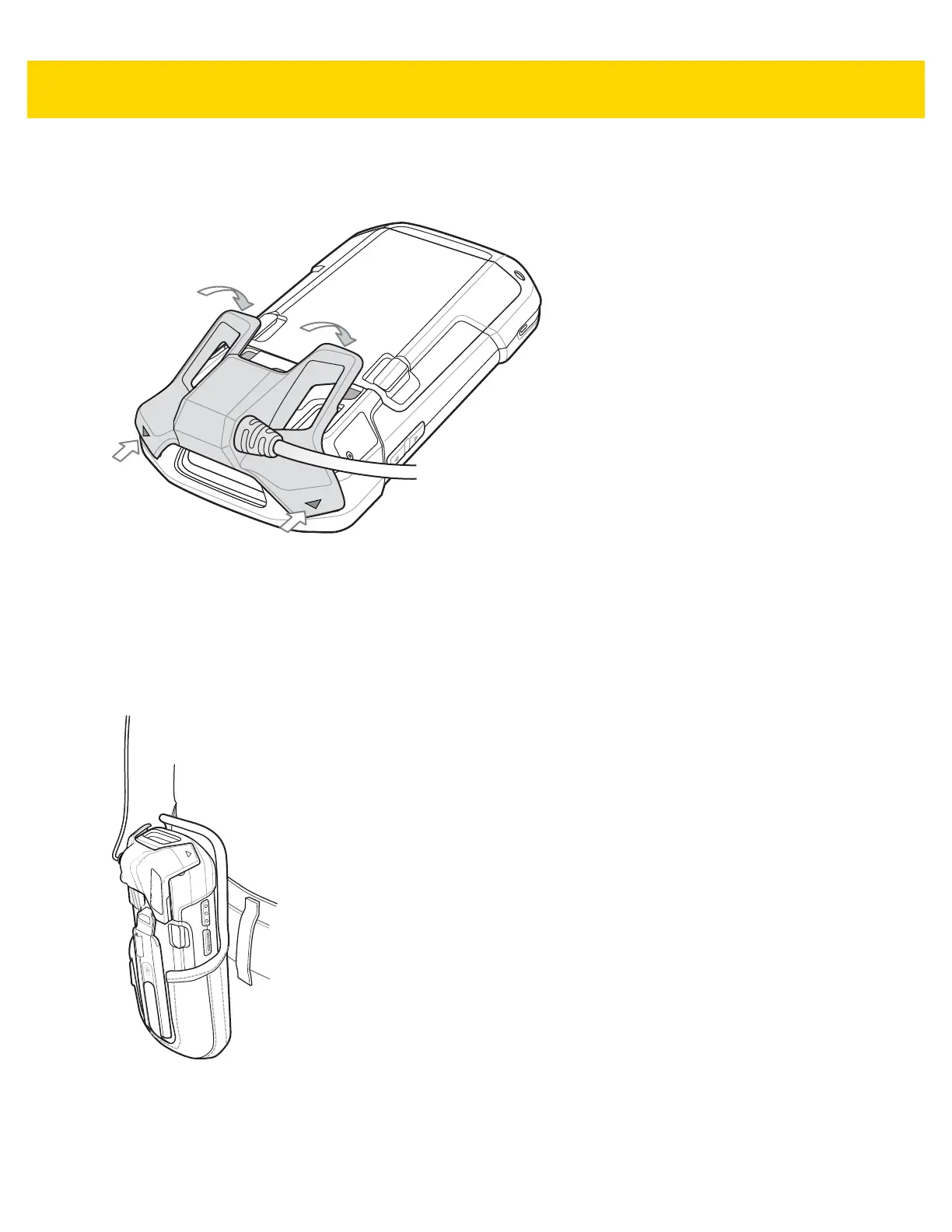

Figure 7-19 Audio Adapter Installation
2. Rotate the Audio Adapter down and press down until it snaps into position.
Device with 3.5 mm Audio Adapter in Holster
When using the TC70x/TC75x and the audio adapter in a holster, ensure that the display faces in and the headset
cable is securely attached to the audio adapter.
Figure 7-20 Device with 3.5 mm Audio Adapter in Holster
Removing the 3.5 mm Audio Adapter
1. Disconnect headset plug from 3.5 mm Audio Adapter.

Zebra TC70x Specifications

General

Flash memory	32 GB
Internal memory	4 GB
Internal memory type	-
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	128 GB
Display diagonal	4.7 \
Touch technology	Multi-touch
Touchscreen type	Capacitive
Display resolution	1280 x 720 pixels
Headphone outputs	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	5 - 85 %
Battery voltage	3.7 V
Battery capacity	4620 mAh
Number of cores	6
Processor model	650
Processor family	Snapdragon
Processor frequency	1.8 GHz
Processor manufacturer	Qualcomm
Operating system installed	Android
Product color	Black
Linear (1D) barcodes supported	Code 39
International Protection (IP) code	IP67
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth version	4.1
Rear camera resolution (numeric)	13 MP
Speakers	Mono

Weight and Dimensions

Depth	28 mm
Width	84 mm
Height	161 mm
Weight	376 g
