Getting Started 1 - 3

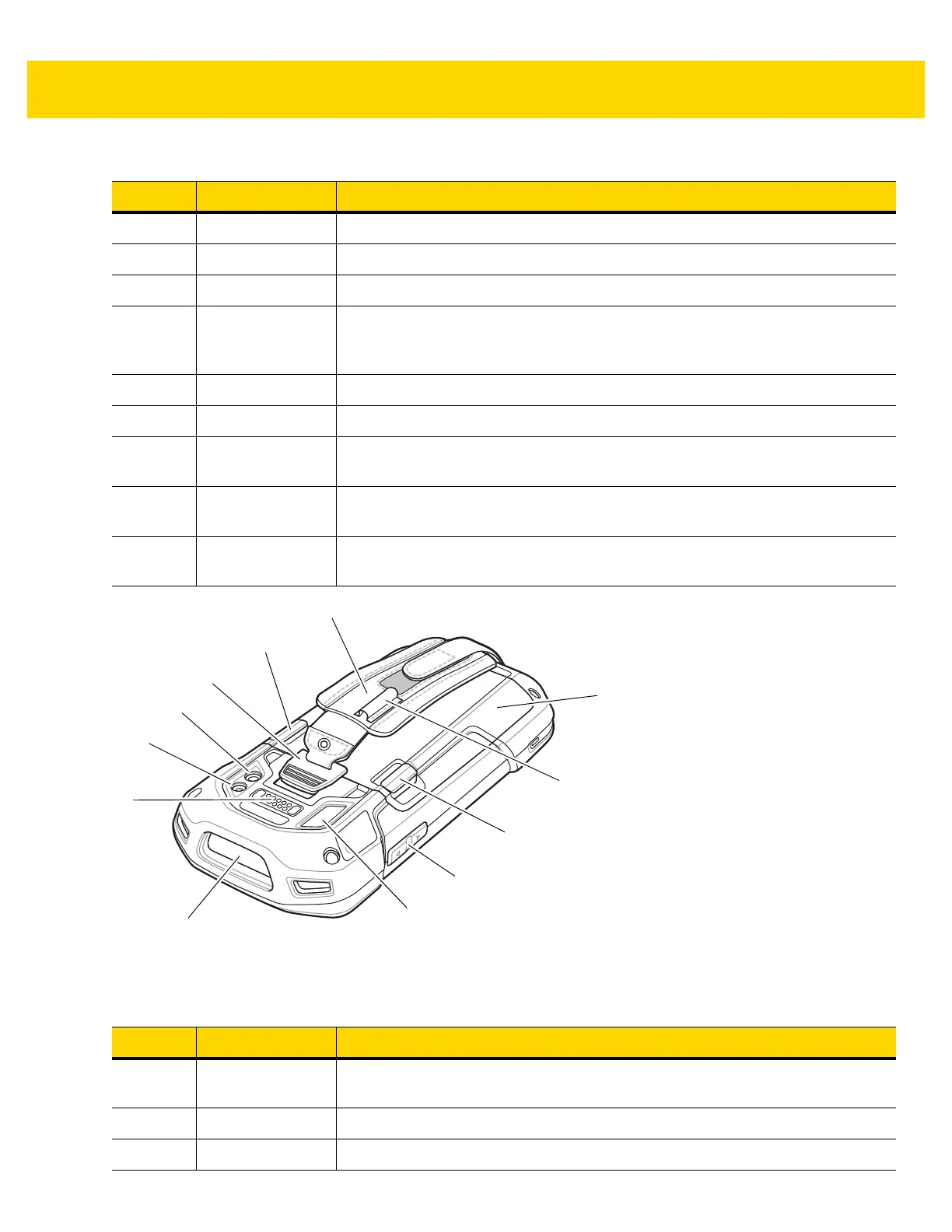

Figure 1-2 Rear View
10 Menu Button Opens a menu with items that affect the current screen or application.
11 Light Sensor Determines ambient light for controlling display backlight intensity.
12 Proximity Sensor Determines proximity for turning off display when in handset mode.
13 Power Button Turns the display on and off. Press and hold to reset the device, power off or
swap battery. Press quickly twice when the screen is locked to open the camera
application.
14 Microphone Use for communications in Speakerphone mode.
15 Receiver Use for audio playback in Handset mode.
16 Charging/Notificat
ion LED
Indicates battery charging status while charging and application generated
notifications.
17 Data Capture
LED
Indicates data capture status.
18 Front Facing
Camera
Use to take photos and videos (optional).
Table 1-2 Back View Features
Number Item Function
19 Interface
Connector
Provides USB host and client communications, audio and device charging via
cables and accessories.
20 Exit Window Provides data capture using the imager.
21 Microphone Use during video recording and for noise cancellation.
Table 1-1 Front View Features (Continued)
Number Item Function
