3-132

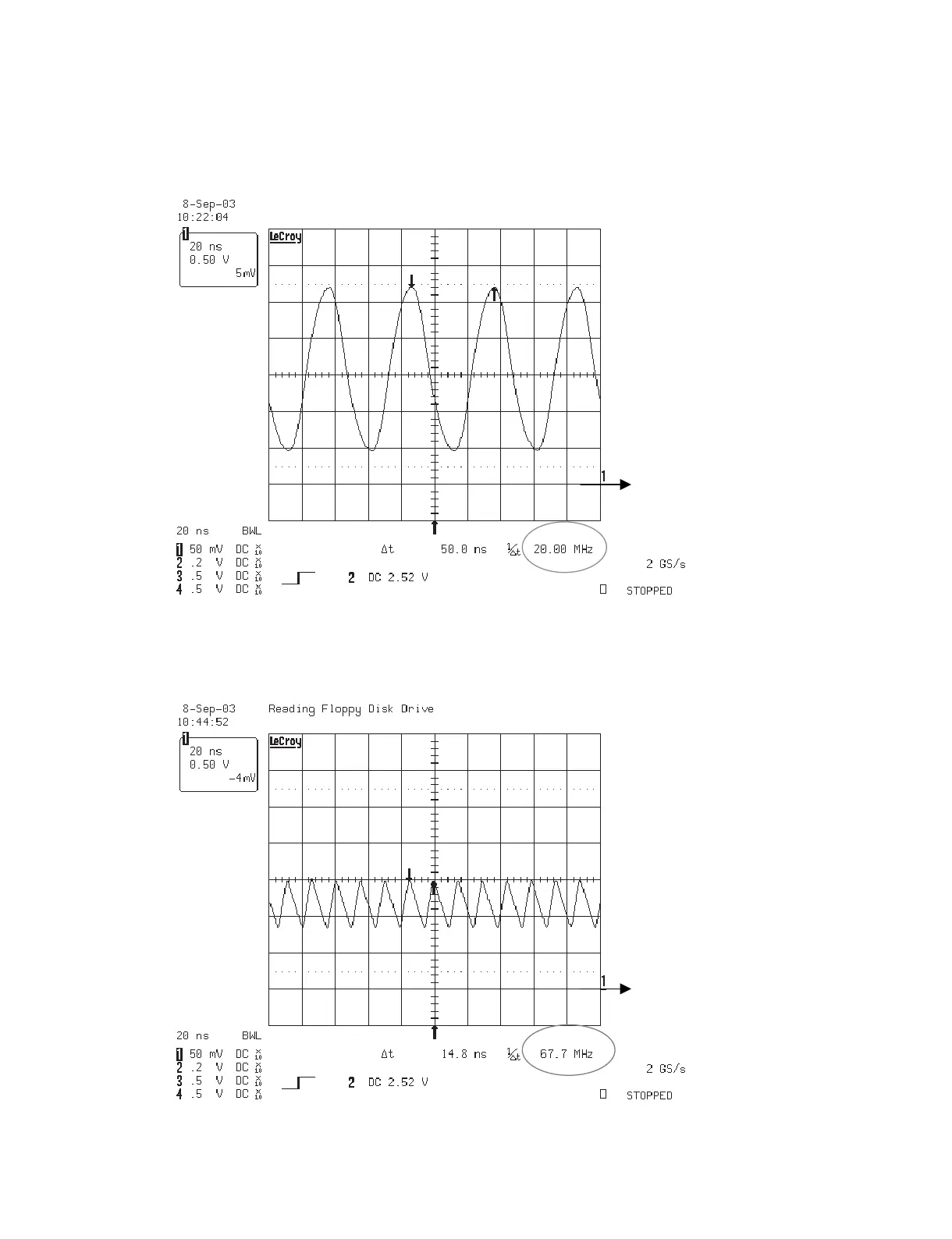

3. Main Clock2 for IC302 (20MHz)
GND LEVEL
X301(IC302 PIN 13
4. SDRAM Clock
GND LEVEL
MCLK(IC201 PIN 35)
