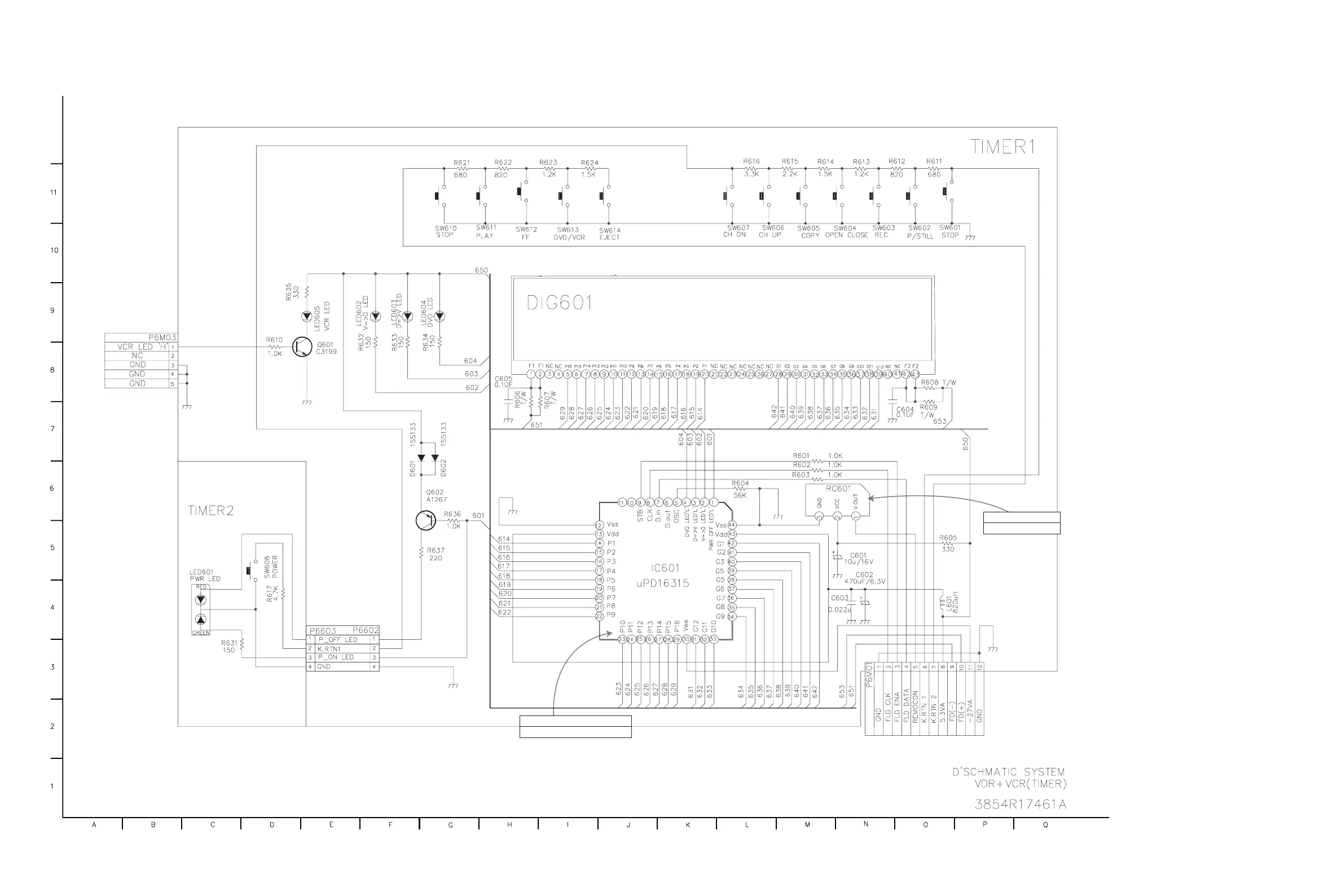

7. TIMER CIRCUIT DIAGRAM
3-46 3-47
IC601 is defective.
Digitron display is unstable
RC601 is defective.
R/C will not working
