3-135

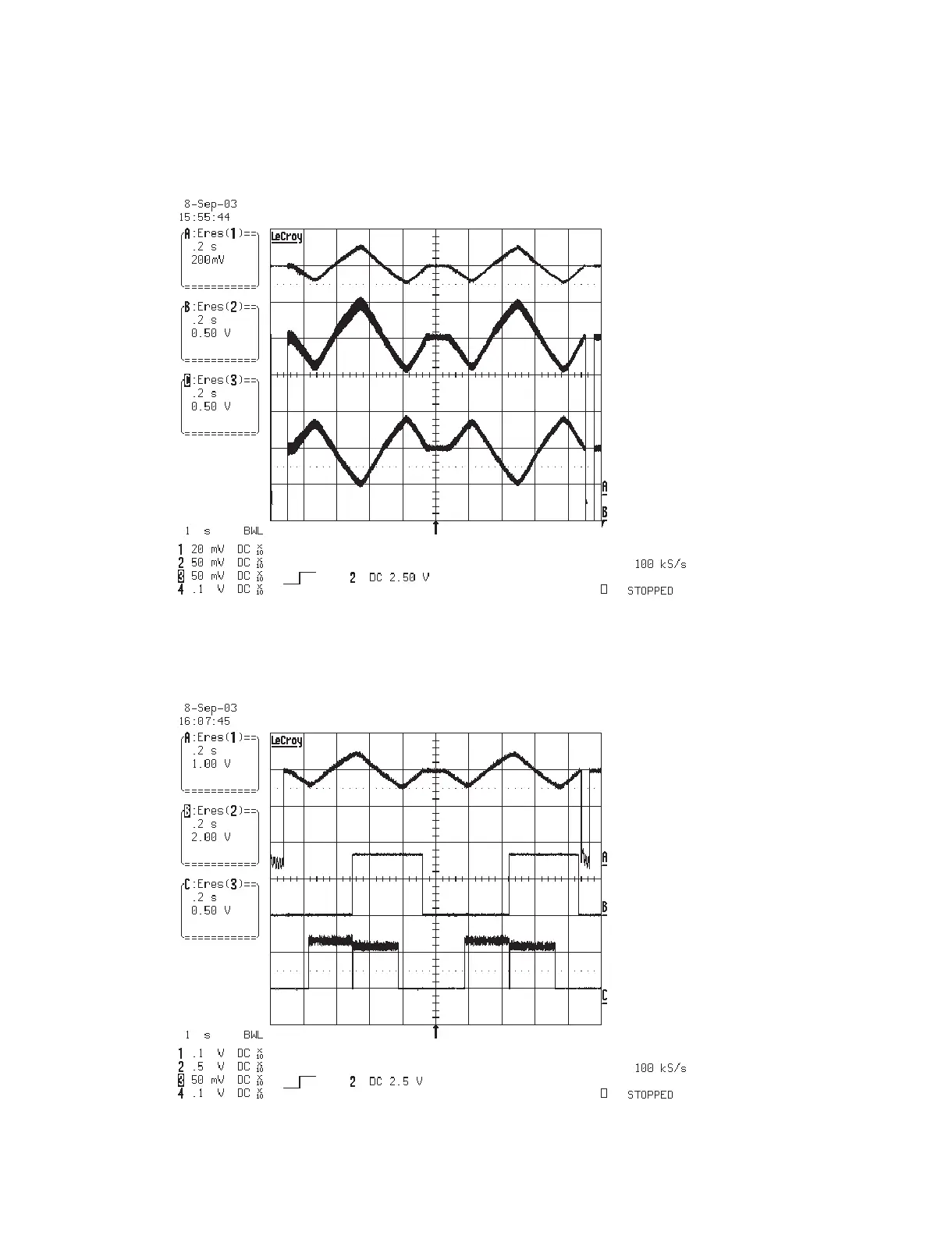

9. FOCUS SEARCH SIGNAL
FDRV(REF 1.25V)
(IC105 PIN53)
F+(REF 2.5V)
(CN101 PIN 35)
F-(REF 2.5V)
(CN101 PIN 36)
10. LASER TURN ON SIGNAL
F+(REF 2.5V)
(CN101 PIN 35)
LDEN-DVD(CN101 PIN17)
VRDC(CN101 PIN 27)
