DECK MECHANISM DISASSEMBLY
4-5
9. Cleaner Arm Assembly (Fig. A-3-1)
1) Carefully pry tab "A" (see Fig.A-3-1) to clear the
embossed tab on the chassis. Turn the Cleaner Arm
Assembly clockwise and lift it from the chassis.
10. F/E Head (Fig. A-3-2)
1) Carefully pry tab "A" (see Fig.A-3-2) to clear the
embossed tab on the chassis. Turn the Cleaner Arm
Assembly counter-clockwise and lift it from the chassis.
11. A/C Head Base Assembly (Fig. A-3-3)
1) Remove the Screw (S4) and lift the A/C Head Base
Assembly up.
(A)
Cleaner
Arm Assembly
A/C Head Base Assembly
(S4)
F/E Head
(A)
Chassis

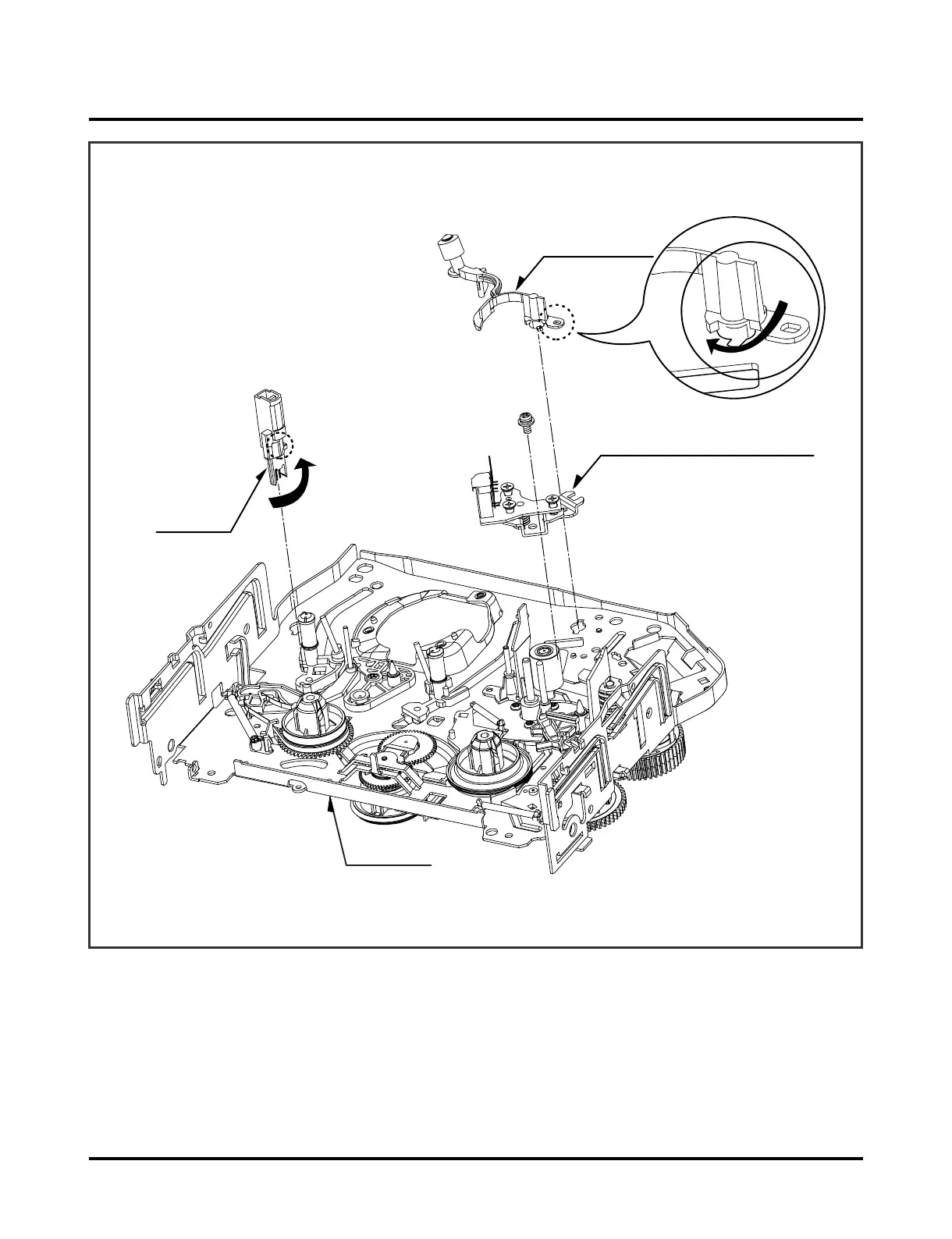

Fig. A-3
(Fig. A-3-1)
(Fig. A-3-3)
(Fig. A-3-2)
