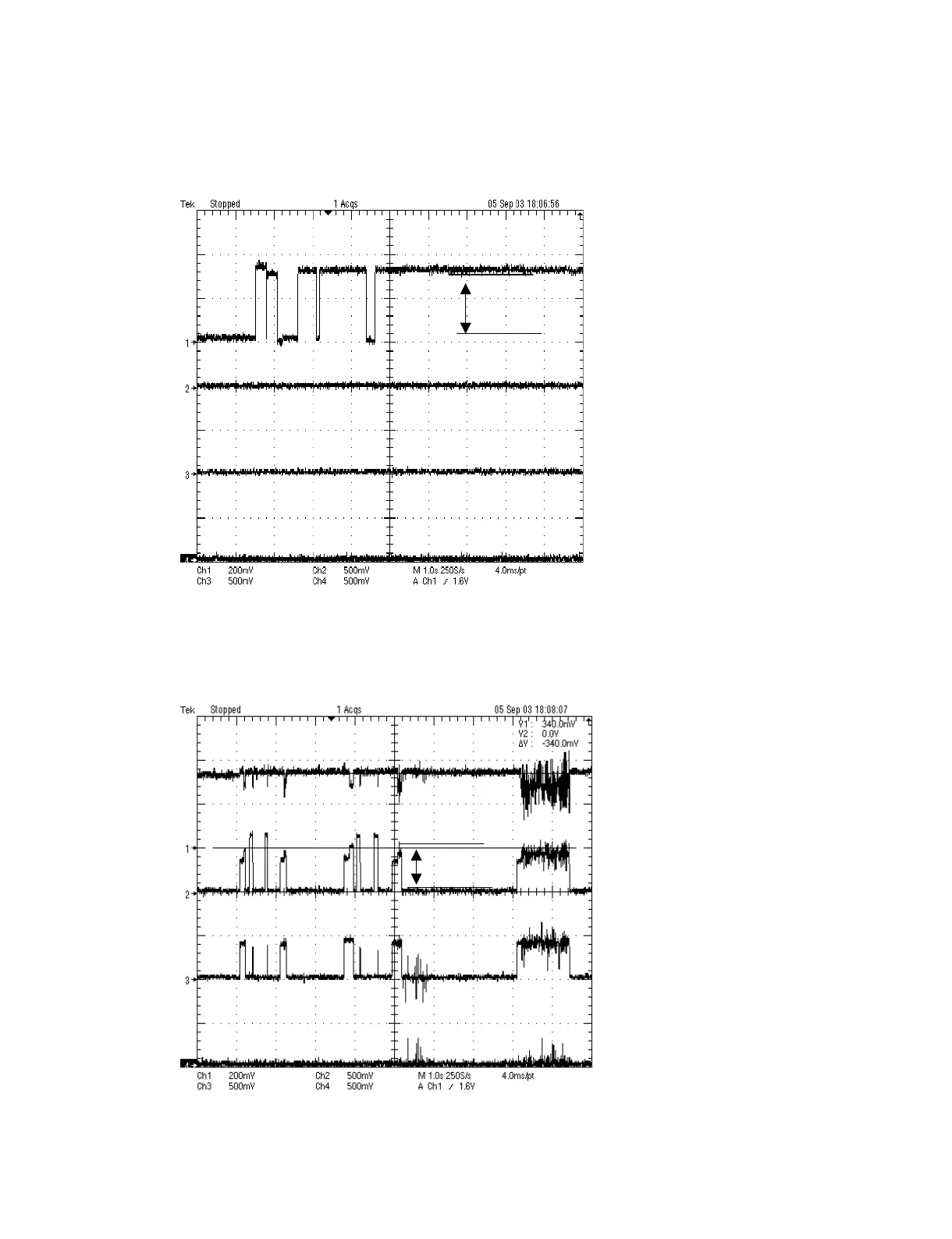

33. Laser Power(reading)_DVD+RW
VRDC(IC107 PIN 31)
VWDC1(IC107 PIN 34)
VWDC2(IC107 PIN 36)
OPECTRG(IC107 PIN 55)
About
360mv
34. Laser Power(Erase)_DVD+RW
VRDC(IC107 PIN 31)
VWDC1(IC107 PIN 34)
VWDC2(IC107 PIN 36)
OPECTRG(IC107 PIN 55)
About
440mv
