DECK MECHANISM DISASSEMBLY
4-7
Lid Opener
Pinch Arm
Assembly
P4 Base Assembly
T/up Arm
T/up Lever
(A)
(B)
(C)
(C)
(H13)
(B)
(H13)
Chassis

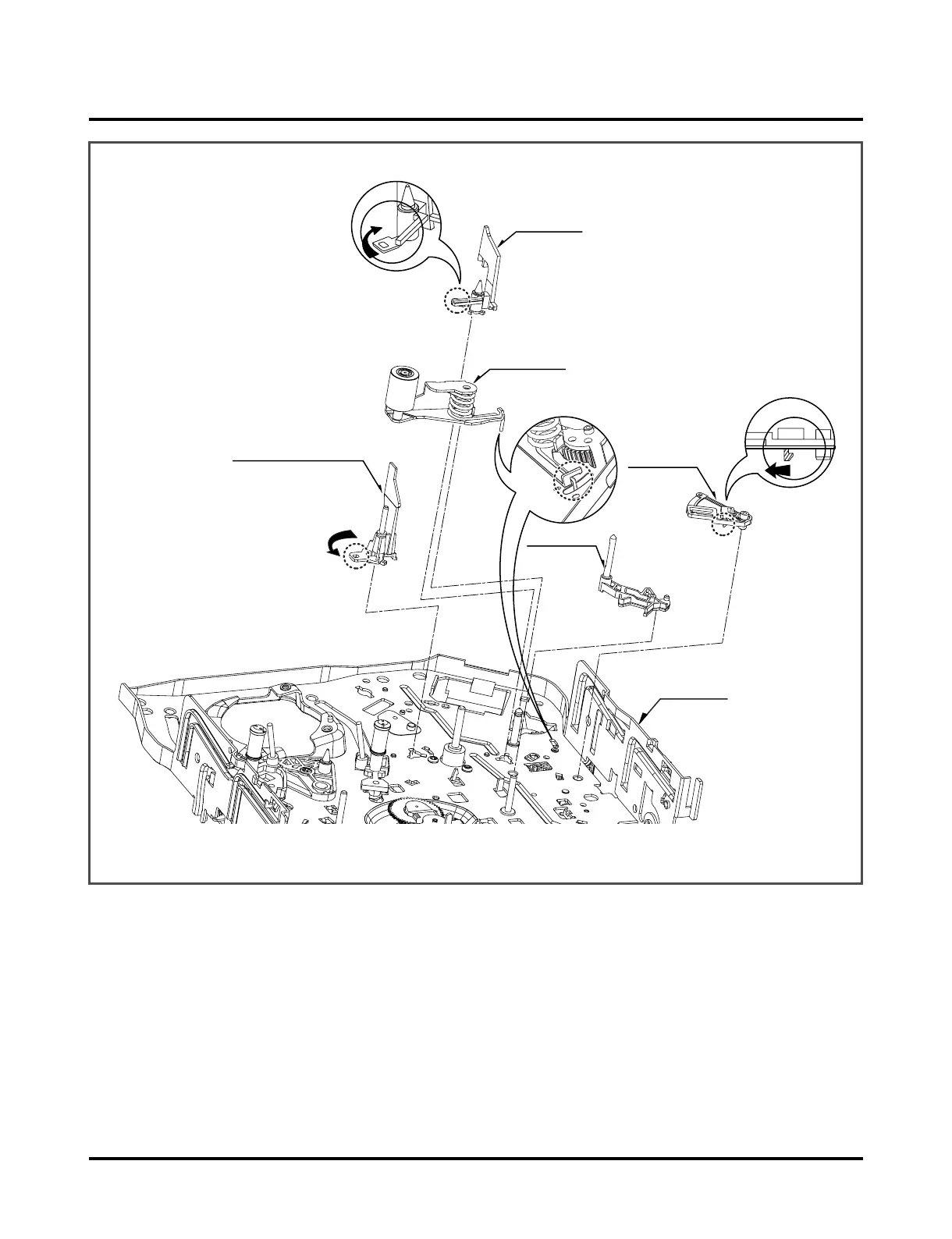

Fig. A-5
16. P4 Base Assembly (Fig. A-5-1)
1) Carefully pry the (A) portion of the P4 Base Assembly
from the Embossing of the Chassis.
2) Turn the P4 Base Assembly counterclockwise and lift it
up.
17. Lid Opener (Fig. A-5-2)
1) Carefully pry the (B) portion of the Lid Opener from the
Embossing of the Chassis.
2) Turn the Lid Opener to clockwise direction and lift it up.
18. Pinch Arm Assembly (Fig. A-5-3)
1) Lift the Pinch Arm Assembly up.
19. T/up (Fig. A-5-4)/
Arm T/up Lever (Fig. A-5-5)
1) Unhook the Hook (H13) of the bottom Chassis and lift the
T/up Lever up.
2) Lift the T/up Arm up.
When reassembling, confirm the (C) portion of the Pinch Arm
Assembly is inserted in the Chassis Hole correctly.
Place the Mechanism face down, or up side down.
NOTE
(Fig. A-5-2)
(Fig. A-5-1)
(Fig. A-5-3)
(Fig. A-5-5)
(Fig. A-5-4)
