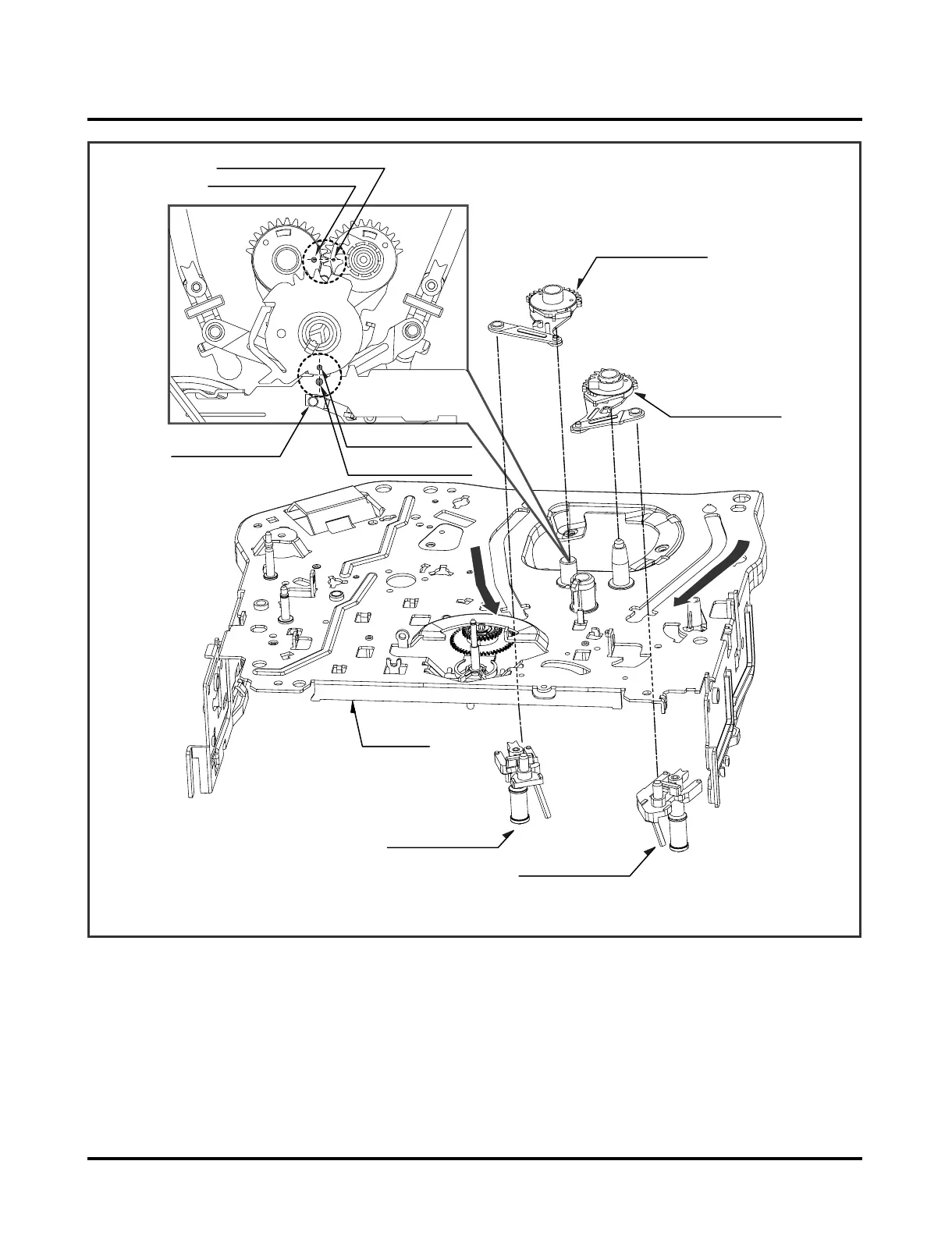

Fig. A-8
29. P2 Gear Assembly (Fig. A-8-1)/
P3 Gear Assembly (Fig. A-8-2)/
1) Lift the P2 Gear Assembly up.
2) Lift the P3 Gear Assembly up.
When reassembling, align the two Holes of the P2 and P3
Gear Assembly in a straight line after confirming the Sector
Gear Hole (A) and the Slider Plate Hole (B) are aligned as in
the above Fig.
30. P2 Base Assembly (Fig. A-8-3)/
P3 Base Assembly (Fig. A-8-4)
1) Move the P2 Base Assembly in the direction of the arrow
(A) along the slot of the Chassis and disassemble it from
the bottom side.
2) Move the P3 Base Assembly in the direction of the arrow
(B) along the slot of the Chassis and disassemble it from
the bottom side.
Place the Mechanism face up, or return to it's original
position.
NOTE
(Fig. A-8-1)
(Fig. A-8-2)
(Fig. A-8-3)
(Fig. A-8-4)
