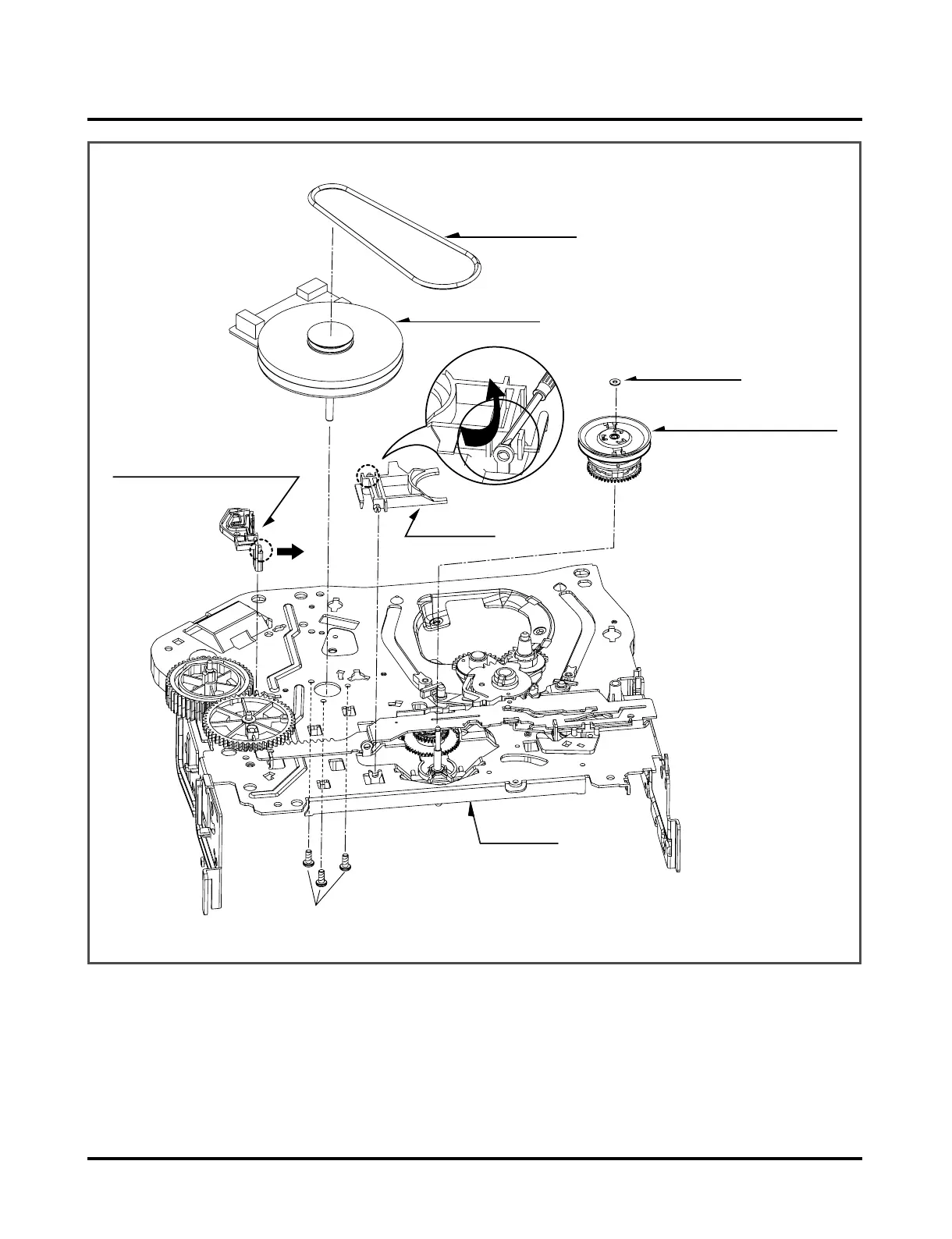

Fig. A-6
20. Capstan Belt (Fig. A-6-1)/
Capstan Motor (Fig. A-6-2)
1) Remove the Capstan Belt..
2) Remove the three Screws (S5) from the bottom of the
Chassis and lift the Capstan Motor up.
21. F/R Lever (Fig. A-6-3)
1) Unlock the Locking Tab (L1) as Fig. A-6-3 and lift the F/R
Lever up.
22. D35 Clutch assembly (Fig. A-6-4)
1) Remove the Washer (W1) and lift the D35 Clutch
Assembly up.
23. Capstan Brake Assembly
(Fig. A-6-5)
1) Pull the Locking Tab (L2) back in the direction of the
arrow and lift it up.
(Fig. A-6-1)
(Fig. A-6-2)
(Fig. A-6-3)
(Fig. A-6-5)
(Fig. A-6-4)
