3-143

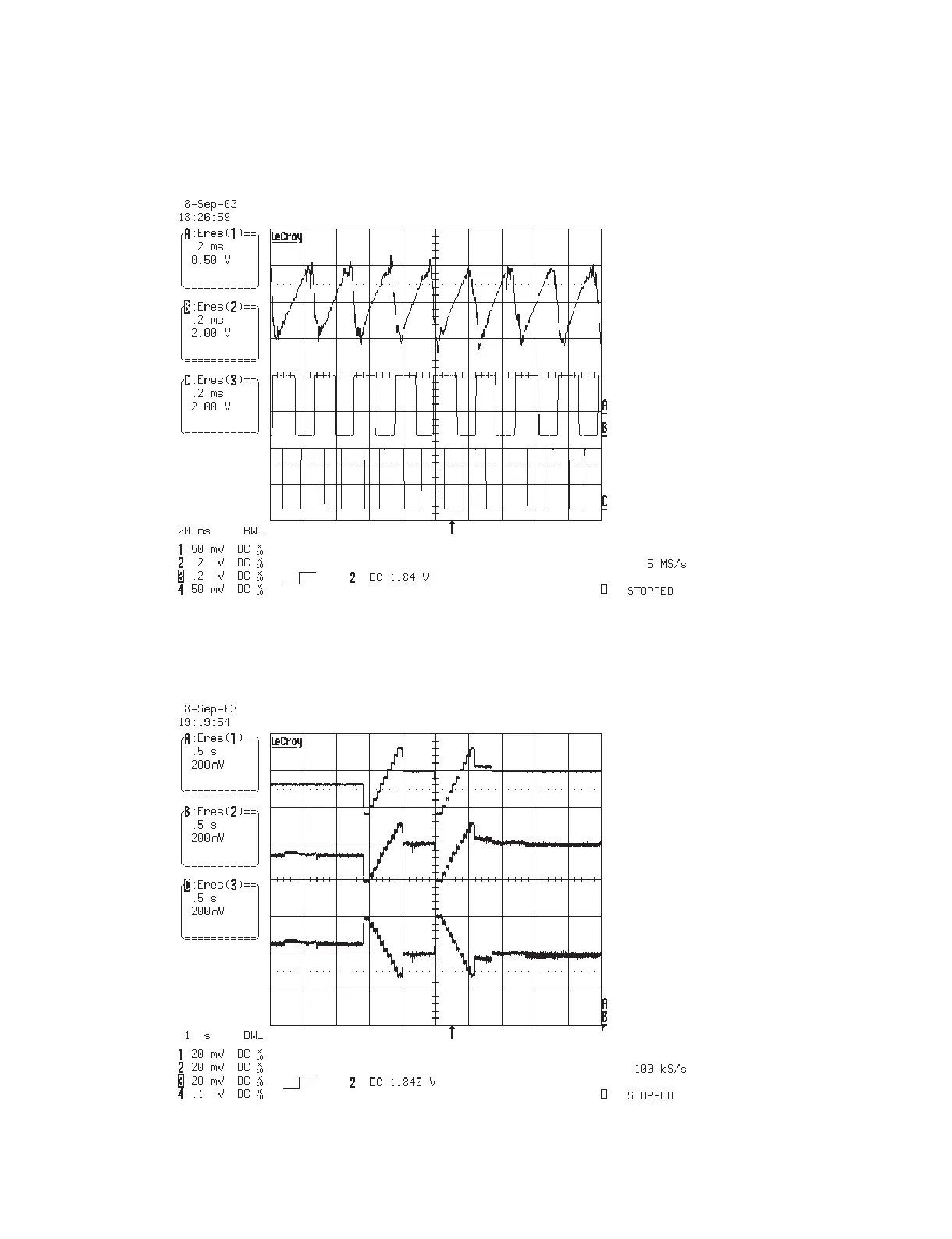

25. TRACK OFF SIGNAL(DVD)
TE(REF 1.5V)
(IC107 PIN82)
TZC(IC107 PIN79)
MIRRBCA
(IC107 PIN92)
26. Tilt Driver signal(Disc reading)
1.25V
2.3V
2.3V
1.32V
2.35V
2.25V
TILTDRV(IC104 PIN4)
TILT+(CN101 PIN39)
TILT-(CN101 PIN40)
