Zenith XBR413 - Greasing

MAINTENANCE/INSPECTION PROCEDURE
4-21
(1) Greasing guidelines
Apply grease, with a cleaning patch. Do not use excess
grease. It may come into contact with the tape path or
drive system. If this occurs wipe off any excess and
clean with cleaning patch using Isopropyl Alcohol.
(2) Periodic greasing
Grease specified locations every 5,000 hours.

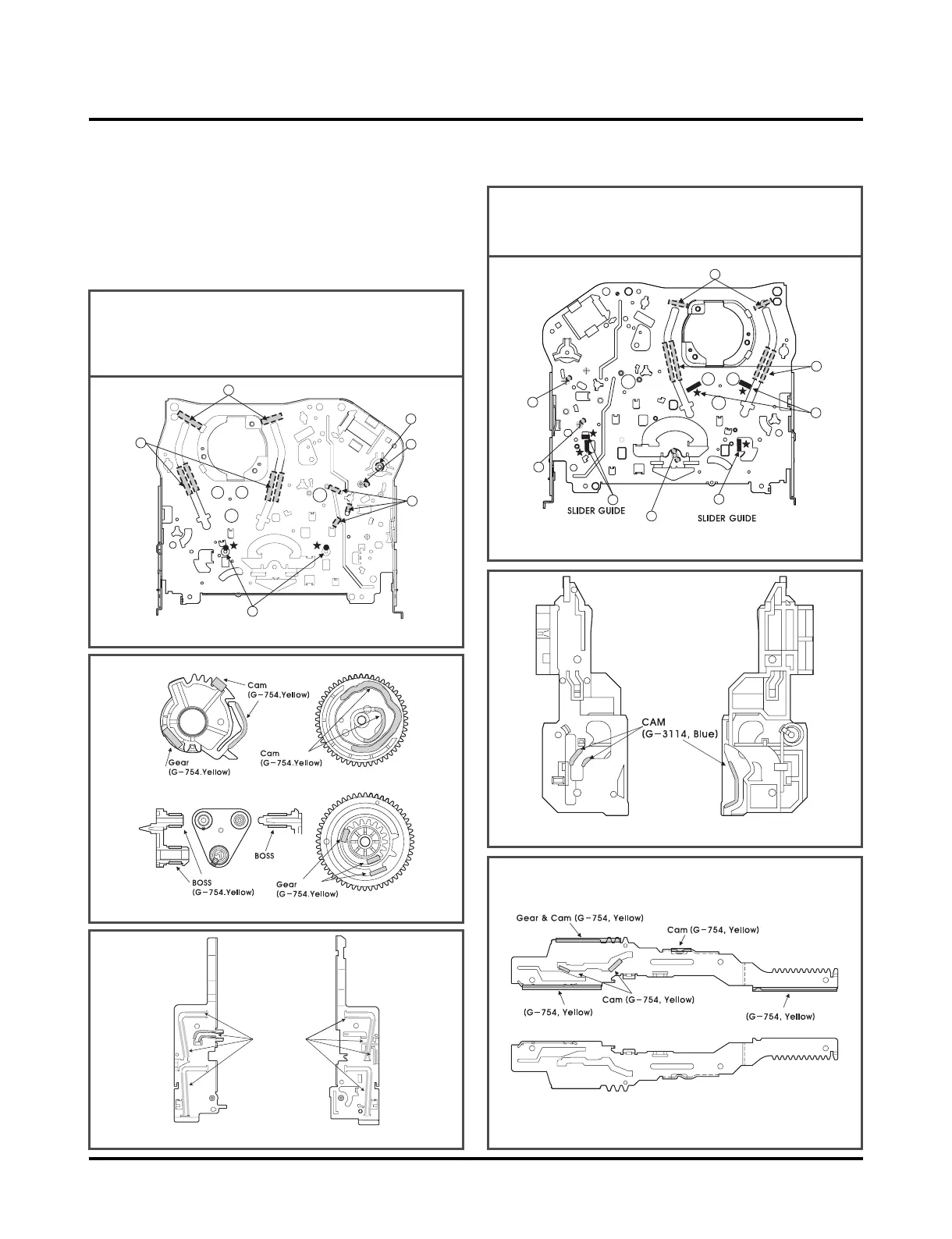

5-2) Greasing
NOTE:Greasing Points
3
5
6
1
2
4
1) Loading Path Inside & Top side
2) Tension Base Boss inside Hole
3) F/L Arm Assembly "U" Groove
4) Take-up Arm Rubbing Section
5) L/D Motor Gear Wheel Part
6) Shaft
7) F/L Arm Assembly of Buming
Inside Hole
8) S Reel, T Shaft (G381:Yellow)
9) Brake T Groove
Guide Rail
Loading Base
Drive Gear
Sector Gear
Cam Gear
Gear Part
(L) Side Bracket
Door Bracket Assembly
5
7
8
1
2
6
4
3
1) Loading Path Inside & Top side
2) Shaft
3) F/L Gear Rack Moving Section
4) Shaft
5) Tension Lever Groove
6) D33 Clutch Assembly Shaft
7) "S" Brake Rubbing Section
Chassis (Top)
Chassis (Bottom)
F/L Guide Rack F/L Gear Rack
