3-137

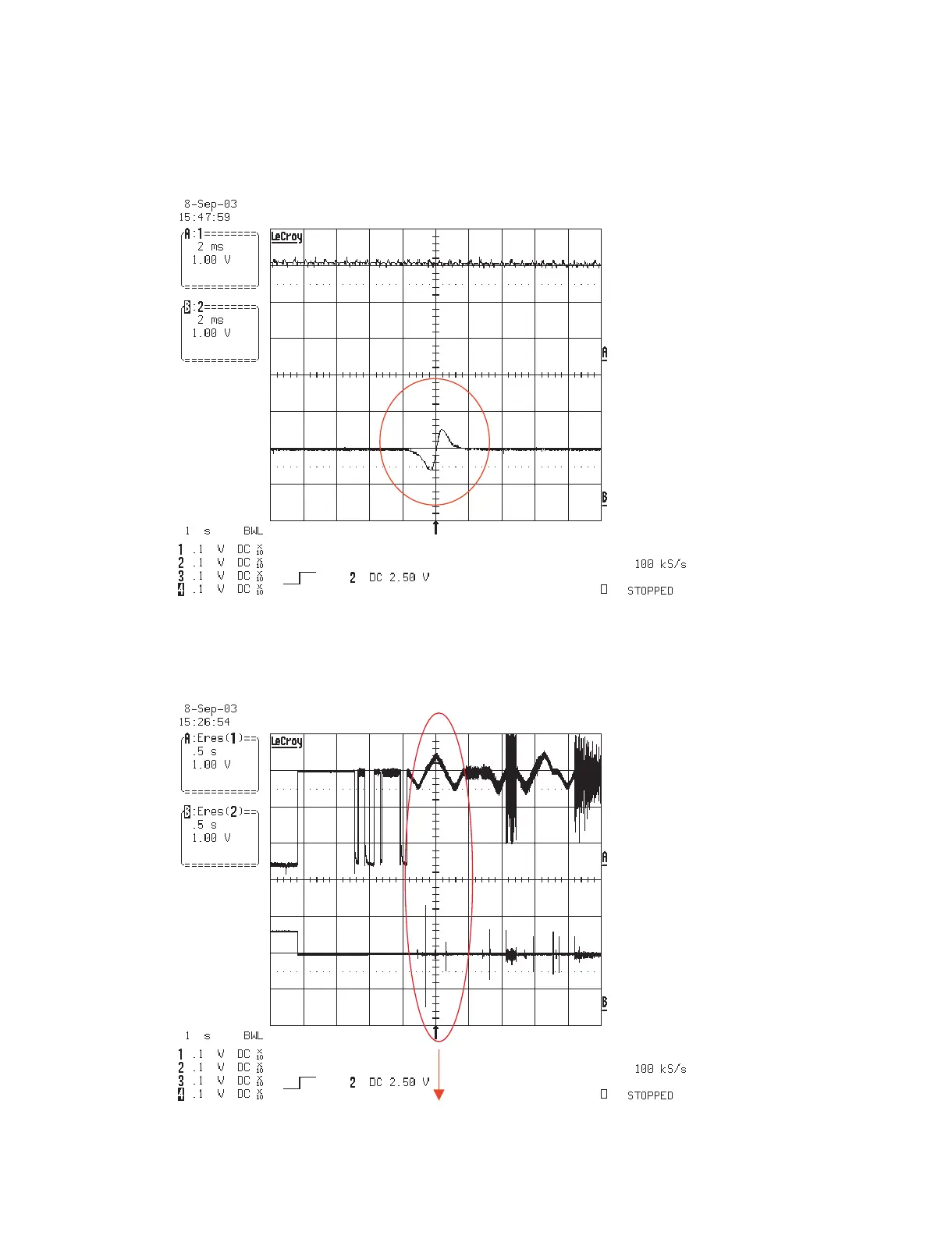

13. DISC TYPE JUDGEMENT WAVEFORM (CD-RW)
F+(REF 2.5V)
(CN101 PIN 35)
FE(REF 1.5V)
(IC107 PIN86)
14. DISC TYPE JUDGEMENT WAVEFORM (DVD SERIES)
ZOOM
F+(REF 2.5V)
(CN101 PIN 35)
FE(REF 1.5V)
(IC107 PIN86)
