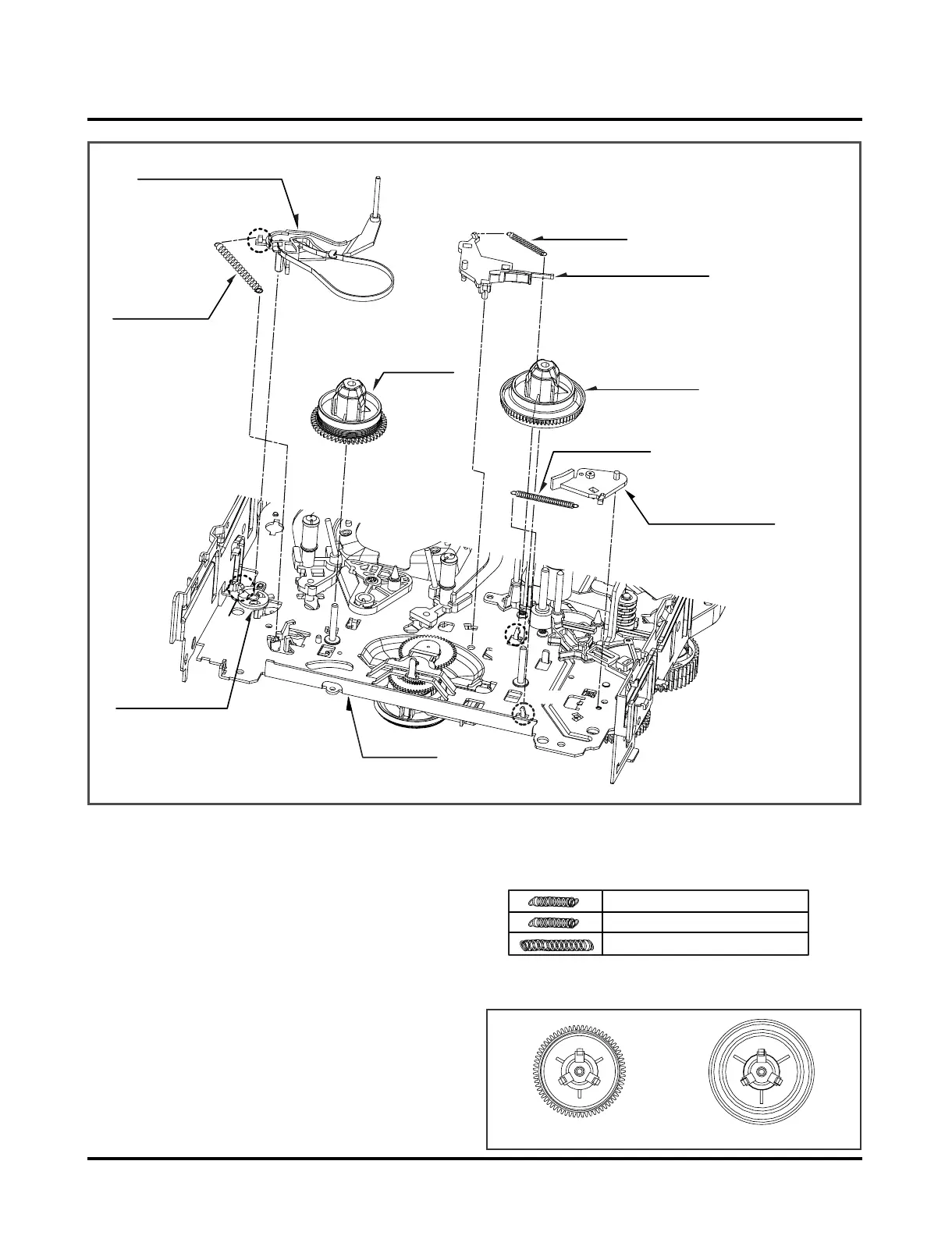

DECK MECHANISM DISASSEMBLY
T Brake Assembly
TB Spring
(H9)
T Reel
RS Brake Assembly
RS Spring
Tension Arm Assembly
Tension Spring
S Reel
Tension Base
(H11)
(H12)
Chassis
(H10)
Fig. A-4
12. T Brake Assembly (Fig. A-4-1)
1) Unhook the TB Spring from the Hook (H9) of the Chassis.
2) LLift the T Brake Assembly up.
13. RS Brake Assembly (Fig. A-4-2)
1) Unhook the RS Spring from the Hook (H10) of the
Chassis.
2) Lift the T Brake Assembly up.
14. Tension Arm Assembly (Fig. A-4-3)
1) Unhook the Tension Spring from the Hook (H11) of the
Tension Arm Assembly.
2) Unhook the Hook (H12) of the Tension Base and lift the
Tension Arm Assembly up.
Difference for Springs
15. S Reel / T Reel (Fig. A-4-4)
1) Difference for S Reel / T Reel
TB Spring
RS Spring
Tension Spring
(Difference for Springs)
Color (Black)
S Reel T Reel
NOTE
(Fig. A-4-1)
(Fig. A-4-3)
(Fig. A-4-4)
(Fig. A-4-4)
(Fig. A-4-2)
