DECK MECHANISM DISASSEMBLY
(S3)
(S2)
(S2)
(S3)
(A)
Stator
Carbon Brush
Drum Motor
Rotor
Drum Sub Assembly
FPC Drum
(S1)
(S1)
(S1)
FPC Holder
H1
H2

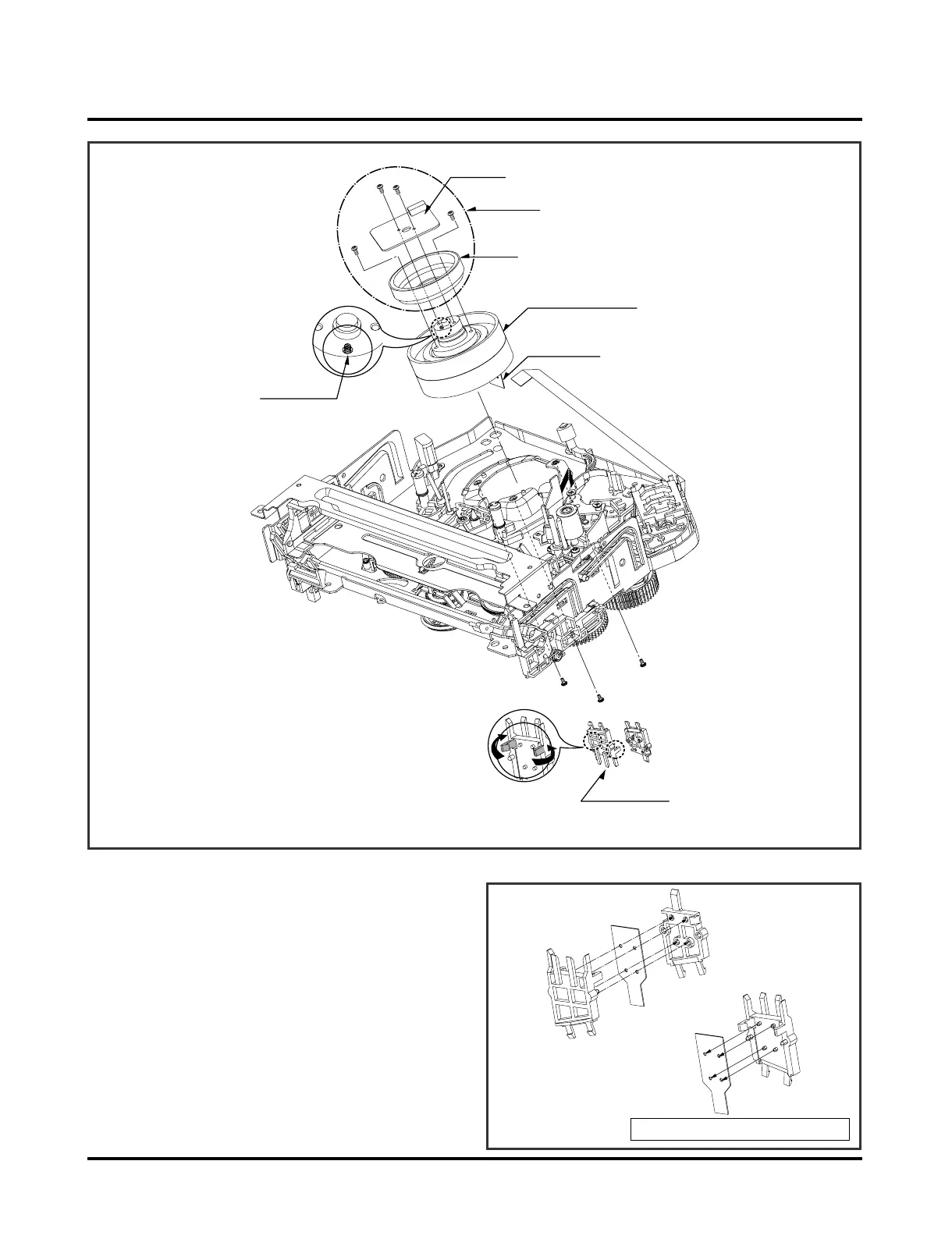

1. Drum Assembly (Fig. A-1-1)
1) Unplug the FPC Drum Connector.
2) Remove three Screws (S1) on the bottom side and sep-
arate the Drum assembly.
3) Unhook (H1), (H2) and separate the FPC Holder and
FPC Cap. (See Fig. B-1)
1-1. Drum Motor
1) Remove two Screws (S2) and disassemble the Stator of
the Drum Motor.
(2) Remove two Screws (S3) and separate the Rotor of the
Drum Motor from the Drum Sub assembly.
When reassembling, check to ascertain that the Carbon
Brush is in position.
Fig. A-1
NOTE
(Fig. B-1)
FPC Holder
FPC Drum
FPC Cap
Figure in the opposite direction
(Fig. A-1-1)
