Zenith XBR413 - Tools and Fixtures for Service

DECK MECHANISM DISASSEMBLY
4-12

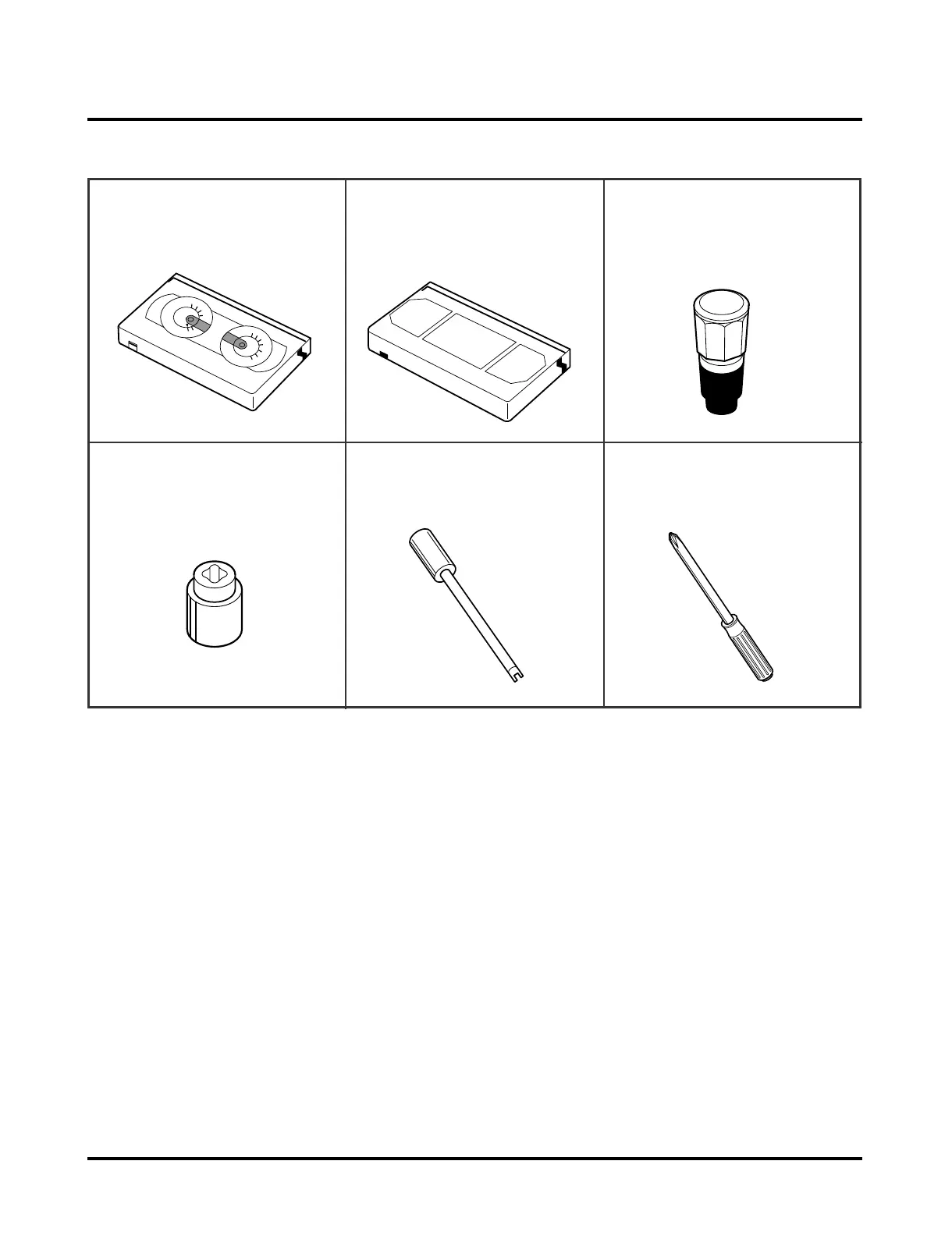

• Tools and Fixfures for Service
1. Cassette Torque meter
1. SRK-VHT-303 (Not SVC part)
1. Parts No: D00-D006
4. Torque gauge adaptor
Parts No:D09-R001
5. Post height adjusting driver
Parts No:DTL-0005
6. + Type driver (ø 5)
2. Alignment tape
Parts No NTSC: DTN-001
PAL:DTN-0002
3. Torque gauge
3. 600g.Cm ATG
3. Parts No:D00-D002
SRK
VIDEO
CASSETTE
TORQUE
METER
VHT-303
