HINT:
• This can be set to “Mute” or from –48 dB to +24 dB.
• When “Mute” is selected, output from the LINE OUT jack is muted.

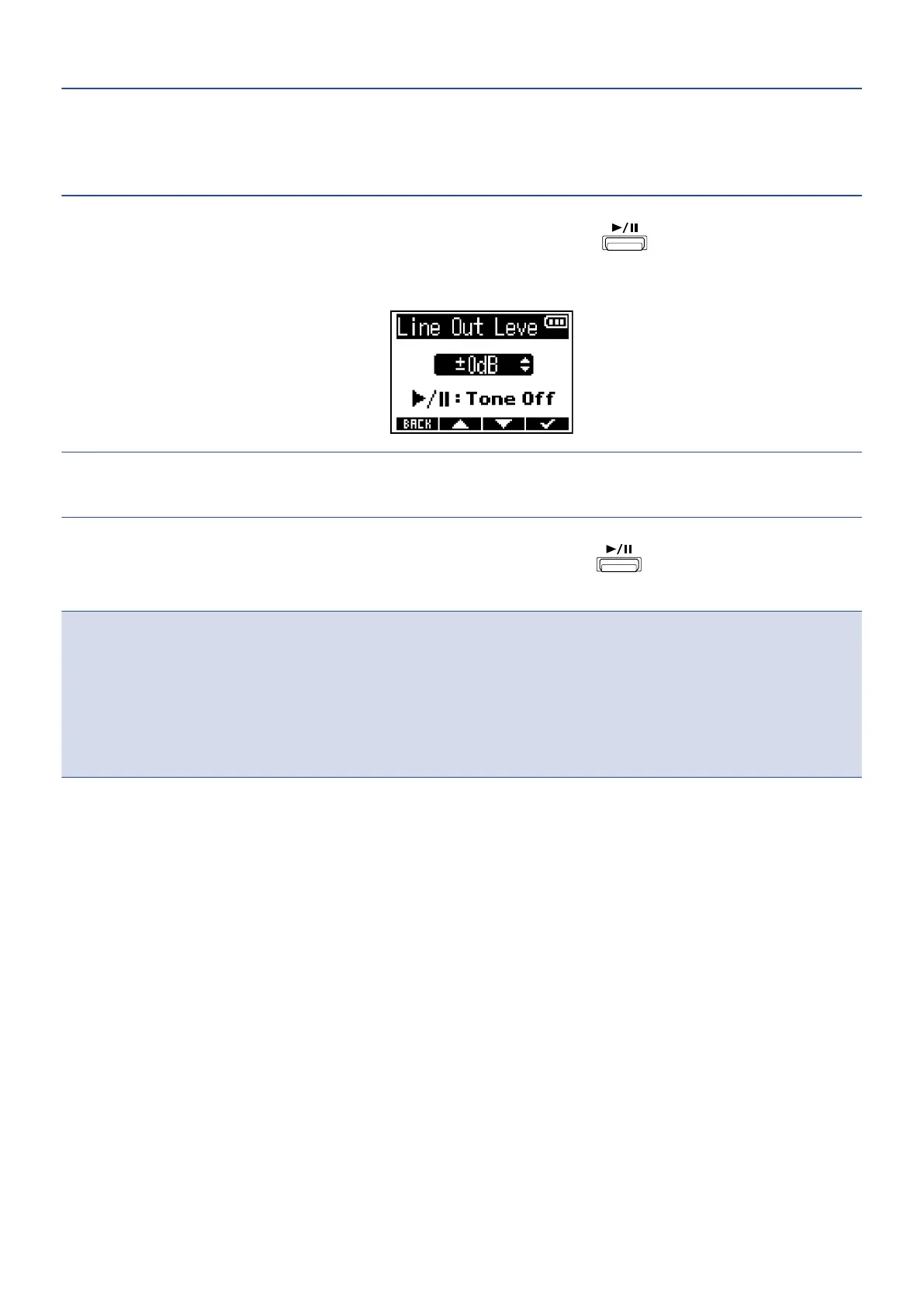

6. To output a test tone from the F3 to adjust the output level, press .
While checking the audio level meter of the connected equipment, make adjustments to the input gain
of that device until the audio signal level is about −6 dB.
HINT:
The test tone is a 1kHz sine wave at −6 dBFS.
7. After adjusting the input gain of the connected equipment, press .
This stops test tone output.
NOTE:
• See the manual of the connected device for information about its operation.
• If the automatic gain control function on the other device is on, turn it off.
• The test tone is output from both the LINE OUT and PHONE OUT jacks.
• Be careful with the volume if you are monitoring the sound with headphones, for example.
