Zoom F3 User Manual

Overview of screens that are shown
This section explains the screens shown on the F3 display.

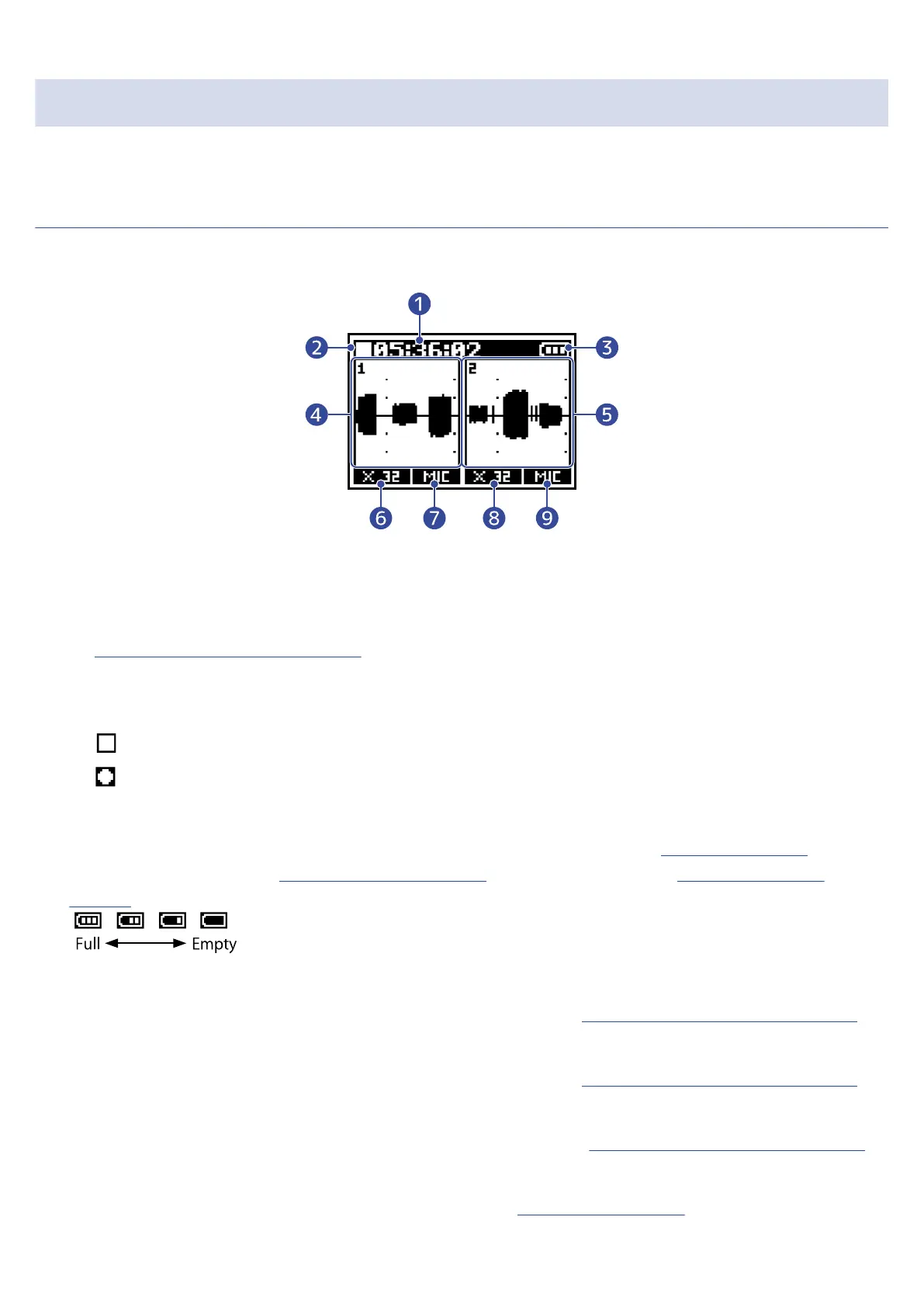

Home Screen
This appears on the display when the F3 power is turned on. This shows the recording state, input signal
waveforms and other F3 conditions.
❶
Counter
This shows the available recording time when in recording standby and the current elapsed recording
time when recording. The remaining available recording time can also be shown when recording.
(→ Setting the recording time display)
❷
Status icon
This icon shows the recording status.
• Stopped
• Recording
❸
Remaining battery charge indicator
When the remaining battery charge becomes low, change the batteries (→ Installing batteries) or
connect an AC adapter (→ Connecting an AC adapter) or a mobile battery (→ Using other power
sources).
❹
Waveform display (Input 1)
This shows the waveform of the signal input through Input 1. (→ Waveforms shown when recording
）
❺
Waveform display (Input 2)
This shows the waveform of the signal input through Input 2. (→ Waveforms shown when recording
）
❻
Waveform magnification (Input 1)
This shows the magnification of the Input 1 waveform display. (→ Waveforms shown when recording
）
❼
Input source (Input 1)
This shows the input source currently set for Input 1. (→ Setting input sources)
14

Zoom F3 Specifications

General

XLR in	Yes
Audio (L/R) out	1
Sample rate	192 kHz
Audio quality	32 bit
Product color	Gray

Weight and Dimensions

Weight	242 g
Dimensions (WxDxH)	75 x 77.3 x 47.8 mm
