Zünd G3 - Mounting the Varioface Module on the G3;D3 Cutter (System A)

Installing the S-box
33

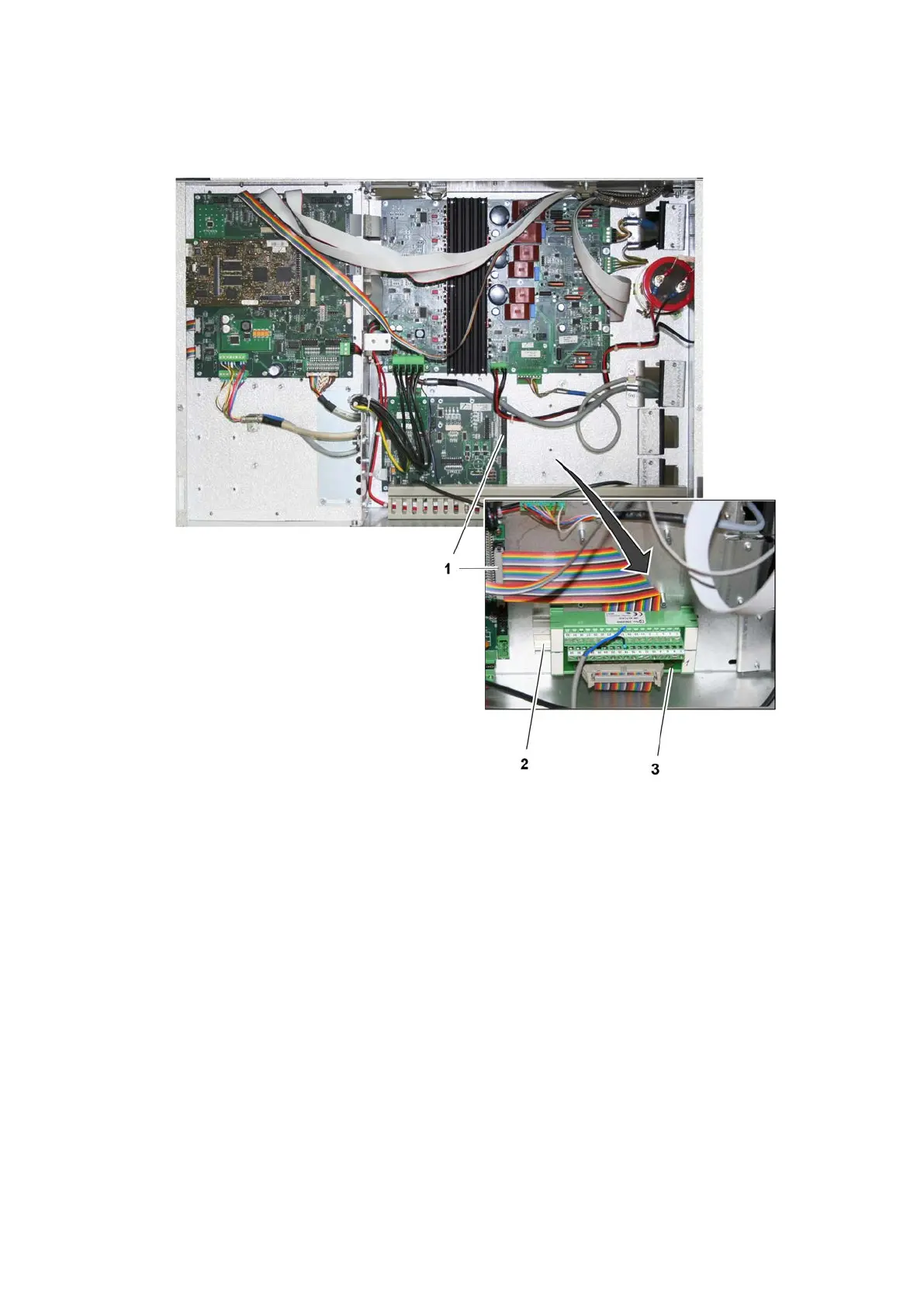

6.3 Mounting the Varioface module on the G3/D3 cutter (system A)
1 S7 plug connector
(ACS_OPT_BRD1_BOARD)
3 Varioface module
2 DIN rail with M4 nuts
A Open the electronics box.
B Fasten the DIN rail with the M4 nuts and washers.
C Install and plug in the S7 Varioface module connection cable.
D Snap the Varioface module onto the DIN rail.
