Setting up the control panel/workstation
22
5.4 Assembly with segment anchors (fastening to the floor)
Note:
Damage to lines or underfloor heating possible.
• Check for any lines in the floor or underfloor heating before drilling the holes.
Caution:
Crushing risk!
• Set up the workstation / control panel at least 180 mm from the cutter beam.
Caution:
Risk of injury from the workstation tipping over
The workstation can tip over if weight is applied to the surface area.
• Avoid putting weight on the workstation before anchoring to the floor.

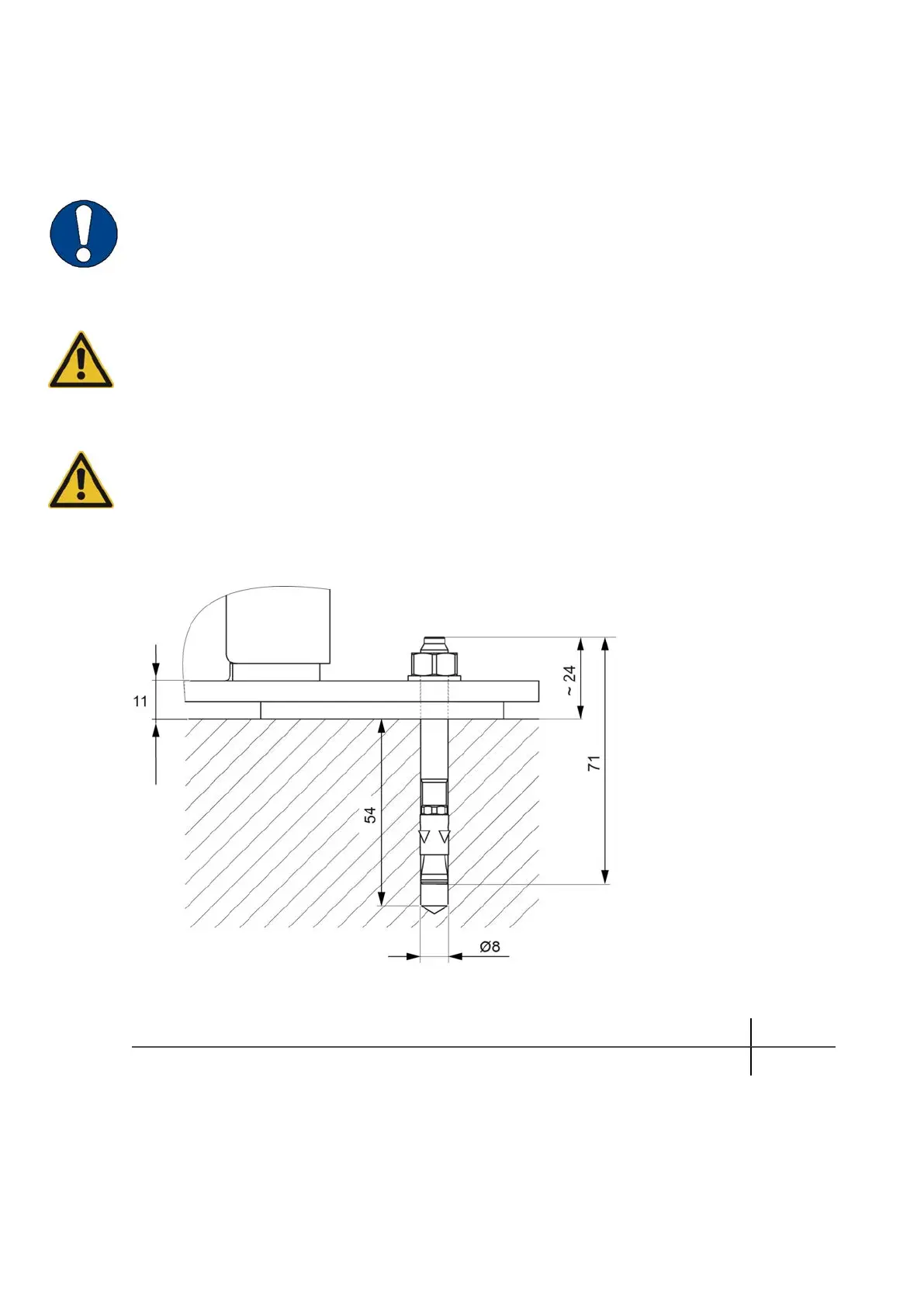

Figure 1: Dimensions of the M8 segment anchor
Segment anchors used pcs.
M8 segment anchor (stud anchor FBN II M8/10 (8x71)) 2
The minimum depth of the drill hole is 54 mm.
After driving in the segment anchor, there should be an overhang of approx. 20 mm.
