Setting up the control panel/workstation
19

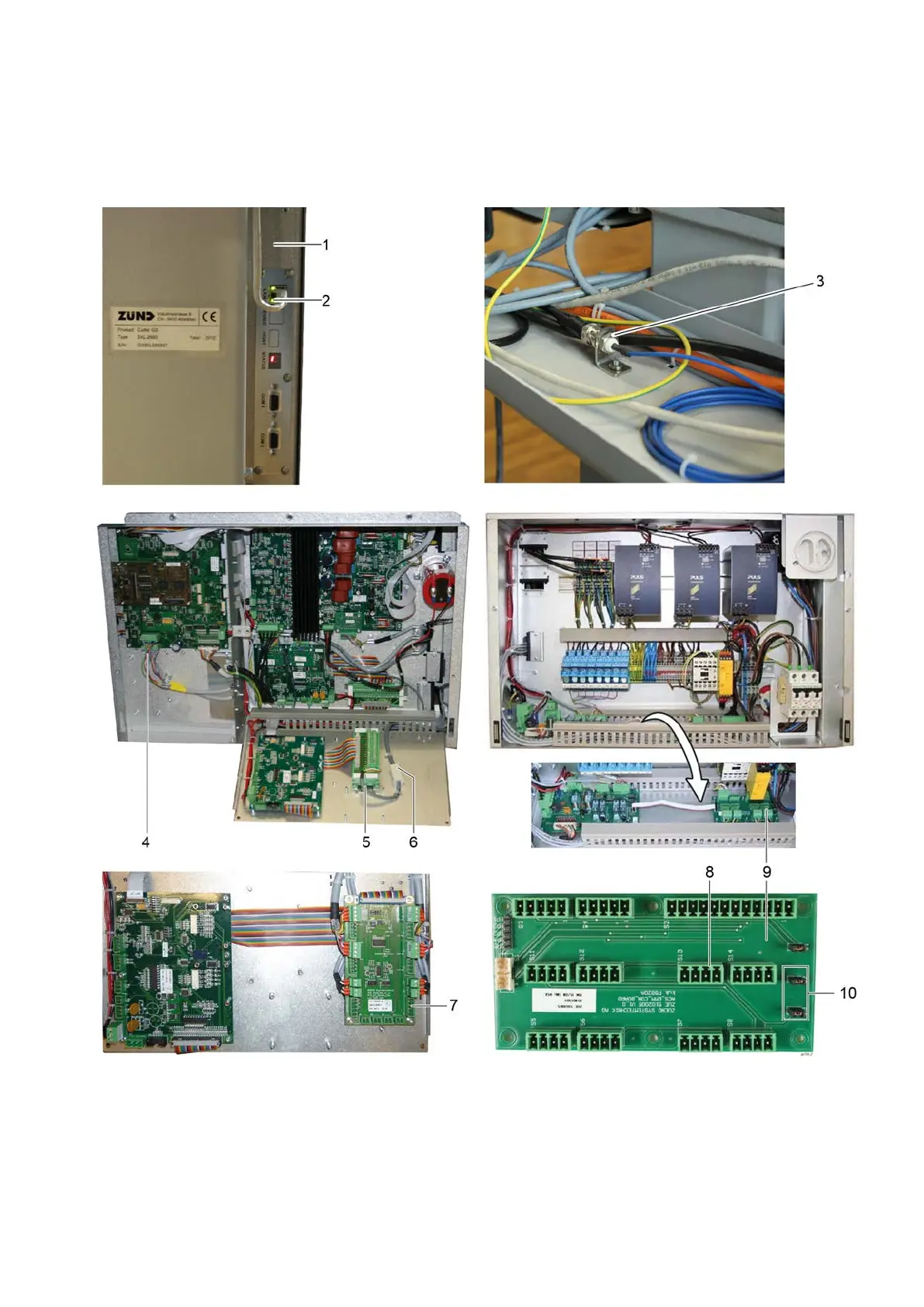

5.2 Connect cable to the cutter
The signal light is optional and must only be connected if it is present.
1 Electronics unit 6 Ferrite
2 LAN cable 7 Signal light cable (electronics unit,
ACS_IO_BOARD_ENA S8)
