Setting up the control panel/workstation
18

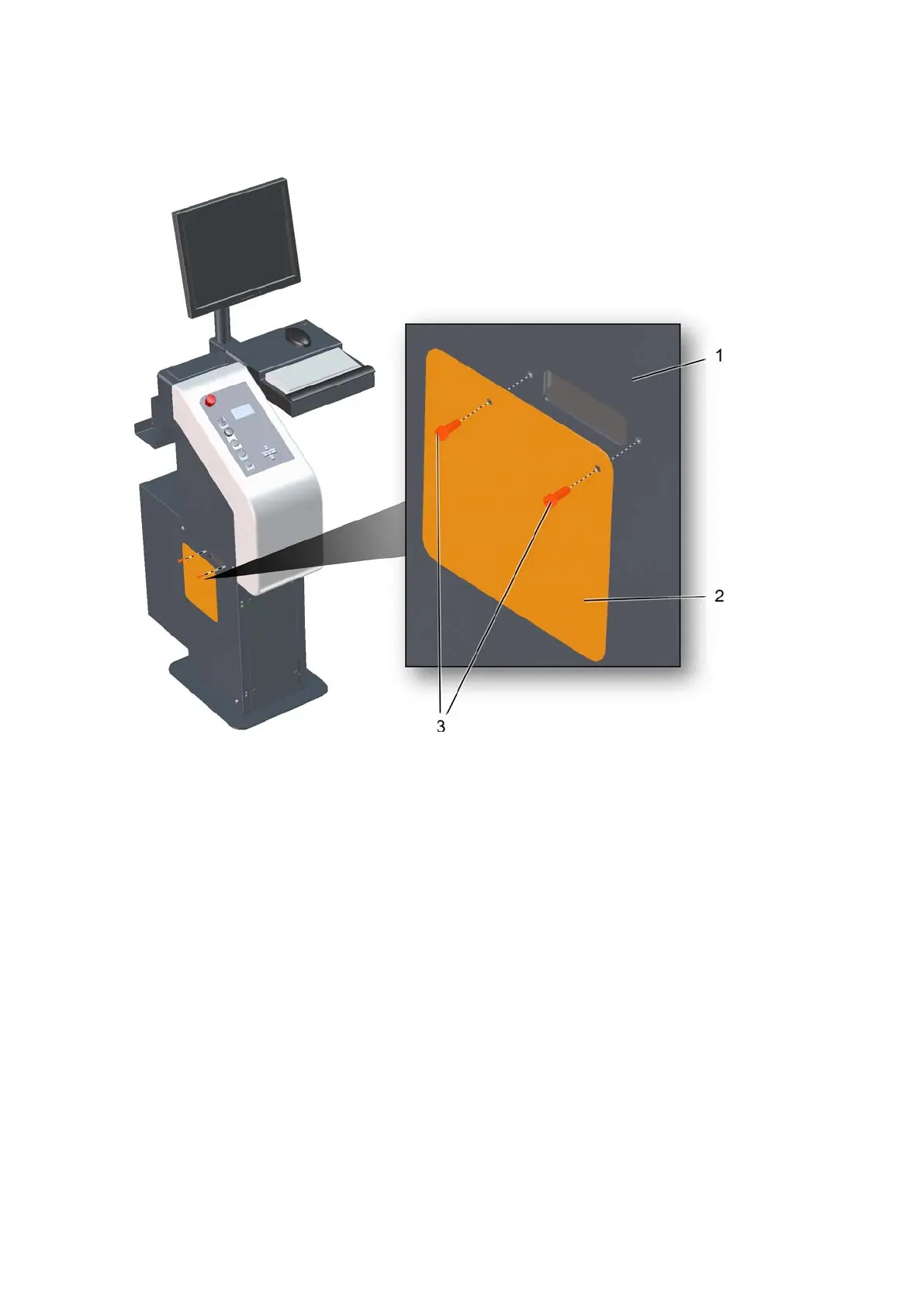

5.1.4 Mounting the control panel/workstation cover plate
1 Control panel/workstation 3 Screws (2x)
2 Cover plate
A Position the cover plate.
B Place and tighten both screws.
