Setting up the control panel/workstation
17
5.1.3 Remove control panel/workstation from the cutter
Caution:
Risk of injury from the workstation tipping over
The workstation can tip over if weight is applied to the surface area.
• Avoid putting weight on the workstation.

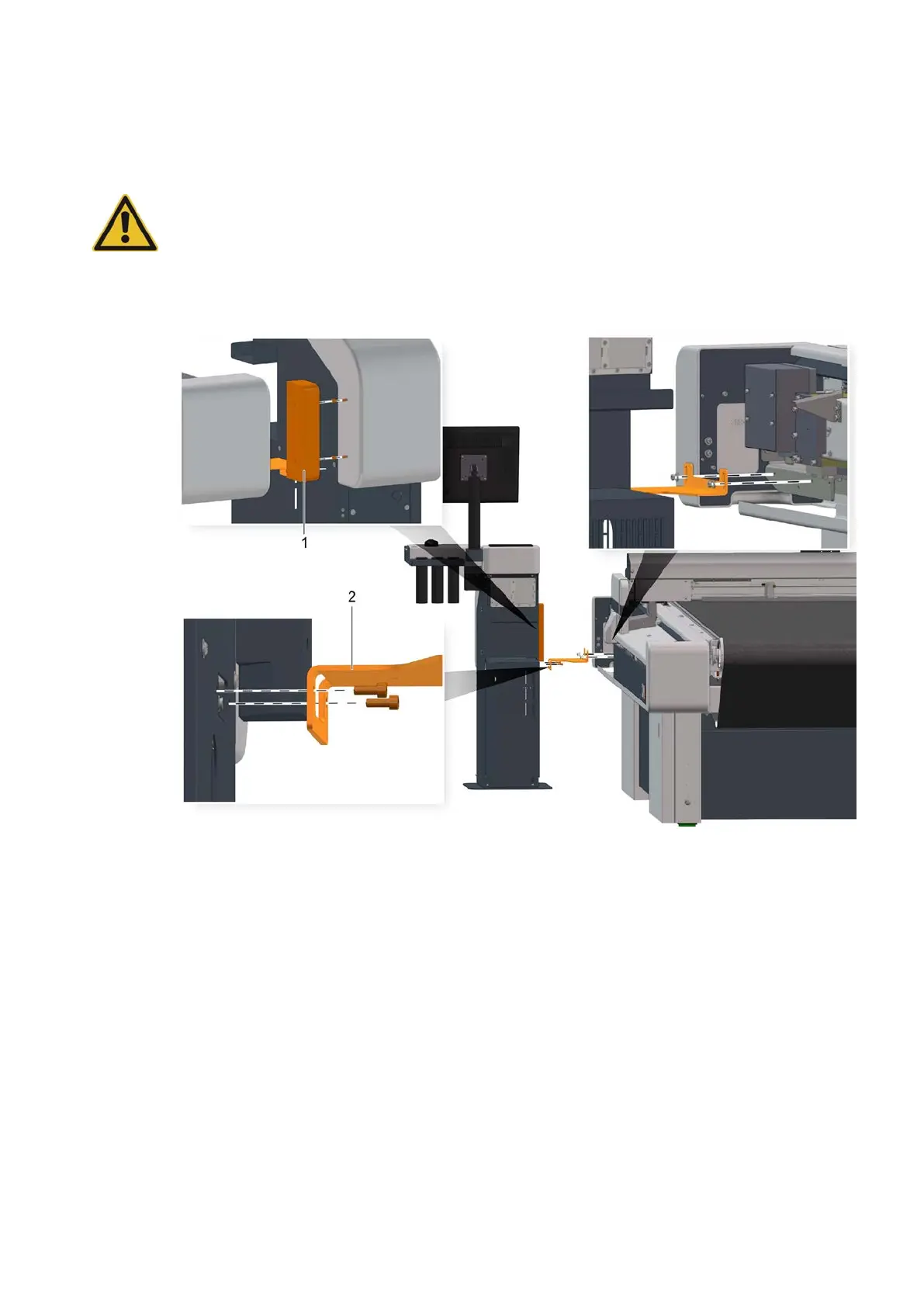

1 Connecting cover
2 Connecting plate
A Remove the covers from the front sides of the right side support.
B Unscrew the connecting plate from the cutter.
C Unscrew the connecting plate from the control panel/workstation.
D Unscrew the connecting cover from the control panel/workstation.
