Cutter without material transport
37
7 Cutter without material transport
7.1 Mounting the rear access guard
Tip:
The rear access guard is already mounted on the cutter with 120 mm clearance.
7.1.1 Replacing the front cover

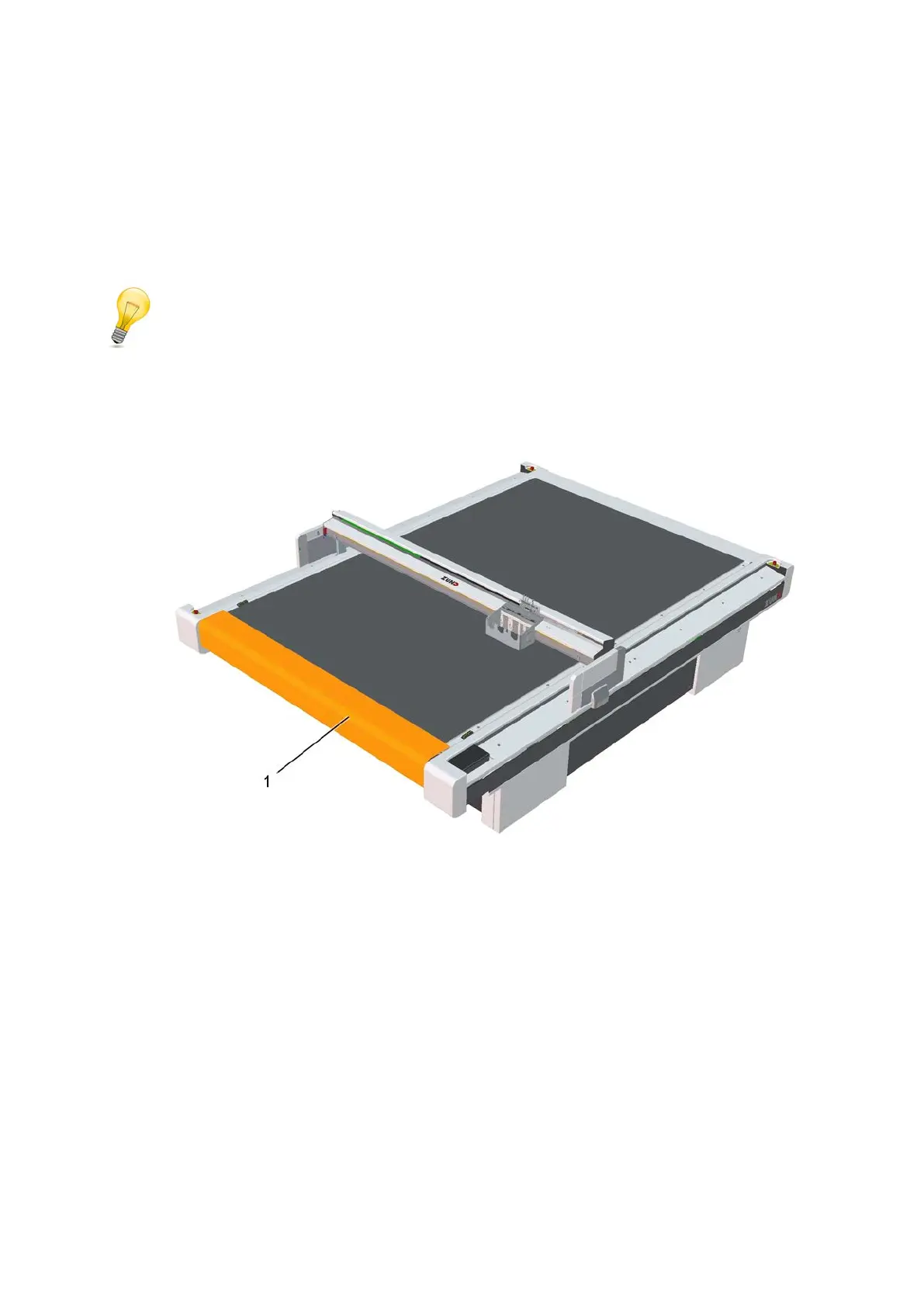

1 Front cover
A Remove the existing front cover.
B Mount and tighten the front cover supplied.
