7.3 Mounting the pillars onto the auxiliary brackets
Note:
Only pillars with light barrier transmitters/receivers are used for cutters 2XL-3200 and 3XL-3200
due to the large distances.

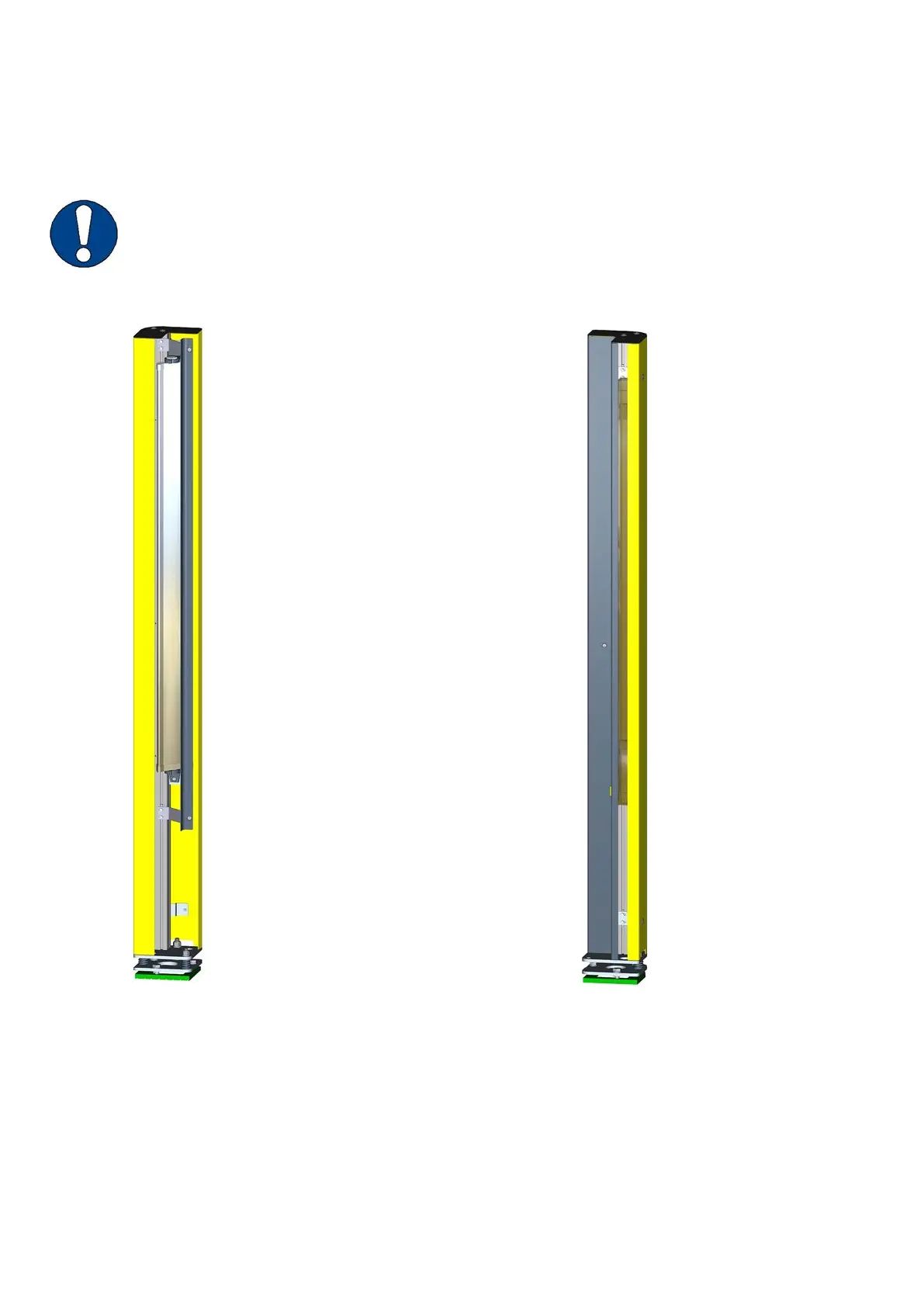

Pillar with mirror Pillar with light barrier transmitter/receiver
