Cutter without material transport
45
Note:
Observe prescribed tightening of the nuts.
• The thread must overhang at least 8 mm.
• The springs may not be completely compressed.

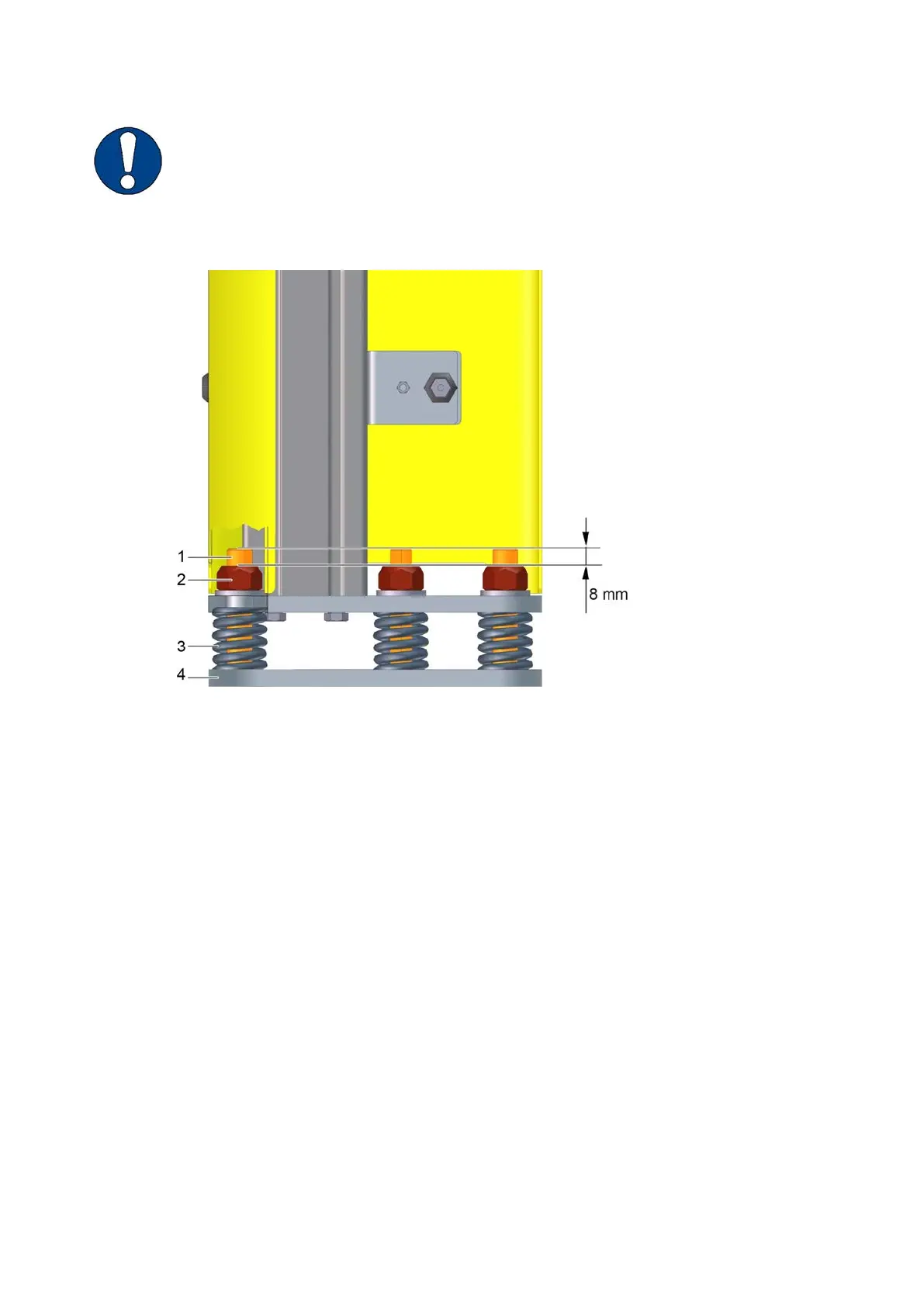

1 Screw 3 Spring
2 Nut 4 Base plate
A Position the pillar according to the labeling and place onto the screws of the base plate.
B Place the washers and nuts (3x).
C Tighten the nuts until at least 8 mm of the thread protrudes (3x).
D Remove the adhesive label (labeling) from the top of the pillar.
E Repeat the process on the other corners.
