Zünd G3 - Mounting the Material Hold-Down Roll

Cutter with material transport and CE
54
8.2 Mounting the material hold-down roll
8.2.1 Creating threaded holes for the material hold-down roll

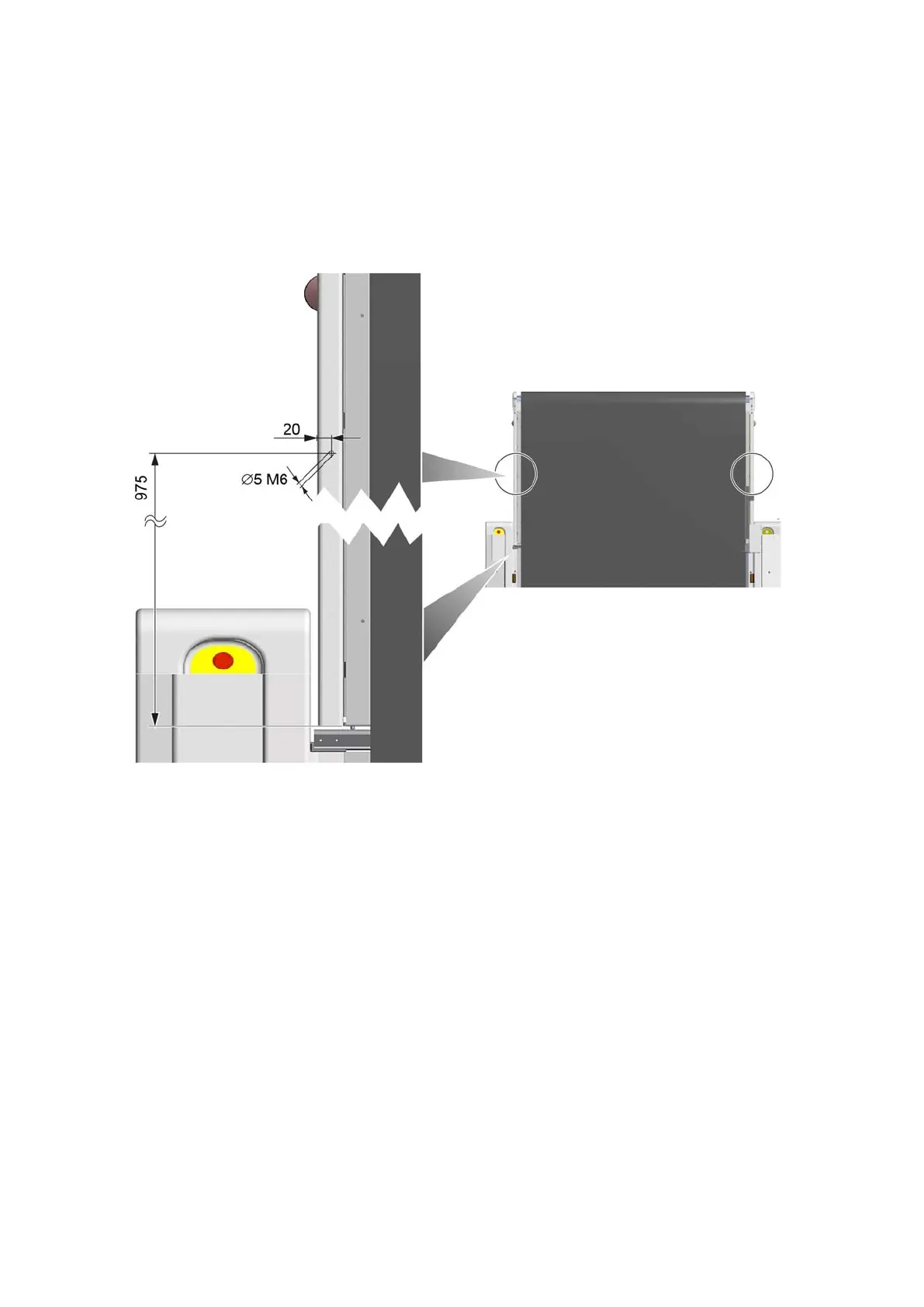

Cutter extension, rear
A Go to the rear CE.
B Mark the holes on the top side of the longitudinal pipes of the CE.
a) Measure 20 mm from the outer edge of the longitudinal pipe.
b) Measure 975 mm from the connecting edge of the longitudinal pipe.
C Drill the holes (Ø 5 mm).
D Cut the M6 threads.
E Vacuum the drill chips with a vacuum cleaner and carefully clean the area.
