Cutter with material transport and CE
53
8.1.2 Mounting the rear access guard

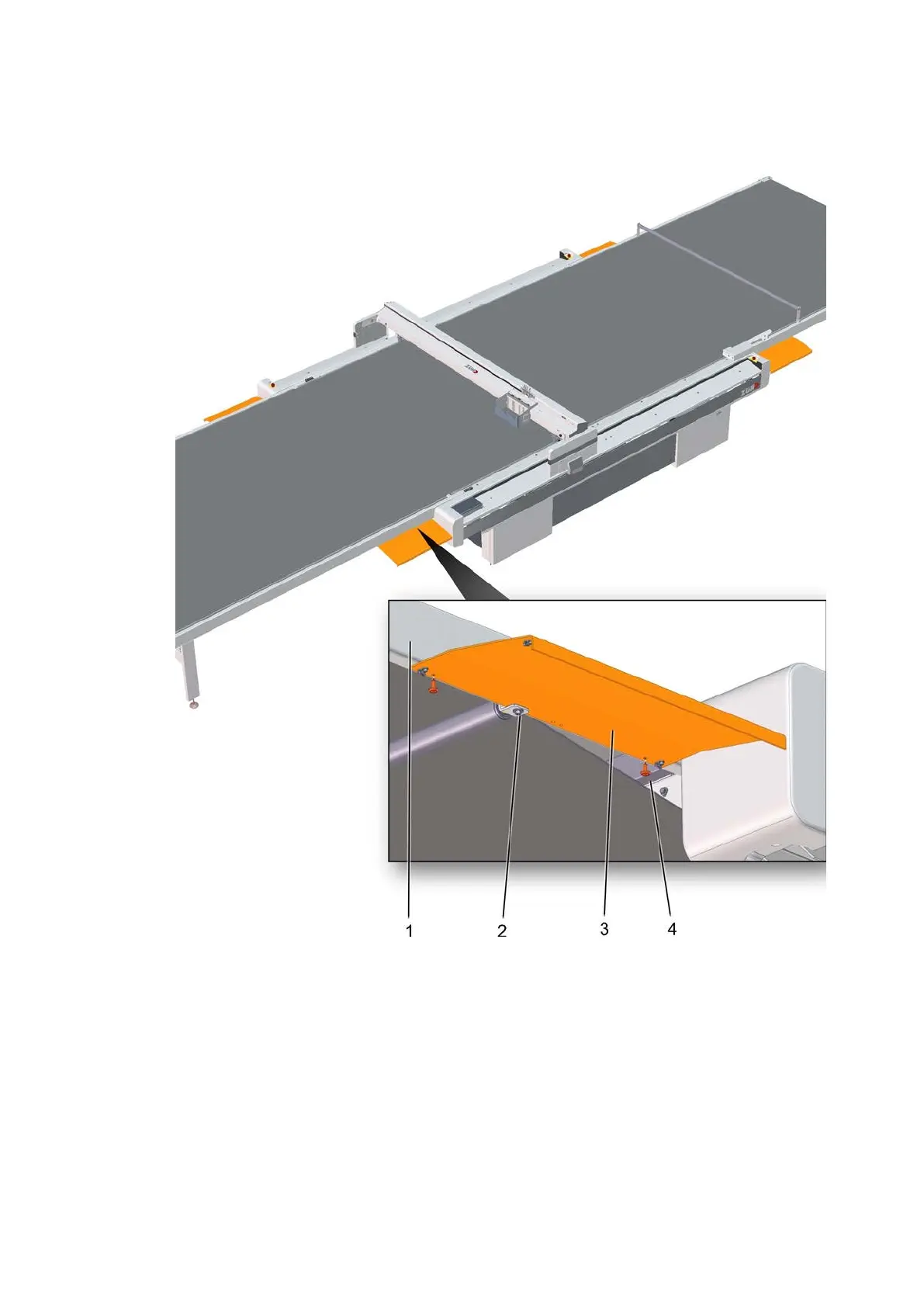

1 Cutter extension 3 Rear access guard
2 Support roller screw 4 Screws with washers (2x)
A Remove the screws from both sides of the support roller and set the support roller aside.
B Position the rear access guard on the bottom of the cutter extension.
C Insert and tighten both screws with washers.
D Repeat the process on the other side.
E Re-install the support roller.
