Zünd G3 - Page 55

Cutter with material transport and CE
55

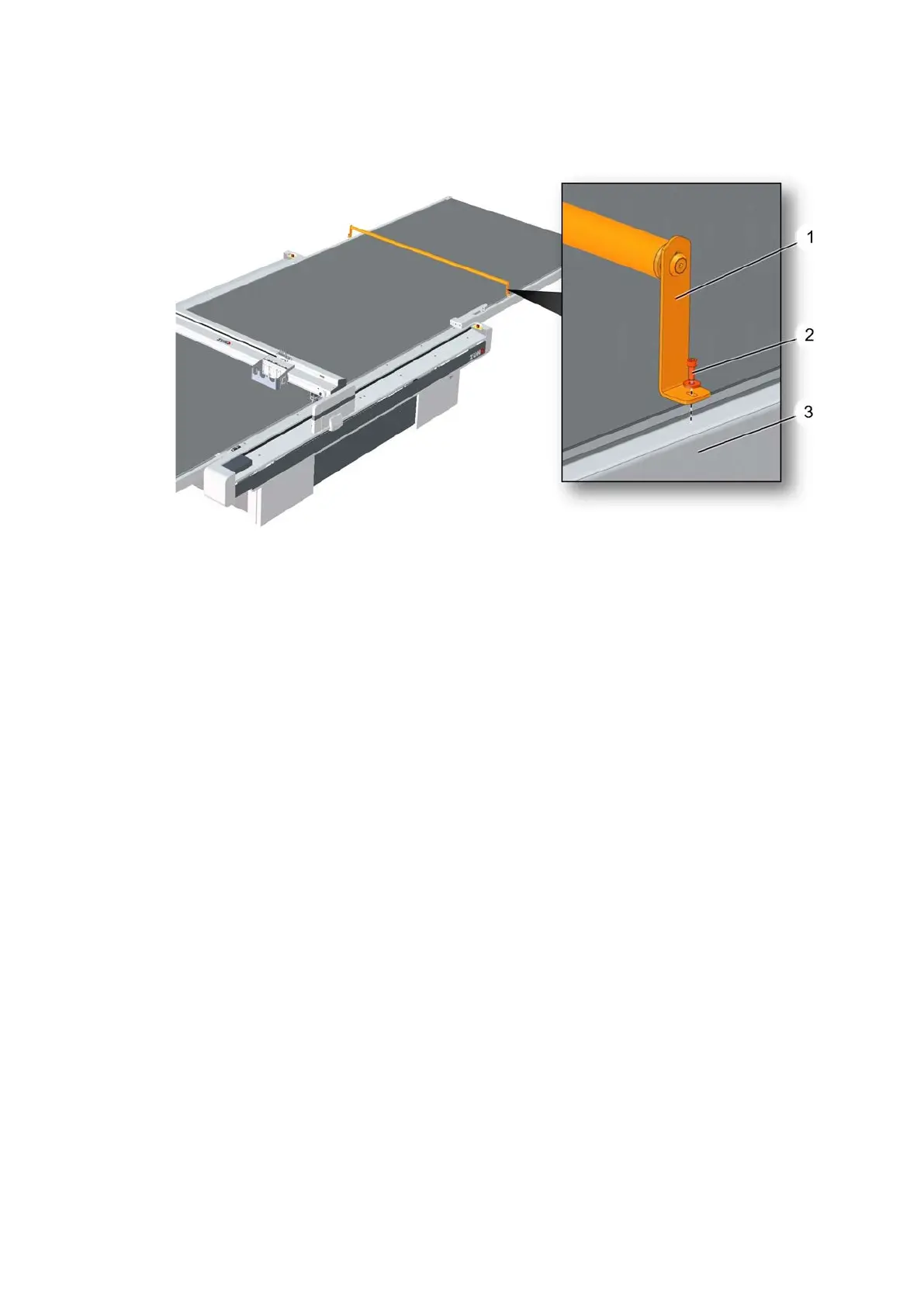

8.2.2 Mount material hold-down roll
1 Fixing bracket
2 Screw and washer
3 Cutter extension
A Position the material hold-down roll bracket on the cutter extension.
B Fix the fixing bracket with the washer and the screw.
C Repeat the process on the other side
D Tighten the screws.
