7.3.1 Placing the base frame onto the auxiliary brackets
Caution:
Risk of crushing - high cutter weight.
• Do not reach beneath the raised base.
• Use a tool to remove the leveling pad.
Tip:
A second person is needed for lifting to place the supports and position the auxiliary brackets.

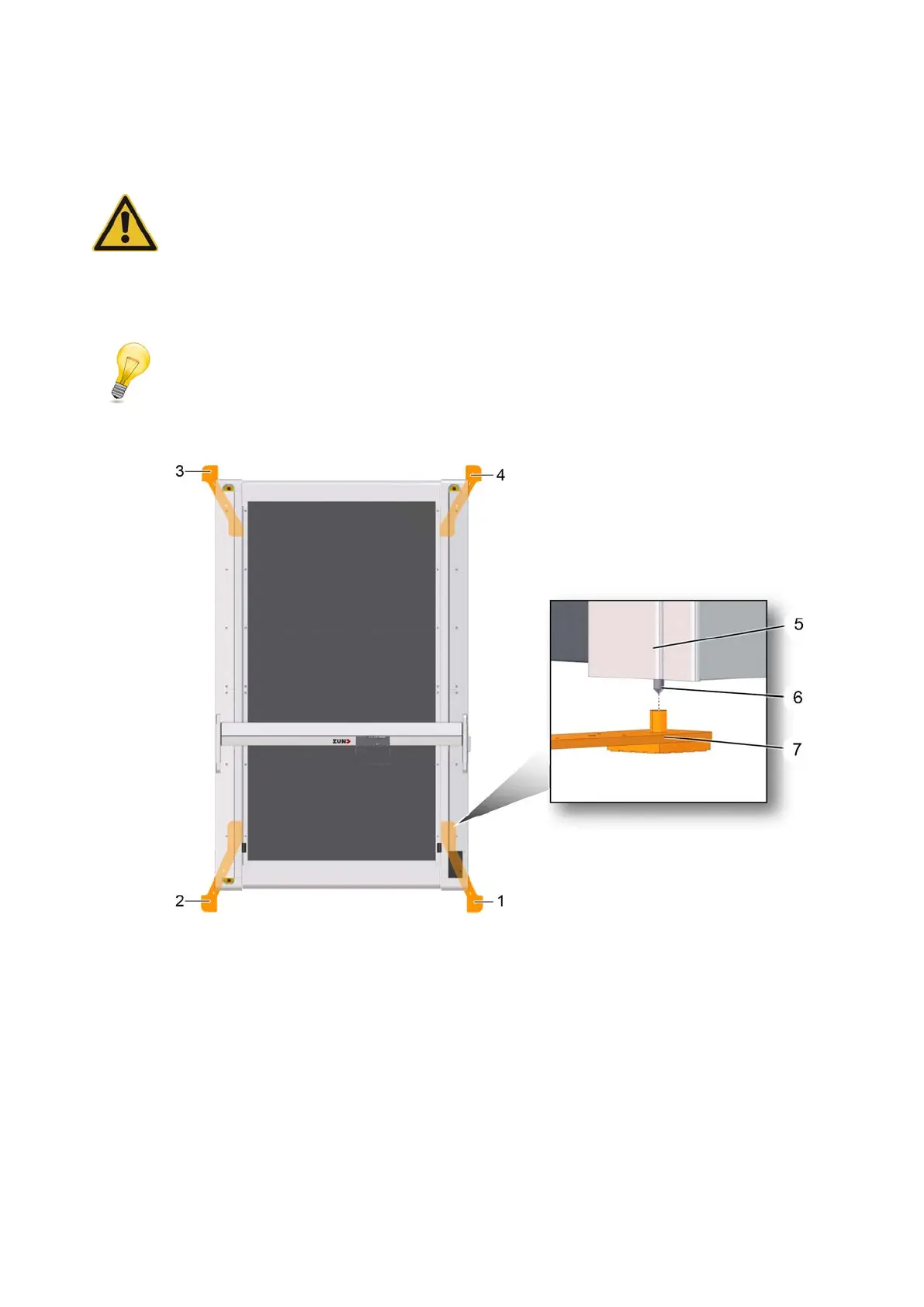

1 Right front of auxiliary bracket 5 Cutter base
2 Left front of auxiliary bracket 6 Setscrew with tip
3 Right rear of auxiliary bracket 7 Auxiliary bracket with sleeve
4 Left rear of auxiliary bracket
A Slightly lift the corner of the cutter and remove the leveling pad beneath it.
B Position the auxiliary bracket.
C Slowly lower the base frame. Ensure that the setscrew from the base goes into the sleeve.
D Repeat the process on the other three corners.
